Home > Products > Hot Sale Silent Diesel Generator 300KW Competitive Price

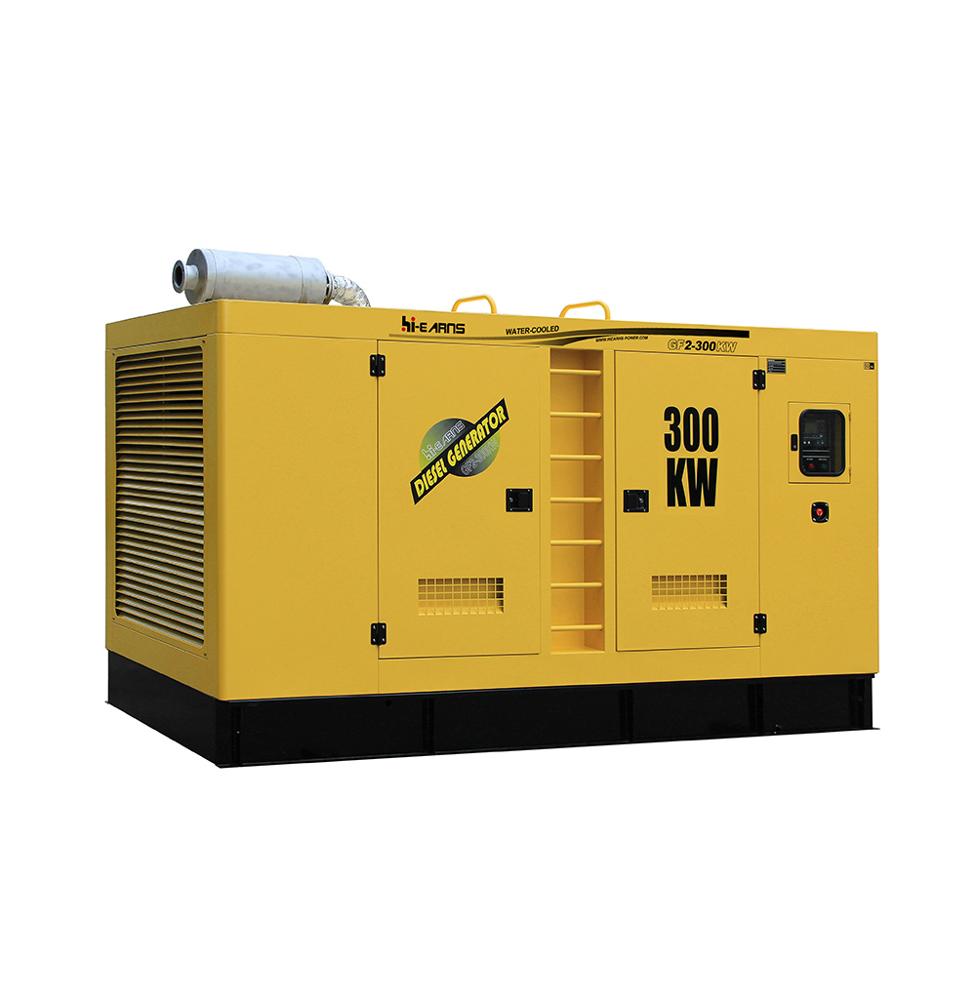

Hot Sale Silent Diesel Generator 300KW Competitive Price
Click on the image to view the original image
Product: views:7Hot Sale Silent Diesel Generator 300KW Competitive Price
Branch: Hi-earns
Type: Silent/super silent/open
Size: 380X135X198 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-300KW
Rated Voltage:
220/380, 230/400, 240/415V
Rated Current:
570A
Speed:
1500rpm/1800rpm
Frequency:
300KW
Type:
Silent/super silent/open
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Panel:
Common/digital/ATS
Design:
New
Noise:
low
Power factor:
0.8
Phase:
three
Engine type:
Four cylinder four stroke
Price:
More competitive
Warranty:
1 Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
380X135X198 cm
Single gross weight:
1450.0 kg
Package Type:
Packaging details:Bubble wrap with plastic film.
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 12 - 10>10
Est. Time(days)2020To be negotiated

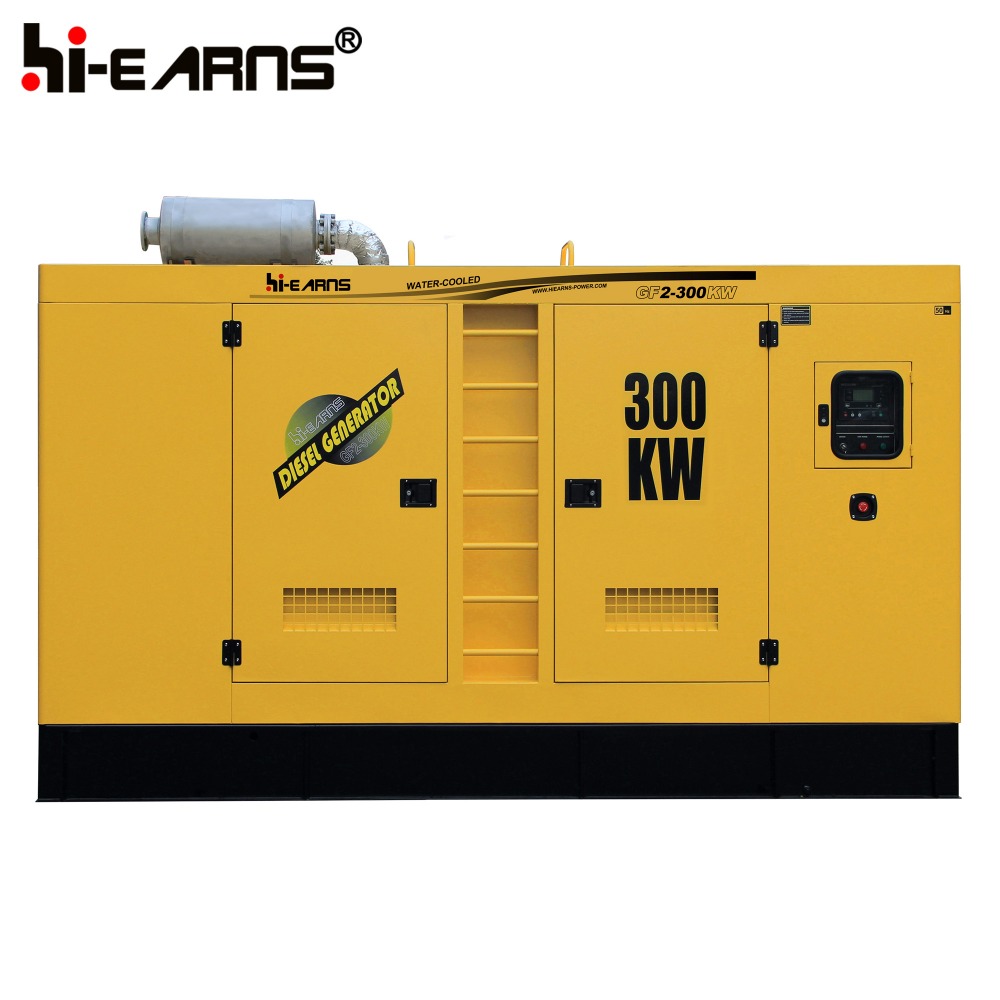

GF2-300KW silent three phase water cooled diesel generator

MODEL GF2- 300KW
Standby Power (50HZ )330KW / 412KVA
Prime Power(50HZ )300KW / 375KVA
ENGINE DATA
Engine Type NTAA855-G7A, 4-cycle
Air Intake System Turbo,Air/Air Cooling
Fuel System PT type fuel pump
Fuel Consumption (g/kw.h)206
Cylinder Arrangement 6 in line
Displacement 14L
Bore×Stroke 140×152(mm)
Compression Ratio 14.0:1
Rated RPM 1500rpm
Max.Standby Power at Rated RPM                                377KW / 513HP
Governor Type  Electronic
Max Water Temperature104℃
ALTERNATOR DATA
General Data
Compliance with  GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards.
Alternator Data
Number of Phase 3
Connecting Type3 Phase and 4 Wires,"Y" type connecting
Number of Bearing 1
 Power Factor  0.8 Lag
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless,self-exciting
Insulation Class,Temperature Rise                                     H/H
Telephone Influence Factor(TIF) <50
THF <2%
Voltage Regulation,Steady State                   ≤±1%
Alternator Capacity 400KVA
Alternator Efficiencies 93%
Air Cooling Flow 0.8m3/s
Dimension & Weight
Open Type Soundproof Type
Overall Size :2.9(m)×1(m)×1.75(m)Overall Size :3.8(m)×1.35(m)×1.98(m)
Weight :2500kgWeight:3100kg
DIGITAL PANEL
DIGITAL PANEL+ATS



Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.



Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this  reliability

is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers" requirements .Our engineer

develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory and our products are 100% ex- factory

pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE and ISO

6.Our logo or OEM



Warranty and Service

Warranty

Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.



Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts

for free under the condition of this spare parts are not intentionally damaged.







Automatic Workshop

 Modern workshops have advanced production lines and professional knowledge of assembly.

 Flow card to record each details carefully.
