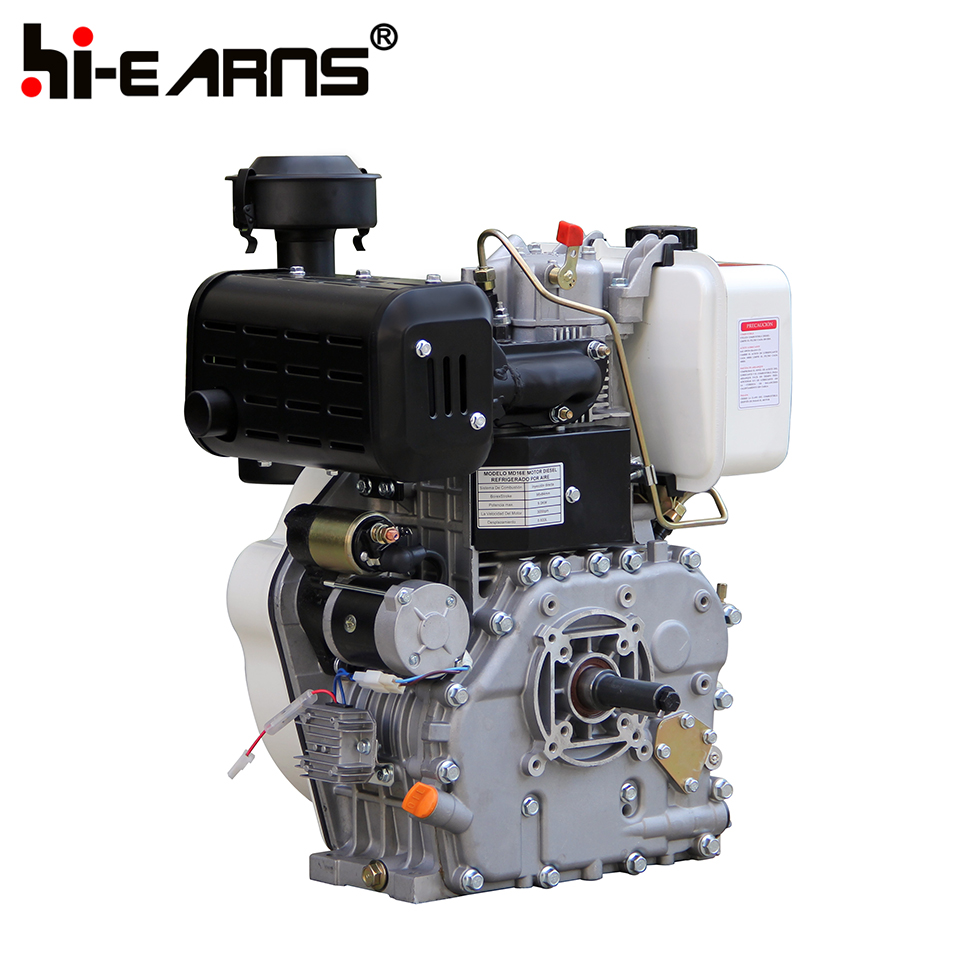

16hp 9.5KW single cylinder 25mm keyway shaft diesel engine with 5.5L fuel tank pump nozzle

Click on the image to view the original image

Product：	views：616hp 9.5KW single cylinder 25mm keyway shaft diesel engine with 5.5L fuel tank pump nozzle
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:33

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining

Condition:: New

Stroke:: 4 Stroke

Cylinder:: Single Cylinder

Cold Style:: Air-cooled

Start:: Electric start

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Dimension(L*W*H):: 520X510X590 mm

Weight:: 61kg

Certification:: CE/ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Air filter:: Oil bath

Noise:: Low level

Fuel tank:: Best quality

Fuel pump:: Best quality

Displacement:: 633cc

Engine speed:: 3000rpm

Starting system:: Electric start

Fuel tank capacity:: 5.5L

Shaft types:: Keyway shaft

Supply Ability

Supply Ability:: 500 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: 1.Packing way: Carton with plastic film.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 15-25days.

Port: Shanghai or other Chinese port

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 10	11 - 50	>50
Est. Time(days)	7	15	To be negotiated

Related Products

Air-cooled diesel engine 198FAE
1) Manufacturer
2) Lower Fuel consumption
3) Competitive prices
4) Perfect after-sales service

HR198FAE 16hp 3000rpm keyway shaft electric diesel engine

Model	HR198FAE
Bore×stroke(mm)	98×84
Displacement(cc)	633
Engine speed(rpm)	3000	3600
Max.output(kw)	9.9	10.5
Continuous output(kw )	9.0	9.5
Power output	Crankshaft
Starting system	Electric
Fuel tank capacity(L)	5.5
Rube oil capacity(L)	1.65
Dimension(mm)	520×510×590
Net weight(kg)	61

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
