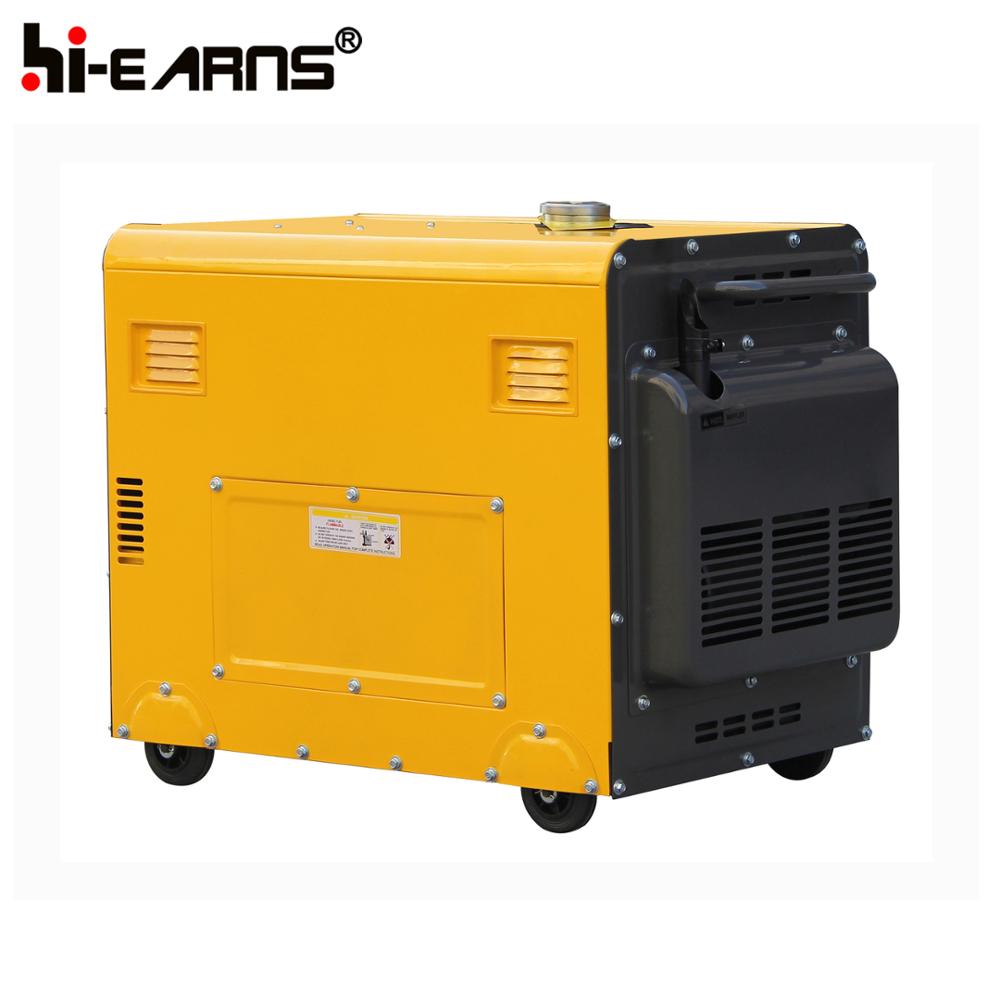

2KW 60HZ Air-cooled single cylinder used diesel welder generator

Click on the image to view the original image

Product：	views：62KW 60HZ Air-cooled single cylinder used diesel welder generator
Branch：	Hi-earns
Type：	Silent and electric
Size：	95X56X71 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:33

Product Details

Overview

Quick Details

Lead Time:

Quantity(Piece)	1 - 1	2 - 10	>10
Est. Time(days)	10	20	To be negotiated

DG7500SE 5.5KW silent air cooled diesel generator

GENERATOR	Model	DG6500SEW
	Frequency(HZ)	50	60
	Rated.AC voltage(V)	230	220
	Rated current(A)	7.8	9.1
	Rated output(KVA)	1.8	2.0
	Rated speed(rpm)	3000	3600
WELDER	Welding no-load voltage(V)	55-65
	Working voltage(V)	26-30
	Rated current (A)	160
	Range of current(A)	0-180
	Welding efficiency	60%
	Power factor (cosΦ )	1
	Phase	1
	Noise level(at 7m)	68-72db
ENGINE	Engine model	HR186FA
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	86×72
	Displacement capacity(cc)	418cc
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
DIMENSIONS	Dimension(L× W× H)(mm)	950× 520×760
	Net weight(kg)	160
	20FT	72
