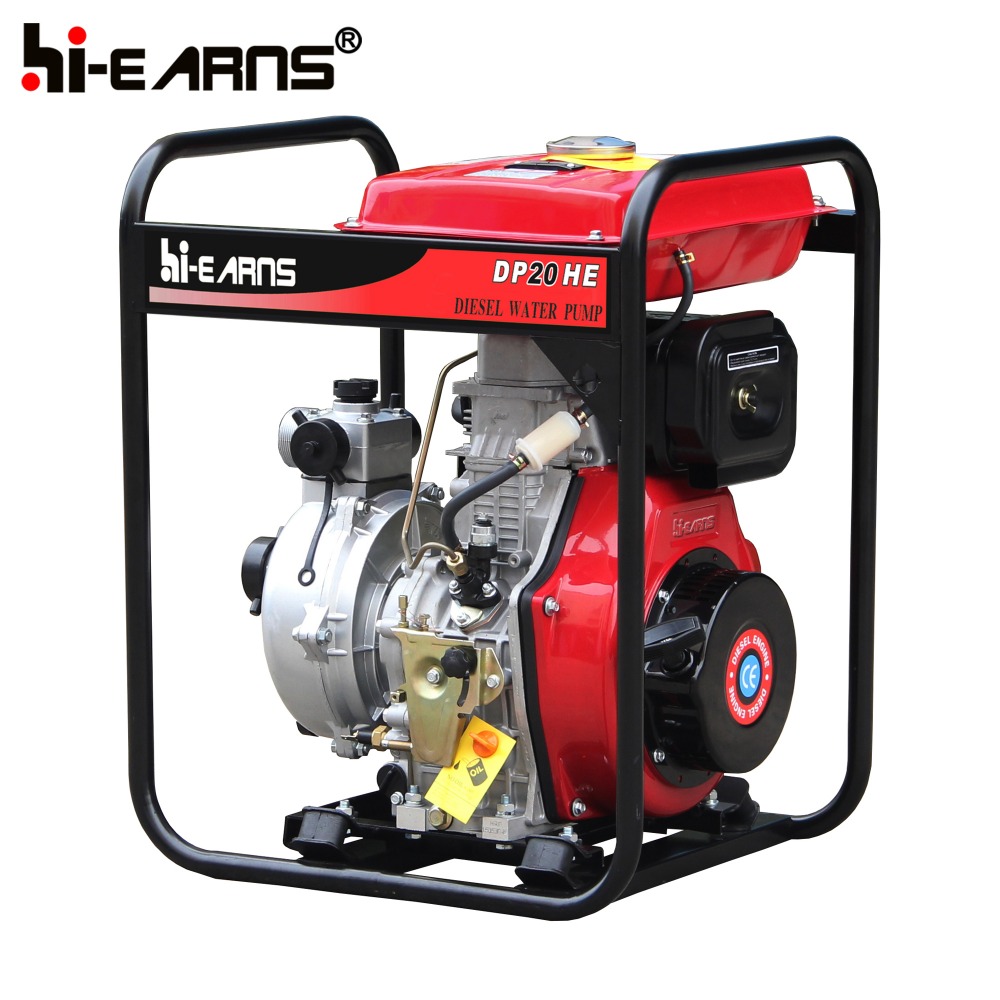

DP20HE air cooled electric diesel water pump
WATER PUMP | Model | DP20HE |
Suction,discharge port diameter[mm(in)] | 50(2") | |
Cont.head(m) | 55 | |
Self-priming time(s/4m) | 30 | |
Max suction head(m) | 8 | |
Cont.capacity(m³/hr) | 23 | |
ENGINE | Engine model | HR186FA |
Speed(rpm) | 3600 | |
Fuel consumption(g/kw.h) | 285 | |
Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
Displacement(cc) | 418 | |
Bore*stroke(mm) | 86*72 | |
Starting system | Recoil or Electric | |
Fuel tank capacity(L) | 12.5 | |
STANDARD FEATURES | Oil alert | yes |
Connector of infall,Connecto of outfall | yes | |
Filter | yes | |
Seal ring | yes | |
Hoop | yes | |
DIMENSIONS | Dimension(L× W× H)(mm) | 650×490×730 |
Net weight(kg) | 75 | |
20FT | 108 |
