- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG7000SE-N
- Rated Voltage:
- 220/230/240V
- Rated Current:
- 21A
- Speed:
- 3000rmp/3600rmp
- Frequency:
- 50/60HZ
- Product Name:
- 5KWdiesel generator
- Type:
- Super Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel
- Design:
- New
- Noise:
- 68-72dB
- Power factor:
- 1
- Phase:
- Single
- Engine type:
- HR186FA
- Supply Ability:
- 100 Piece/Pieces per Day
- Packaging Details
- Carton with plastic film
- Port
- FOB ShangHai

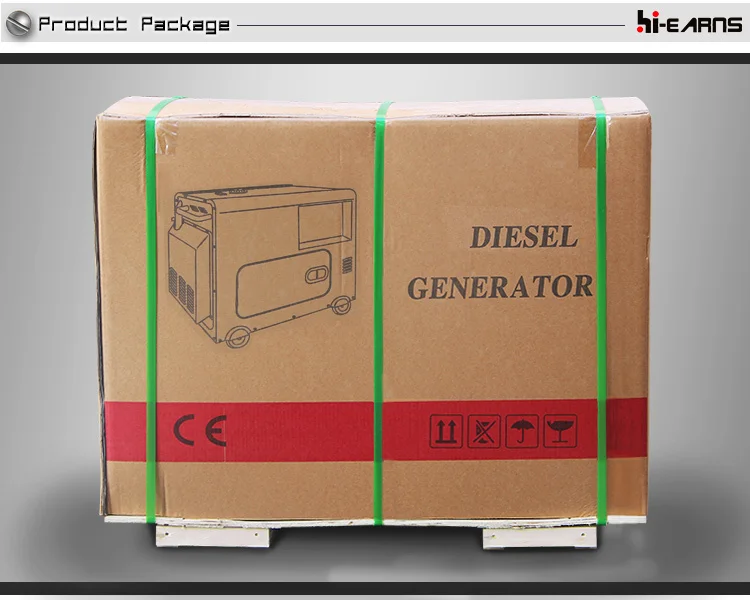

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 15 >15 Est. Time(days) 20 To be negotiated

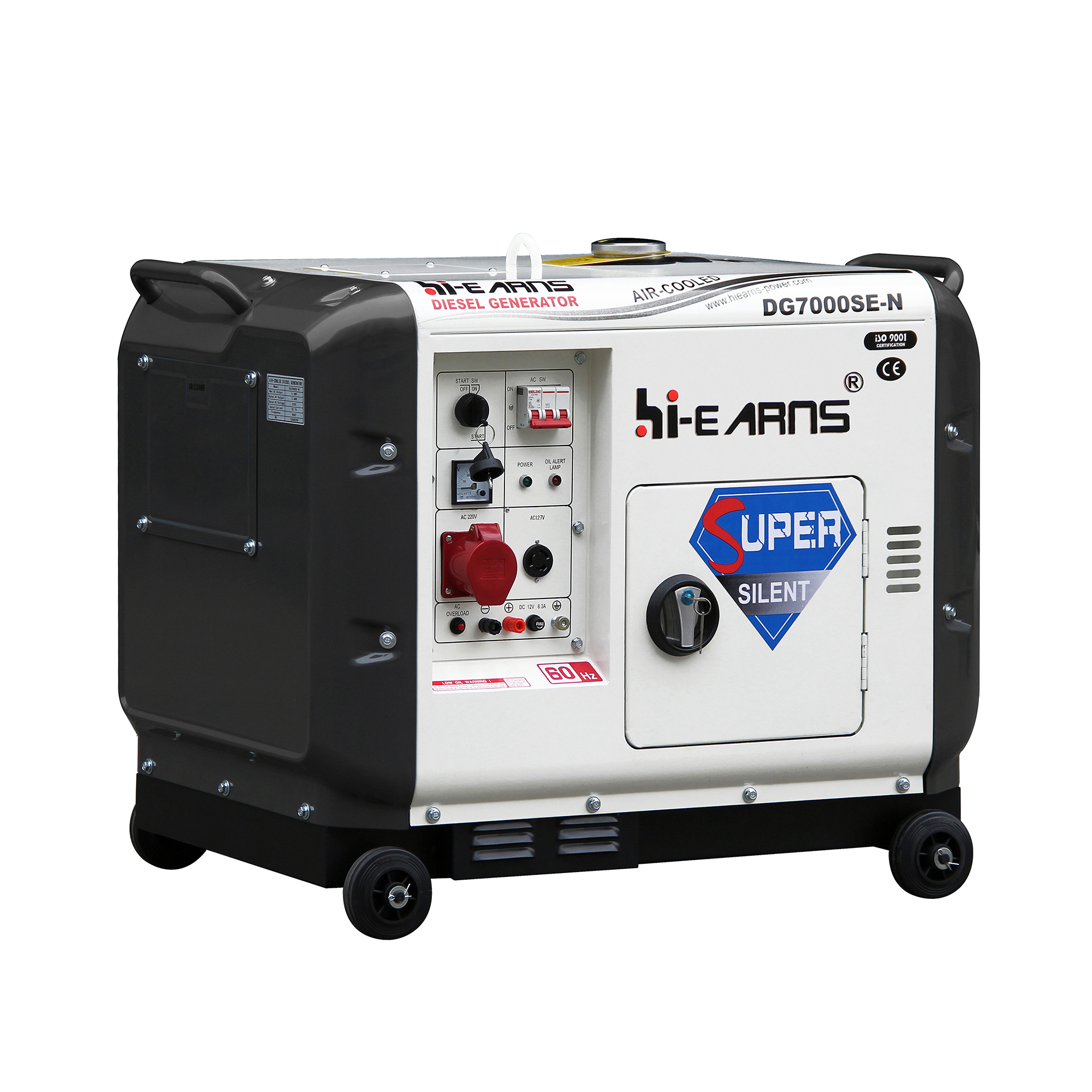

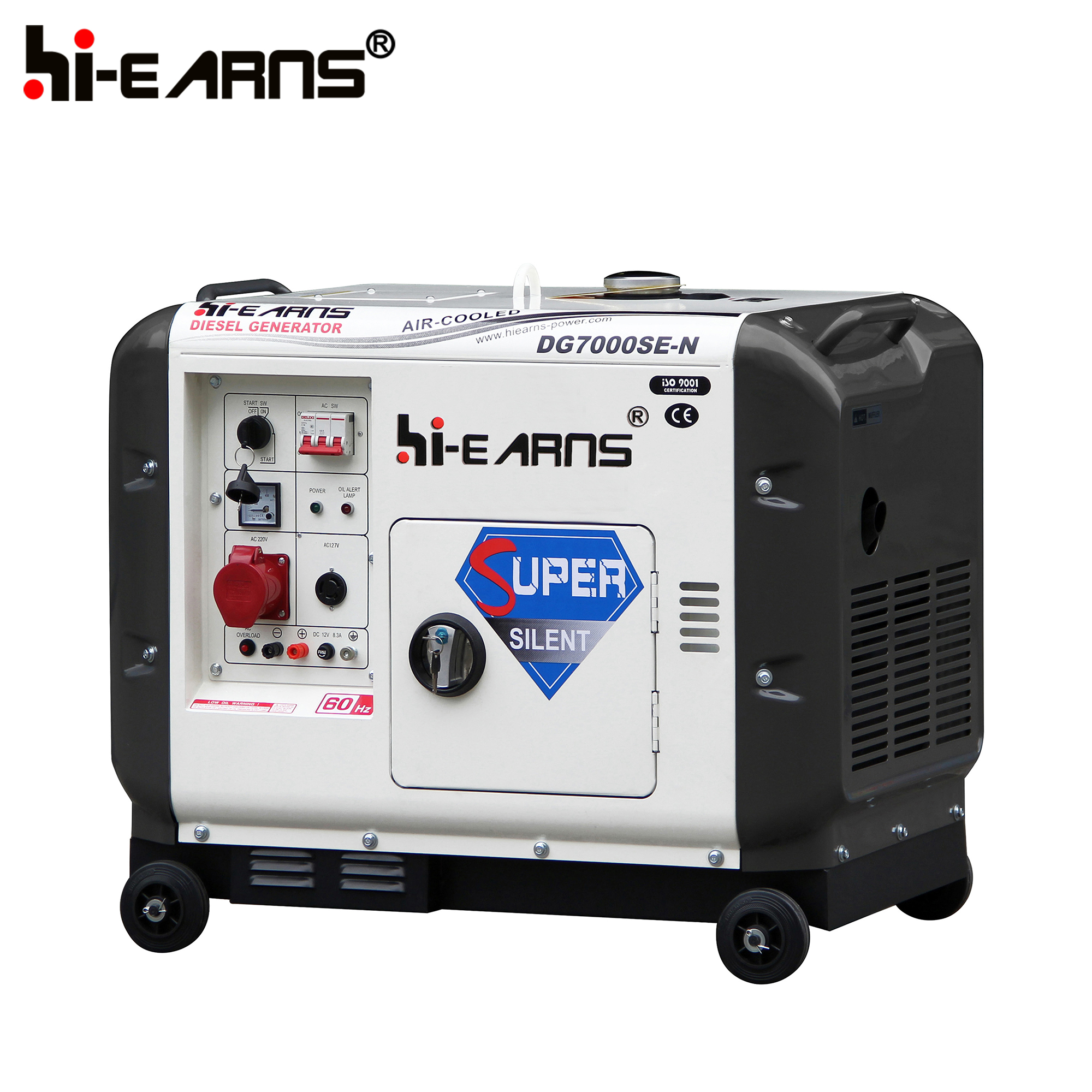

5KW Super silent air cooled portable diesel generator
| GENERATOR | Model | DG7000SE-N | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(KVA) | 5 | 5.5 | |
| Rated output(KVA) | 4.6 | 5 | |
| Rated. AC voltage(v) | 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase / three phase | ||
| Alternator type | self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 88×570× 740 | |
| Net weight(kg) | 145 | ||
| 20FT | 63 | ||
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
