Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG3500SE3
- Rated Voltage:
- 220/380,230/400V
- Rated Current:
- 6A
- Speed:
- 3000rmp
- Frequency:
- 50HZ/60HZ
- Product Name:
- 3W diesel generator
- Plug:
- South Africa socket
- panel:
- common panel
- Engine model:
- 178F
- Cylinder number:
- 1
- Generator Model:
- DG3500SE3
- Phase:
- 3
- Color:
- Optional
- Warranty:
- 1
- Certificate:
- ISO/CE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 95X56X76 cm
- Single gross weight:
- 135.0 kg
- Package Type:
- Carton with plastic film.

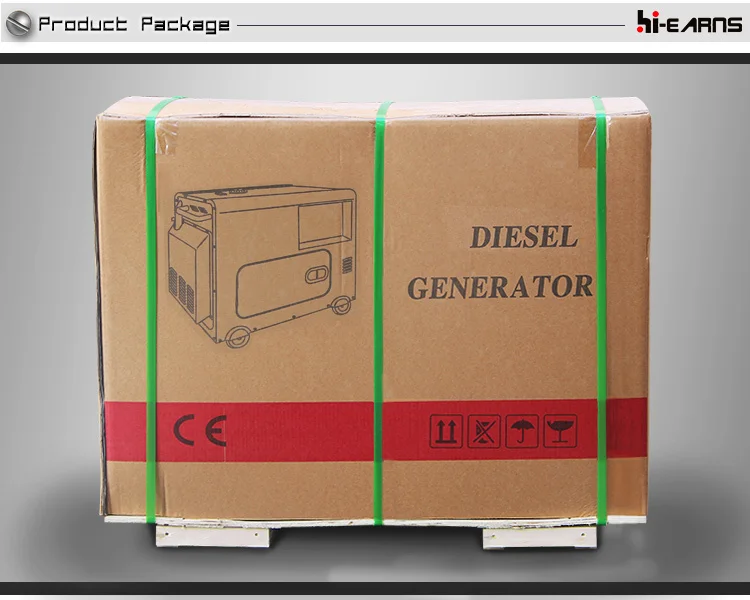

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 15 25 To be negotiated
Related Products

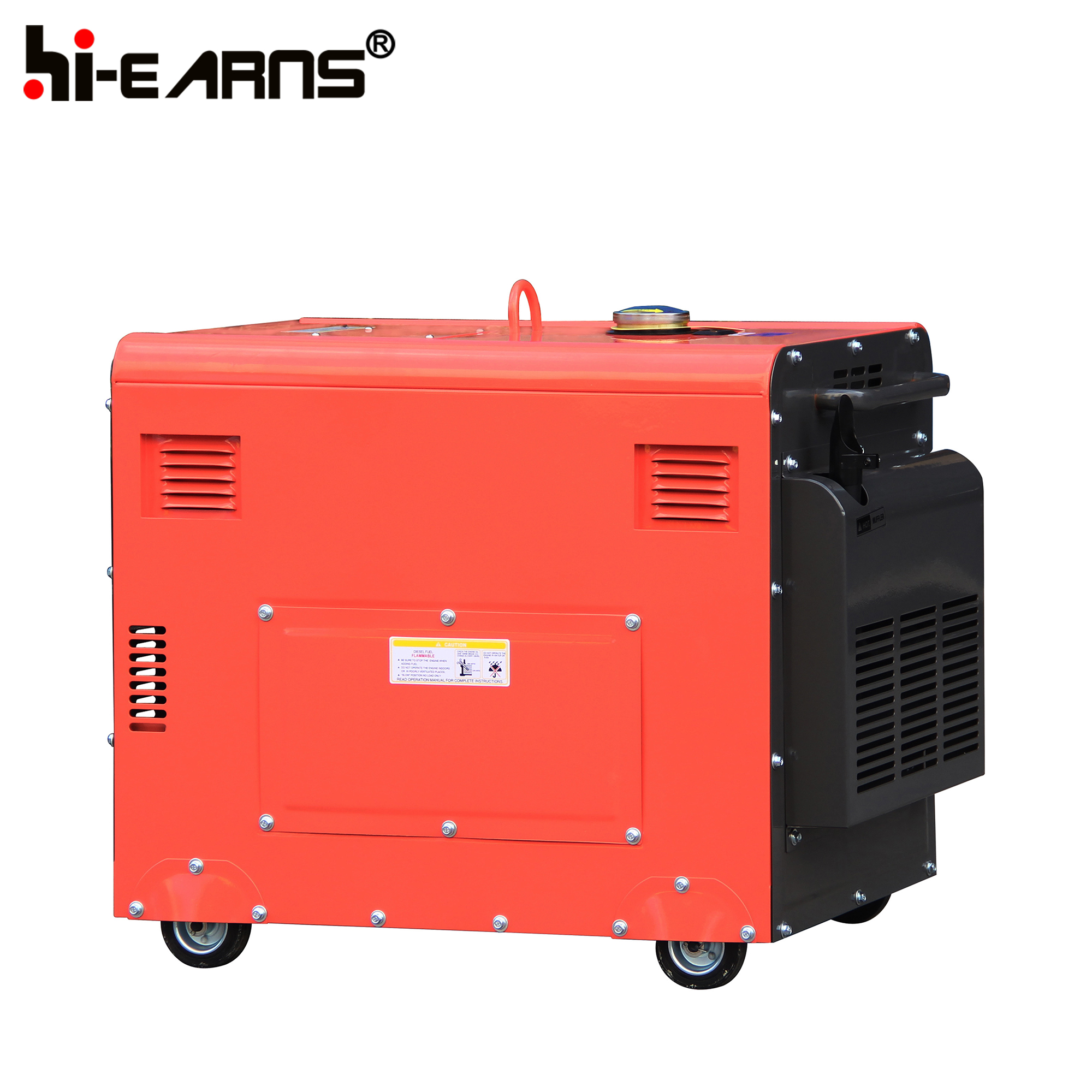

3W three phase silent protable diesel generator
| GENERATOR | Model | DG3500SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3.0 | 3.3 | |
| Rated output(kw) | 2.8 | 3.0 | |
| Rated. AC voltage(v) | 220/380,230/400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited, 2-pole, three phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 13 | 11.8 | |
| ENGINE | Model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78× 62 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | yes | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 760 | |
| Net weight(kg) | 125 | ||
| 20FT | 72 | ||
Silent air-cooled DG
