Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Model Number:
- GF2-30KVA
- Rated Power:
- 24KW
- Output Type:
- AC Three Phase
- Rated Voltage:
- 416/240
- Rated Current:
- 41A
- Speed:
- 1800rpm
- Frequency:
- 60HZ
- Product Name:
- EPA diesel Genertor
- Model:
- GF2-30KVA
- Alternator:
- Stamford copy brushless alternator
- Engine model:
- FAWDE 4DW93-45DT
- Type:
- Super silent
- Certificate:
- CE/ISO9001/EPA
- Color:
- Customers' Requirement
- Warranty:
- 1 Year
- Controller:
- Smartgen
- Control panel:
- Digital panel
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 210X97X128 cm
- Single gross weight:
- 985.0 kg
- Package Type:
- iron frame or bubble paper with stretch film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated

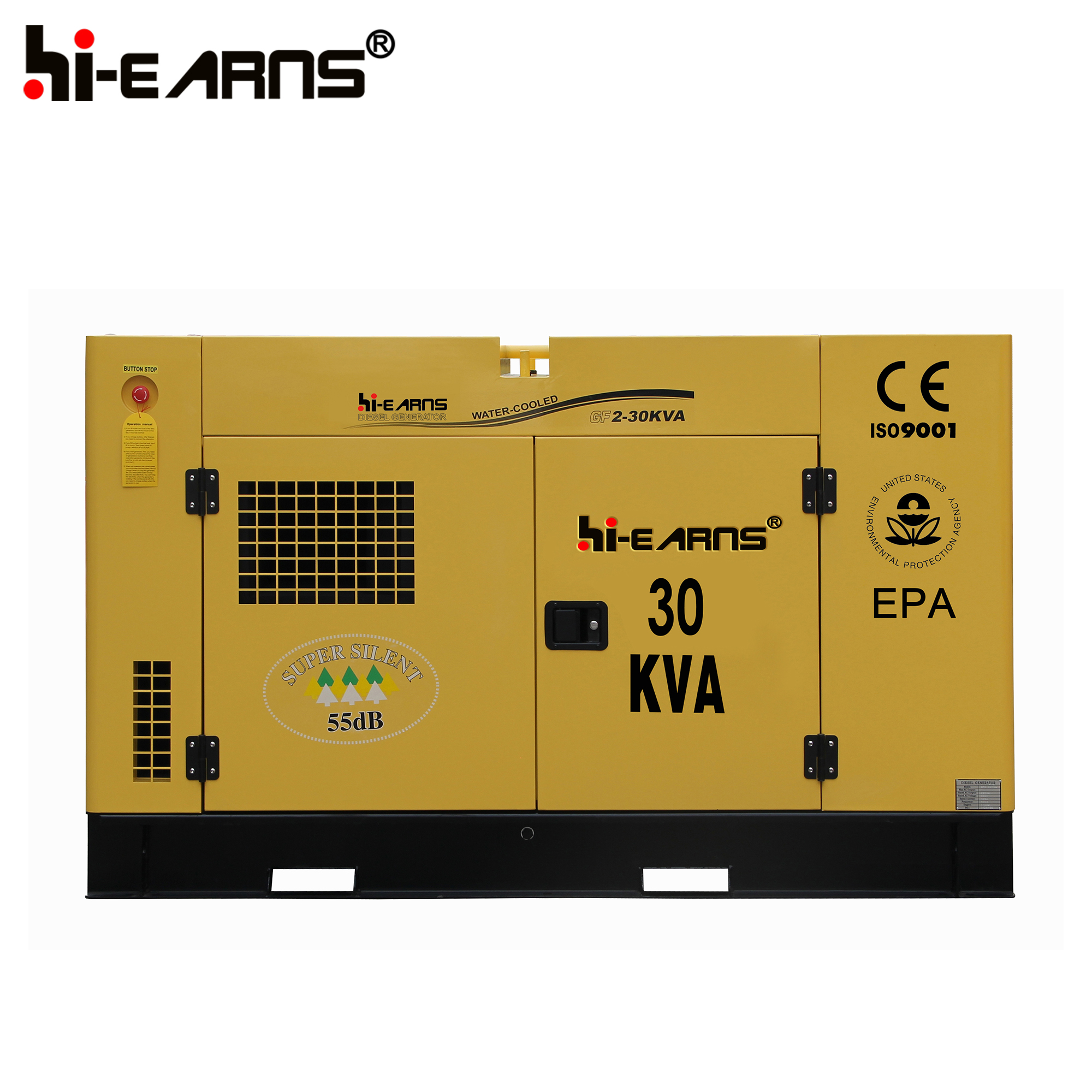

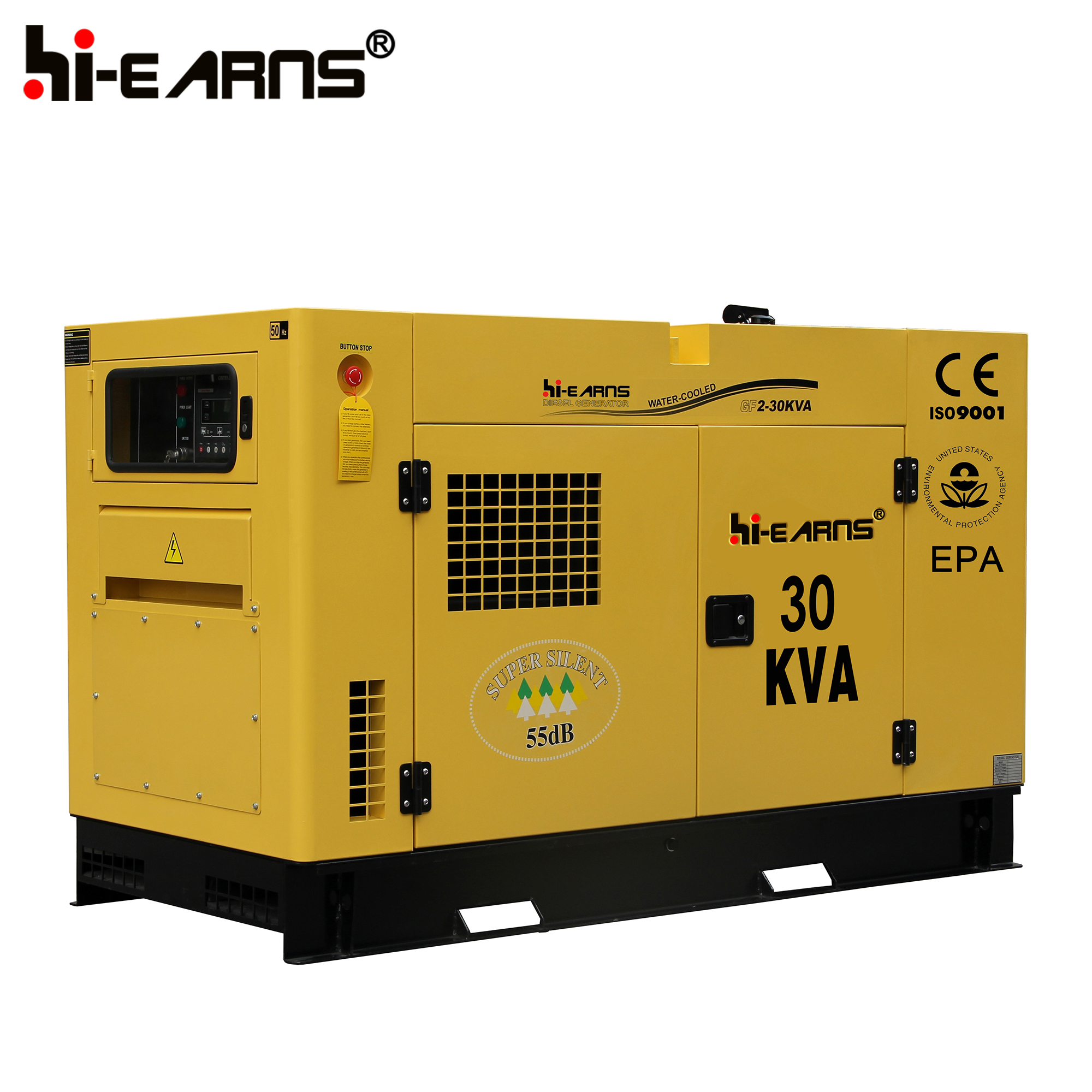

24KW/30KVA super silent FAWDE EPA engine water cooled diesel generator
| ENGINE DATA | |||||||
| Engine Type | FAWDE Engine 4DW93-45DT | ||||||
| Type | Direct line four cylinder ,four stroke | ||||||
| Working System | Pressurize,intercooling | ||||||
| Cooling System | Water-cooled | ||||||
| Bore(mm) | 90 | ||||||
| Stroke(mm) | 100 | ||||||
| Compression Ratio: | 17 | ||||||
| Displacement (L) | 2.54 | ||||||
| Supply System | Electronically controlled common rail+EGR | ||||||
| After treatment | CCV+DOC+DPF | ||||||
| Dry Weight (kg) | 280 | ||||||
| Dimension (Length ×Width ×Height )(mm) | 850×741×751 | ||||||
| Flywheel house - Flywheel | SAE4-7.5” (Suitable for flexible steel sheet joint.) | ||||||
| Performance | |||||||
| Working speed (r/min) | 1800 | ||||||
| Prime Power(Without fan)(kW/hp) | 33 | ||||||
| Maximum stand-by power(kW/hp) | 36.3 | ||||||
| Adaptive power station (kW) | 26 | ||||||
| Voltage Regulation,Steady State (%) | 0-3 | ||||||
| Emission | Non-road discharge national 4(Meet EPA-Tier4A Emission Limit) | ||||||
| Average effective pressure(mPa) | 1.04 | ||||||
| lubrication system | |||||||
| Lubrication oil capacity(including filter) (L) | 8 | ||||||
| Consumption of Lubrication oil(L/h) | 0.04 | ||||||
| Fuel consumption system | |||||||
| Prime power"s fuel consumption(kg/h) | 7.39 | ||||||
| Fuel consumption(g/kW.h) | 246 | ||||||
| Standby power"s fuel consumption | 225 | ||||||
| Intake and Exhaust system | |||||||
| Specific air consumption(m3/min) | 2.7 | ||||||
| Allow maximum inlet resistance(kPa) | 6.3 | ||||||
| Exhaust emission(m3/min) | 6.7 | ||||||
| Exhaust gas temperature(Turbine exhaust gas) (℃) | 460 | ||||||
| Exhaust heat(kW) | 26.5 | ||||||
| Exhaust pipe maximum allowable back pressure(kPa) | 6.7 | ||||||
| Heat balance | |||||||
| Engine exhaust heat(kW) | 2.6 | ||||||
| Cooling liquid exhaust heat(kW) | 18.5 | ||||||
| Heat of the medium cooler(kW) | 5 | ||||||
| Cooling system | |||||||
| Fan speed ratio (200/113) | 1.77 | ||||||
| Water pump flow-head(L/s-mh2o) | 1.2-6.5 | ||||||
| Cooling water capacity-not including water tank | 8 | ||||||
| Fan diameter (mm) | 430 | ||||||
| Fan speed(r/min) | 2655 | ||||||
| Fan flow/static pressure(m3/s/Pa) | 2.04/570 | ||||||
| Fan power consumption(Kw) | 2.4 | ||||||
| Water tank capacity (L) | 10 | ||||||
| Allow maximum outlet temperature(℃) | 98 | ||||||
| Electric system | |||||||
| Voltage(V) | 12 | ||||||
| Generator current (A) | 35 | ||||||
| Start motor (kW) | 4.5 | ||||||
| Start preheat(kW) | 1 | ||||||
| Flywheel gear number | 109 | ||||||
| Alternator Data | |||||||
| Manufacturer: | Stamford / Kaijieli / Dingol | ||||||
| Number of Phase: | 3 | ||||||
| Connecting Type: | 3 Phase and 4 Wires,"Y" type connecting | ||||||
| Number of Bearing: | 1 | ||||||
| Power Factor: | 0.8 | ||||||
| Protection Grade: | IP23 | ||||||
| Altitude: | ≤1000m | ||||||
| Exciter Type: | Brushless,self-exciting | ||||||
| Insulation Class: | H | ||||||
| Environment Temperature (℃) | 40 | ||||||
| Intake Type | Natually-Aspirated | ||||||
| Voltage Regulation,Steady State: | ≤±1% | ||||||
| Open Type | Super Soundproof Type | ||||||
| Overall Size:1880(mm)×840(mm)×1130(mm) | Overall Size:2100(mm)×970(mm)×1280(mm) | ||||||
| Weight:752kg | Weight:985kg | ||||||
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
