Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000EW
- Rated Voltage:
- 220V
- Speed:
- 3000rpm
- Frequency:
- 50HZ
- Engine type:
- Air-cooledsingle cylinder
- Main function:
- Welder
- Welding rod diameter:
- 3.2mm
- Rated output:
- 1.8KW
- Welding current:
- 50-180A
- Phase:
- 1 Phase
- Model:
- DG6000EW
- Brand:
- Hi-earns
- Diesel engine model:
- 186FA
- Function:
- Arc AC Welding Machine
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 70X47X60 cm
- Single gross weight:
- 110.0 kg
- Package Type:
- cartons with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 15 25 To be negotiated
Related Products

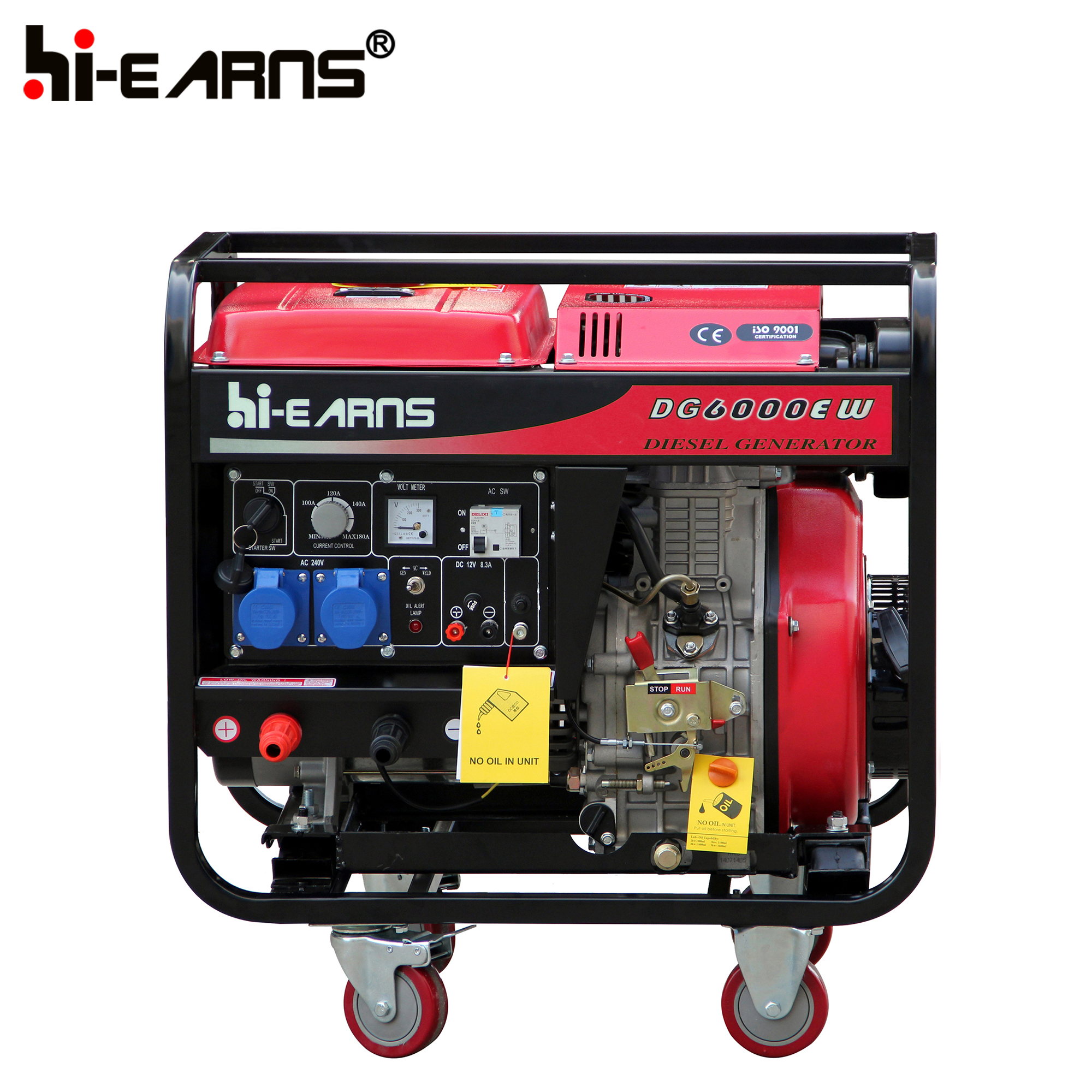

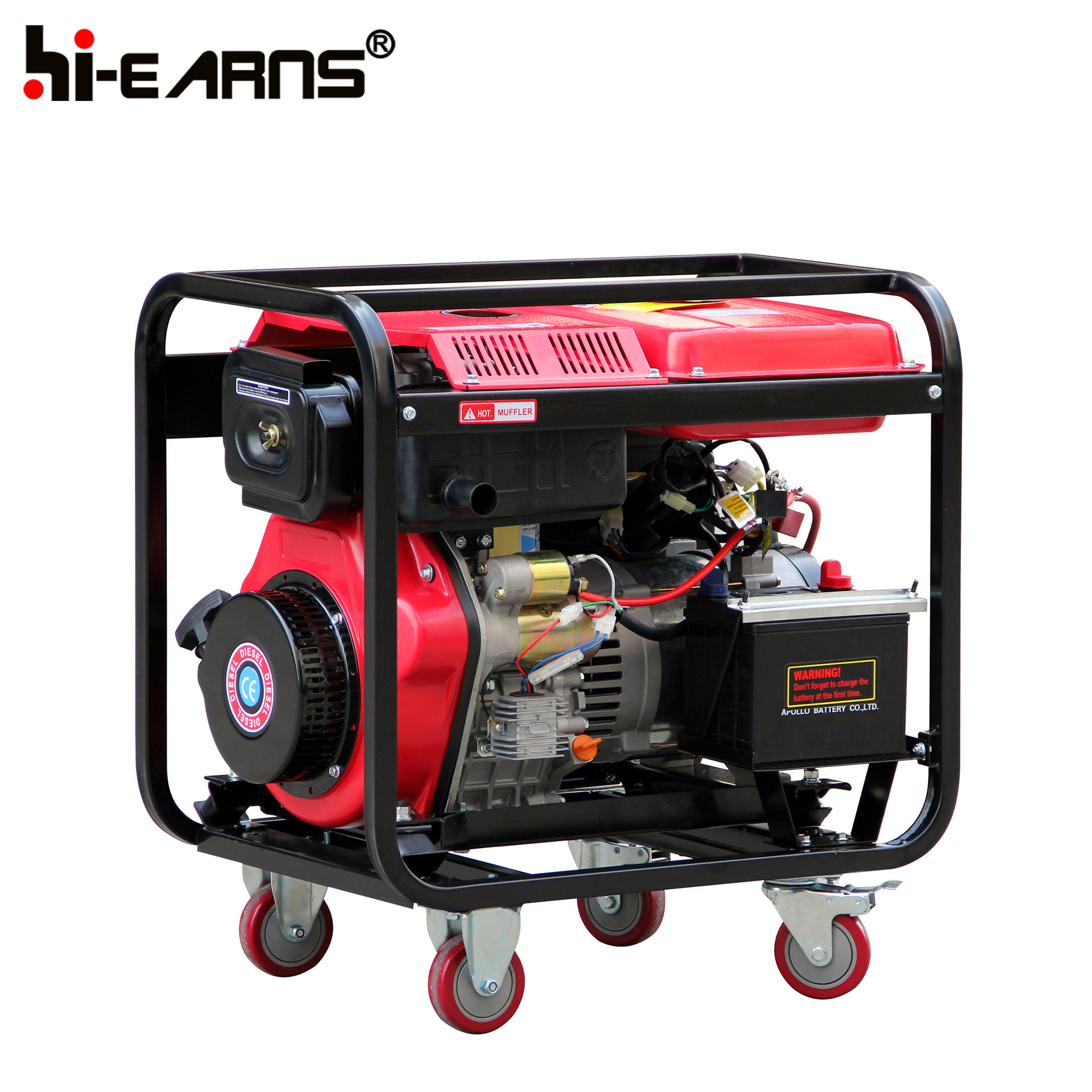

1.8KW portable diesel welding electrode welder welding machine
GENERATOR
| Model | DG6000EW | |
| Frequency(HZ) | 50 | 60 | |
| Rated.AC voltage(V) | 230 | 240 | |
| Rated current(A) | 7.8 | 9.2 | |
| Rated output(KVA) | 1.8 | 2.2 | |
| Rated speed(rpm) | 3000 | 3600 | |
WELDER | Welding no-load voltage(V) | 55-65 | |
| Working voltage(V) | 26-30 | ||
| Rated current (A) | 160 | ||
| Range of current(A) | 0-180 | ||
| Welding efficiency | 60% | ||
| Power factor (cosΦ ) | 1 | ||
| Phase | 1 | ||
| Noise level(at 7m) | 80-85db | ||
ENGINE | Engine model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Displacement capacity(cc) | 418cc | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 700× 470×600 | |
| Net weight(kg) | 102 | ||
| 20FT | 102 | ||
