Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-65KVA
- Rated Power:
- 50KW
- Output Type:
- AC Three Phase
- Rated Voltage:
- 220/380,230/400V
- Rated Current:
- 95A
- Speed:
- 1500rpm/1800rpm
- Frequency:
- 50hz/60hz
- Panel:
- Common/digital/ATS
- Type:
- Silent/super silent
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Design:
- New
- Noise:
- Lower Noise
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- Four cylinder four stroke
- Price:
- More competitive
- Warranty:
- One year
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 221X100X143 cm
- Single gross weight:
- 1150.0 kg
- Package Type:
- Packaging details:Bubble wrap with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 5 >5 Est. Time(days) 10 20 To be negotiated

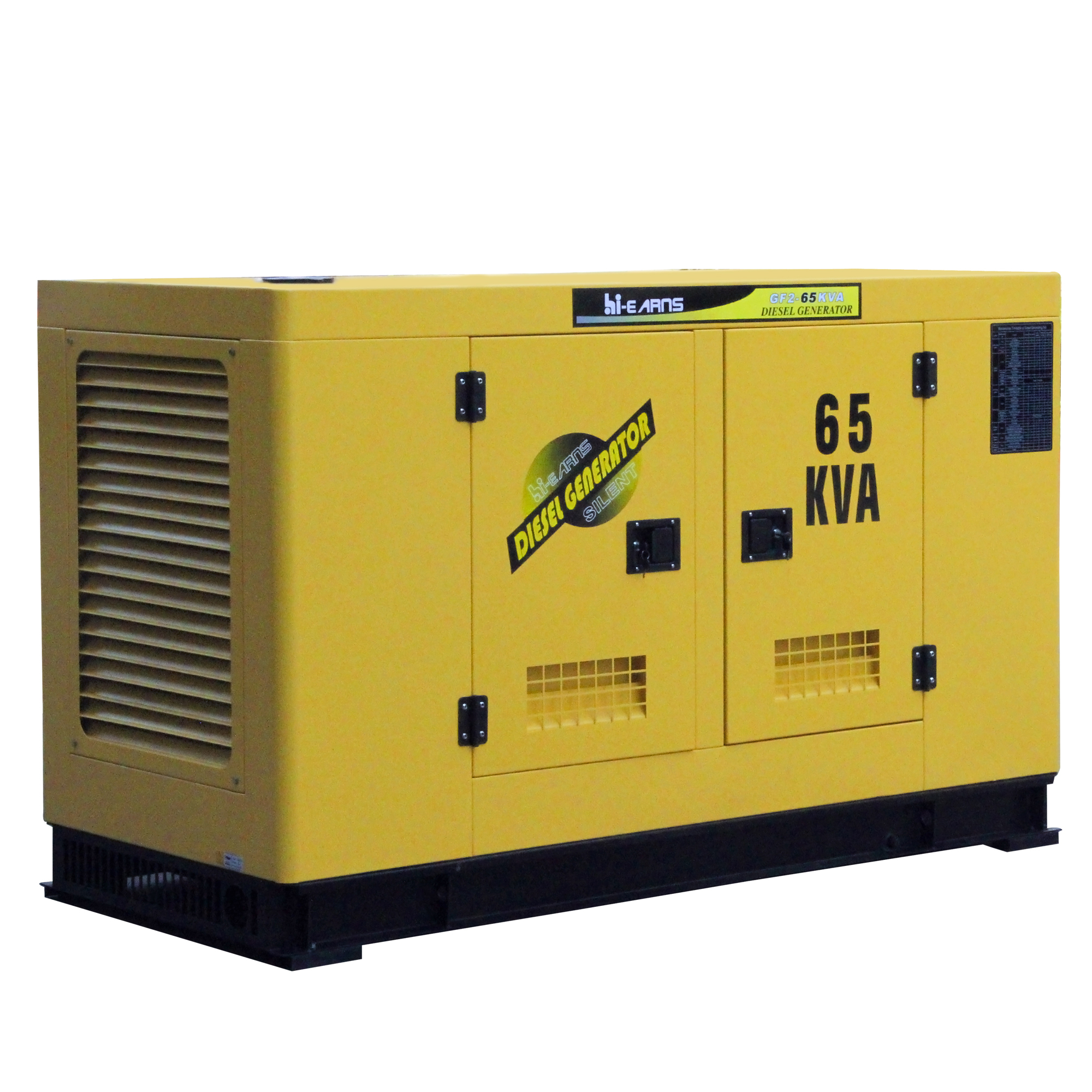

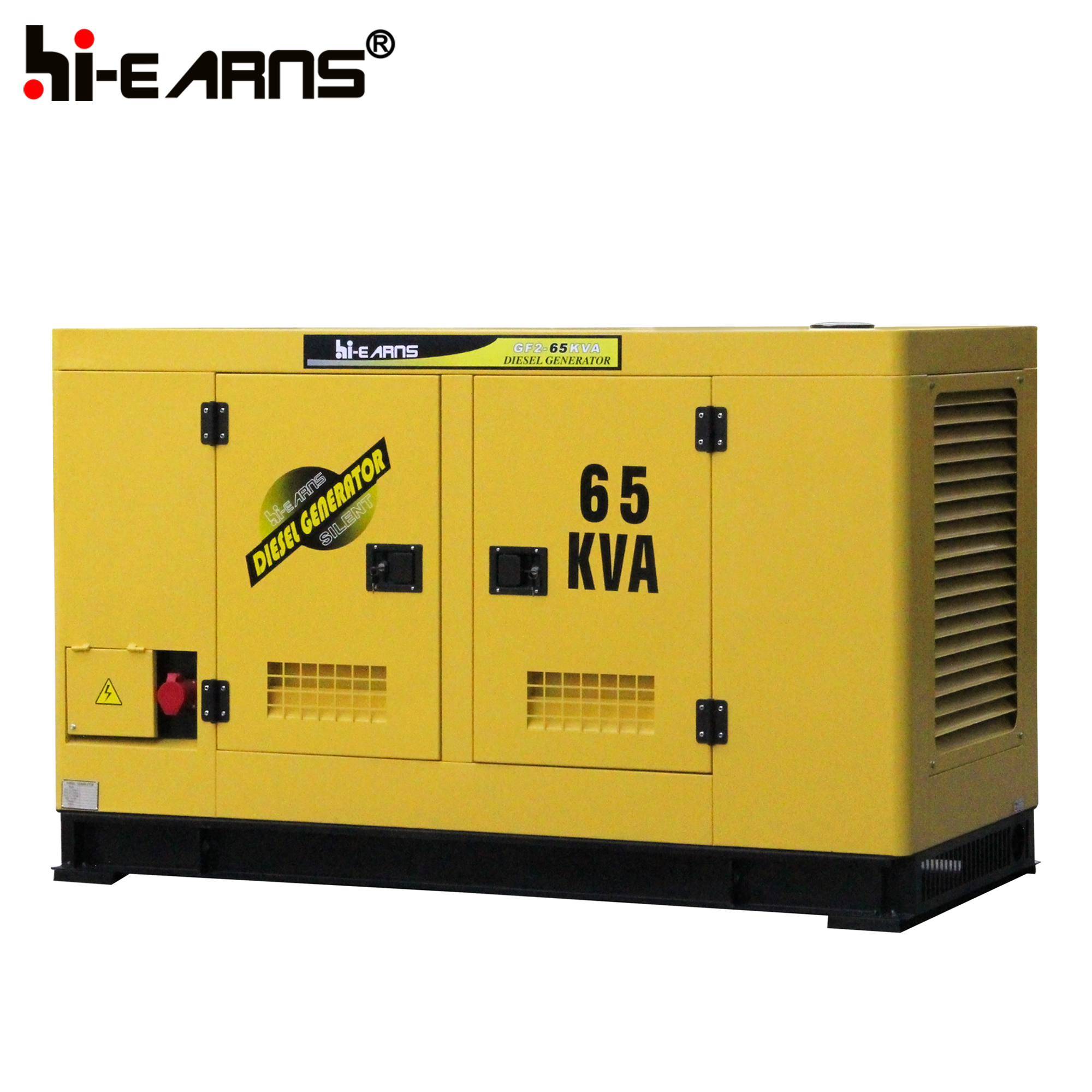

GF2-65KVA Water-cooled silent type diesel generator set
| MODEL | GF2 - 65KVA | |||||
| Standby Power(50HZ ) | 54KW / 68KVA | |||||
| Prime Power(50HZ ) | 50KW / 63KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | Yuchai Engine YC4D90Z-D20 | |||||
| Air Intake System: | Pressurize | |||||
| Cylinder Arrangement: | 4 in line | |||||
| Bore and Stroke: | 108×115(mm) | |||||
| Rated RPM: | 1500rpm | |||||
| Governor Type: | RSV Mechanical(Std) | |||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature | ≤600 | |||||
| Altitude | ≤1000m | |||||
| Connecting Type | 40 | |||||
| Ignite sequence | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation | 1-3-4-2 | |||||
| Open Type | Open Type Soundproof Type | |||||
| Overall Size:2(m)×0.82(m)×1.16(m) | Overall Size:2.21(m)×1(m)×1.43(m) | |||||
| Weight:980kg | Weight:1150kg | |||||
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
