Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Model Number:
- GF2-24KW
- Rated Power:
- 24KW
- Output Type:
- AC Three Phase
- Rated Voltage:
- 220/380, 230/400V
- Speed:
- 1500rpm/1800rpm
- Frequency:
- 50/60HZ
- noise level:
- silent
- Product Name:
- GF2-24KW
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Cooling Type:
- Water cooled
- Certificate:
- CE/ISO9001
- Warranty:
- 1 year
- Phase:
- three
- Panel:
- Common/digital/ATS
- Noise:
- low
- Name:
- water cooled diesel generation
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 212X96.5X120 cm
- Single gross weight:
- 802.0 kg
- Package Type:
- iron frame or bubble paper with stretch film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 5 >5 Est. Time(days) 10 20 To be negotiated

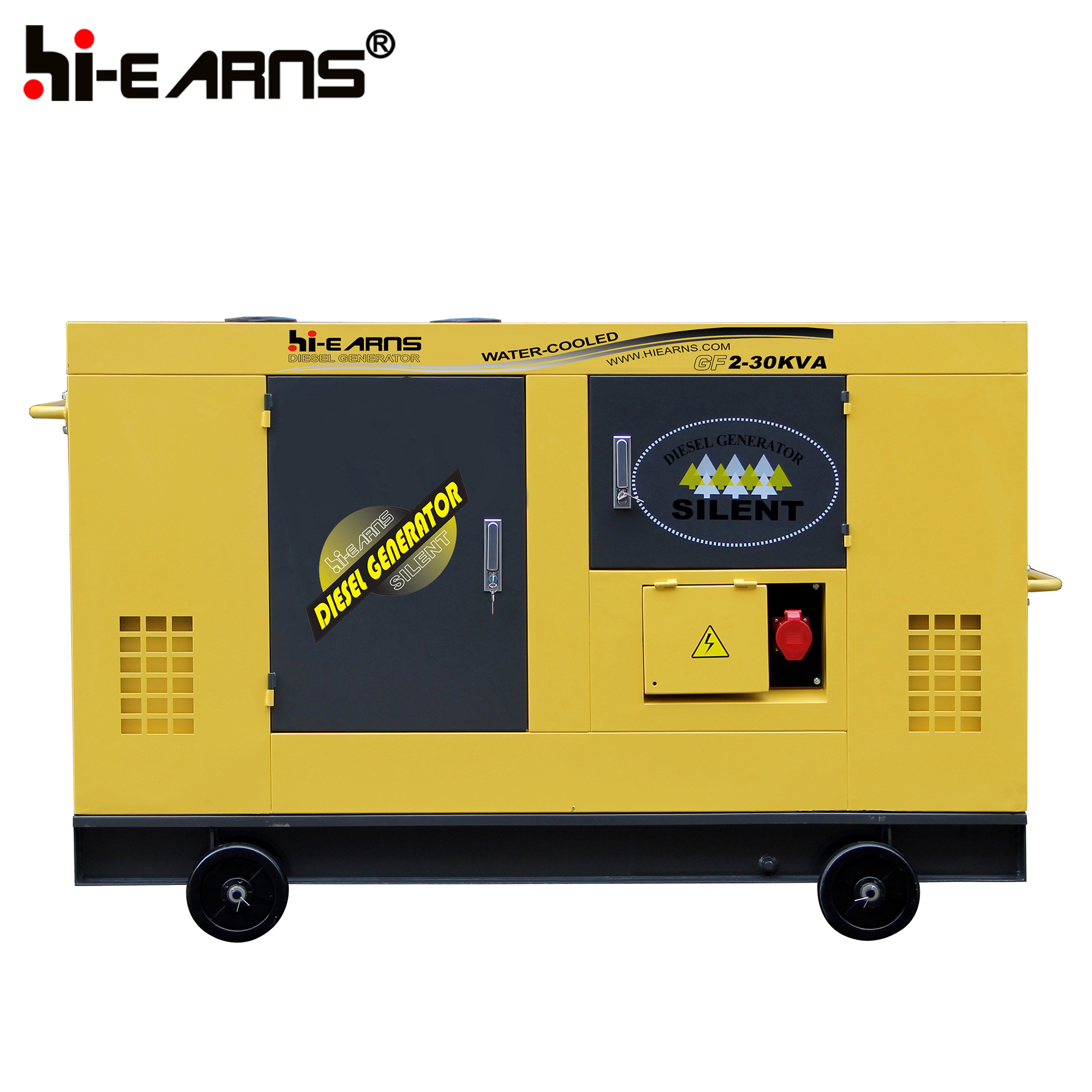

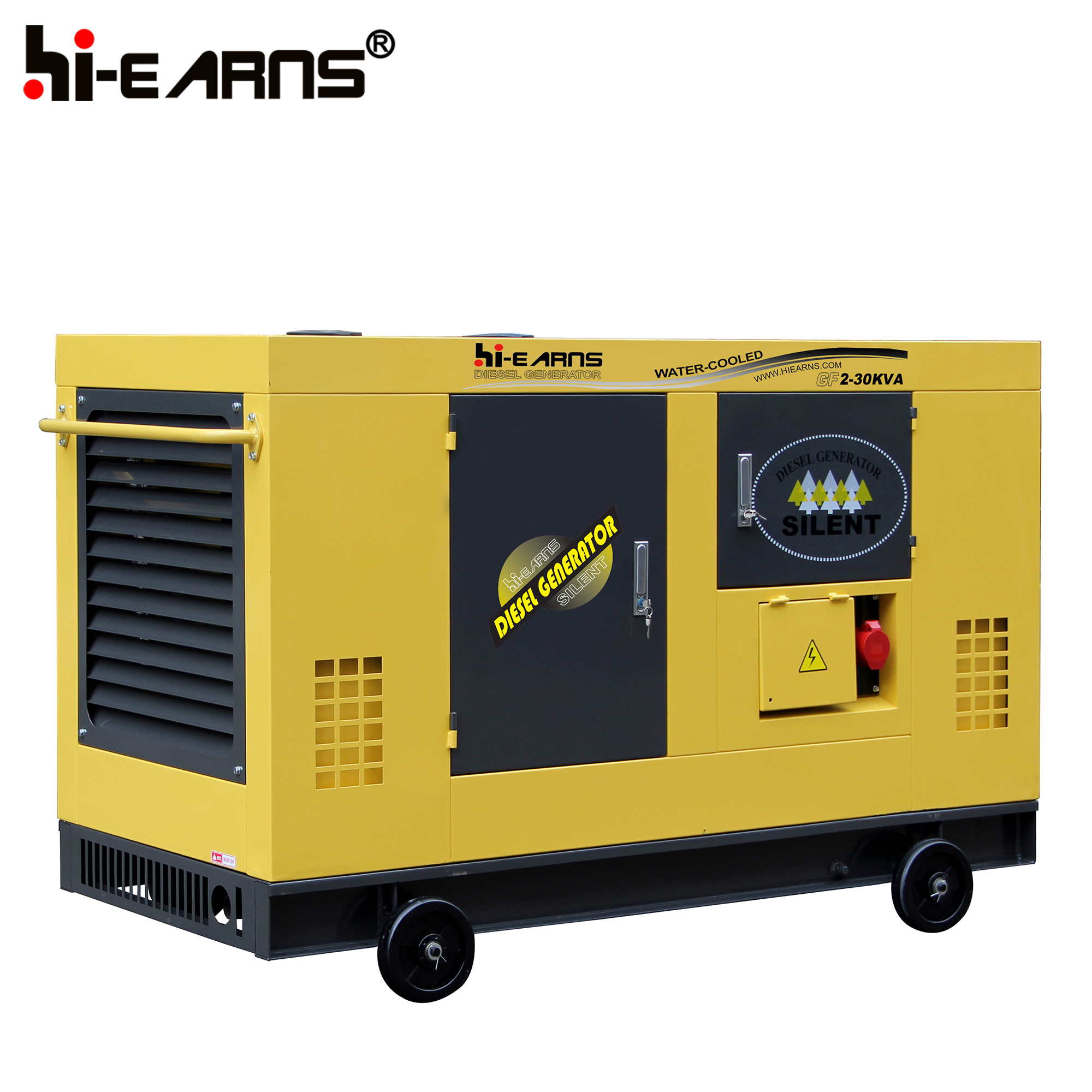

silent diesel generator set 24KW
| Standby Power | 25 KW / 31.25KVA |
| Prime Power | 24KW / 30KVA |
| Model | 4102D |
| Cylinder Number | 4 |
| Bore×Stroke(mm) | 102×118 |
| Displacement(L) | 3.857 |
| Rated RPM(r/min) | 1500 |
| Rated Speed Regulation % | ≤5 |
| Rated Fuel Consumption(g/kW·h) | ≤238 |
| Cylinder Head Type | Dry type |
| Diesel Generator Type | Direct line,Water-cooled,Four stroke |
| Intake Type | Natually-Aspirated |
| Combustion Chamber Type | Direct Injection |
| Lubricating System | Pressure,Split,Complex |
| Flywheel Cover Specification | SAE4# |
| Flywheel Specification | SAE7.5″ |
| Exhaust Fan Diameter(mm) | φ410 |
| Flywheel Teeth Number | 109 |
| Add Oil Capacity | 6.5L |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | H |
| Rated Current (A) | 43.3 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Silent Type"s Dimension Length × Width × Height (mm) | 2120×965×1200 |
| Silent Type"s Net Weight(Kg) | 802 |
| Silent Type"s 20FT Loading Quantity | 6PCS |
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
