Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-25KVA
- Rated Power:
- 20KW
- Output Type:
- AC Three Phase
- Rated Voltage:
- 220V/380,230/400V
- Rated Current:
- 38A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- engine:
- Cummins 4B3.9-G1
- type:
- portable silent generator
- alternator:
- Copy-Stamford brushless
- Color:
- Yello, white and so on
- Certificate:
- CE/ISO9001
- Control panel:
- Smargen
- Warranty:
- One Year
- Fuel tank:
- 35L
- Running time:
- 8h
- Cooling Type:
- Water cooled
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 220X100X145 cm
- Single gross weight:
- 1300.0 kg
- Package Type:
- Packing way: wooden box.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated

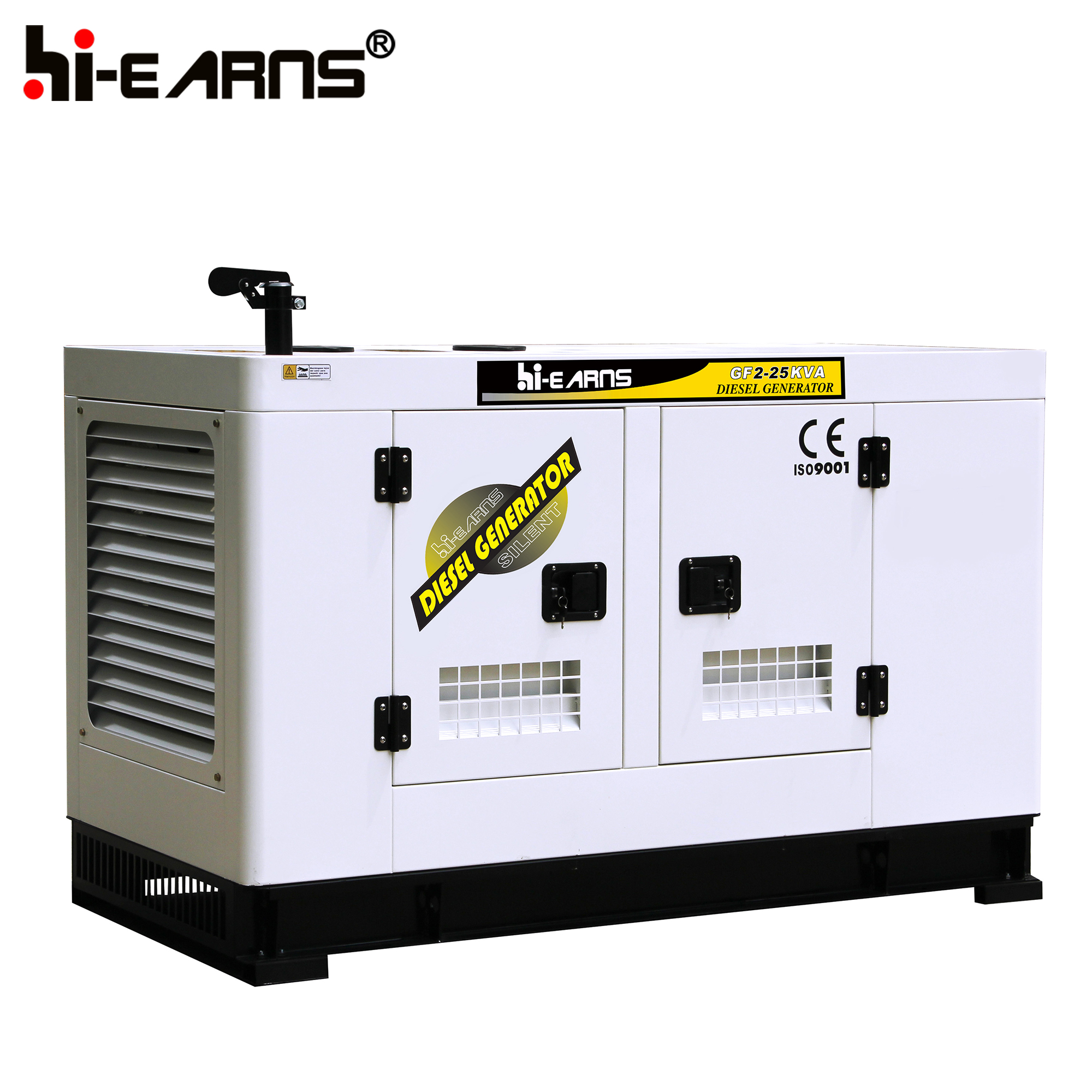

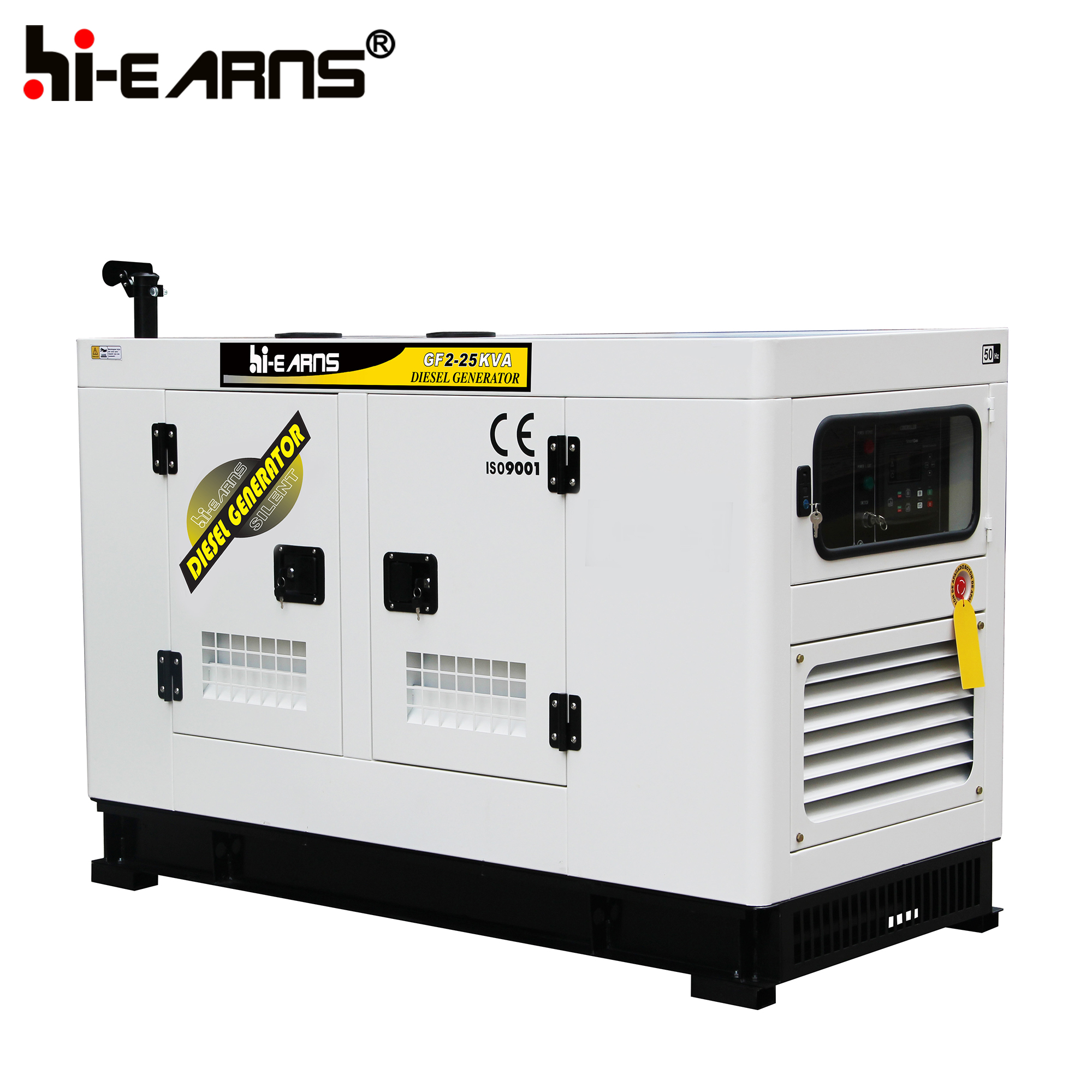

25KVA Cummins portable diesel generator
| MODEL | GF- 25KVA | |||||
| Standby Power(50HZ ) | 22KW / 28KVA | |||||
| Prime Power(50HZ ) | 20KW / 25KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | DCEC Cummins 4B3.9-G1,4-cycle | |||||
| Air Intake System: | Air natural cooled | |||||
| Fuel System: | A model fuel pump | |||||
| Cylinder Arrangement: | 4 in line | |||||
| Displacement: | 3.9L | |||||
| Bore and Stroke: | 102×120(mm) | |||||
| Compression Ratio: | 16.5:1 | |||||
| Rated RPM: | 1500rpm | |||||
| Max.Standby Power at Rated RPM: | 27KW / 36.7HP | |||||
| Governor Type: | RSV Mechanical(Std) / Electronic(Optional) | |||||
| Exhaust System | ||||||
| Exhaust Gas Flow: | 4.27m3/min | |||||
| Exhaust Temperature: | 410°C | |||||
| Max Back Pressure: | 10kPa | |||||
| Air Intake System | ||||||
| Max Intake Restriction: | 5kPa | |||||
| Buring Capacity: | 1.98m3/min | |||||
| Intake Flow: | 136m3/min | |||||
| Fuel System | ||||||
| 100%(Prime Power) Load: | 228 g/Kw.h | |||||
| 75%(Prime Power) Load: | 229 g/Kw.h | |||||
| 75%(Prime Power) Load: | 240 g/Kw.h | |||||
| Oil System | ||||||
| Total Oil Capacity: | 11L | |||||
| Oil Consumption: | ≤4g/kwh | |||||
| Engine Oil Tank Capacity: | 9.5L | |||||
| Oil Pressure at Rated RPM: | 345kPa | |||||
| Cooling System | ||||||
| Total Coolant Capacity: | 21L | |||||
| Thermostat: | 82-95°C | |||||
| Max Water Temperature: | 104°C | |||||
| Open Type | Soundproof Type | |||||
| Overall Size:1800(mm)×750(mm)×1350(mm) | Overall Size:2200(mm)×1000(mm)×1450(mm) | |||||
| Weight:876kg | Weight:1300kg | |||||
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
HI-EARNS ALWAYS PROVIDE THE BEST, WE LISTEN TO YOUR NEEDS.
