Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-65KVA
- Rated Power:
- 50KW
- Output Type:
- AC Three Phase
- Rated Voltage:
- 220/380, 230/400, 240/415V
- Rated Current:
- 95A
- Speed:
- 1500rpm/1800rpm
- Frequency:
- 50/60HZ
- Type:
- Silent/super silent/open
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Panel:
- Common/digital/ATS
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- Four cylinder four stroke
- Price:
- More competitive
- Warranty:
- 1 Year
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 240X100X145 cm
- Single gross weight:
- 1450.0 kg
- Package Type:
- Packaging details:Bubble wrap with plastic film.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated

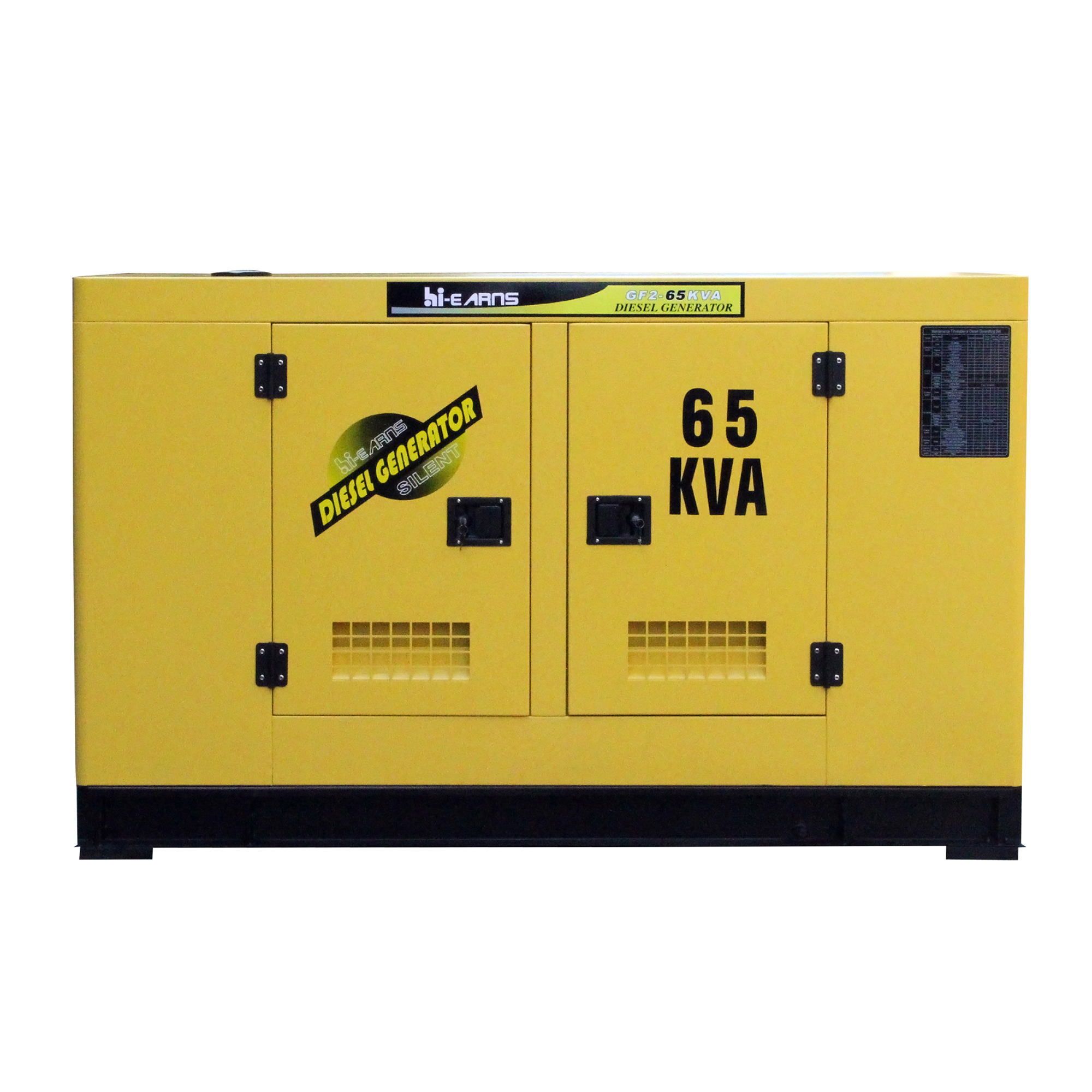

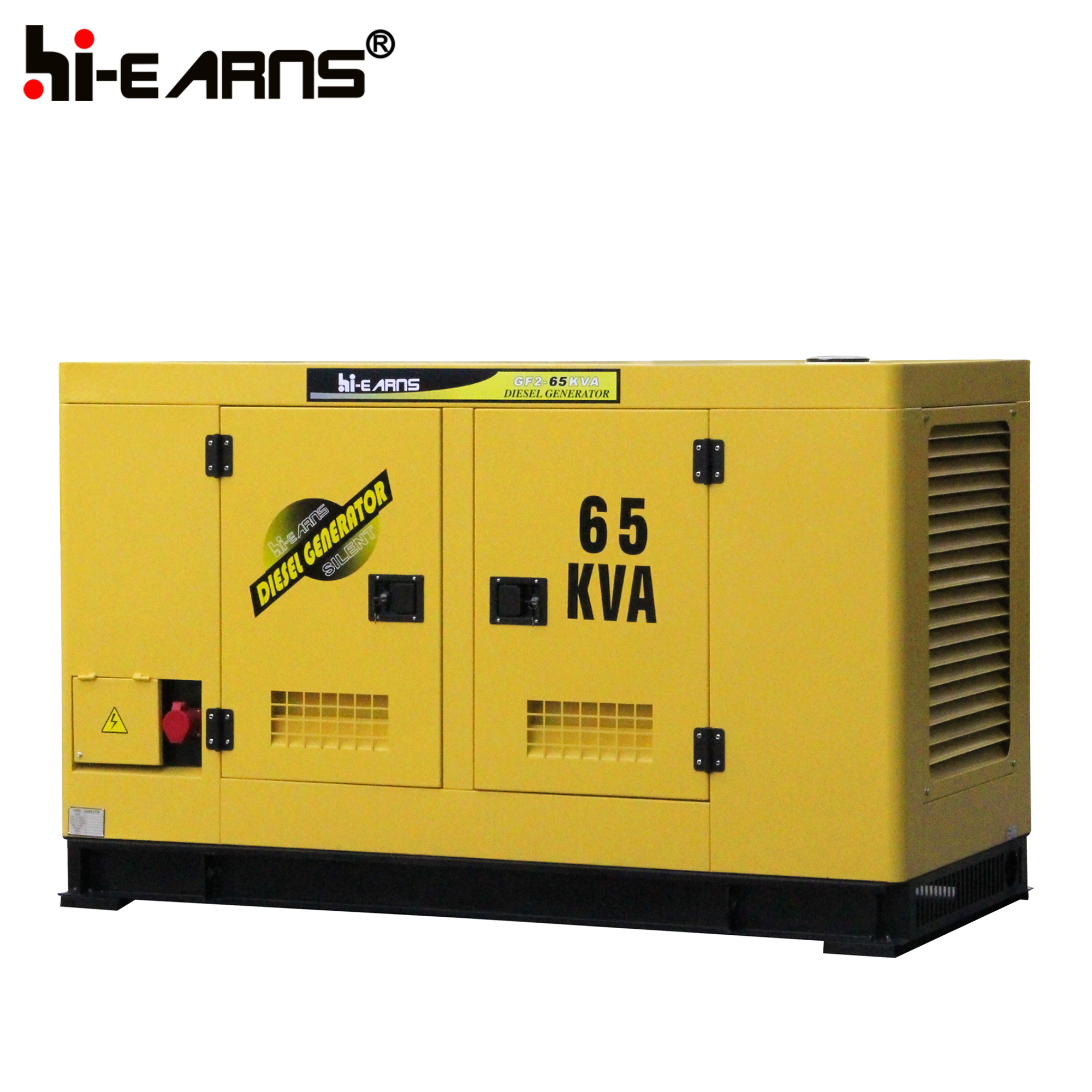

GF2-65KVA Water cooled silent type diesel generator
| MODEL | GF2- 65KVA | |||||
| Standby Power(50HZ ) | 52KW / 65KVA | |||||
| Prime Power(50HZ ) | 48KW / 60KVA | |||||
| ENGINE DATA | ||||||
| Manufacturer/Model: | DCEC Cummins 4BTA3.9-G2 | |||||
| Air Intake System: | Turbo,Water/Air Cooling | |||||
| Fuel System: | AD type fuel pump | |||||
| Cylinder Arrangement: | 4 in line | |||||
| Displacement: | 3.9L | |||||
| Bore and Stroke: | 102×120(mm) | |||||
| Compression Ratio: | 16.5:1 | |||||
| Rated RPM: | 1500rpm | |||||
| Max.Standby Power at Rated RPM: | 65KW / 88.4HP | |||||
| Governor Type: | Electronic | |||||
| Exhaust System | ||||||
| Exhaust Gas Flow: | 14.8m3/min | |||||
| Exhaust Temperature: | 497°C | |||||
| Max Back Pressure: | 10kPa | |||||
| Air Intake System | ||||||
| Max Intake Restriction: | 6.2kPa | |||||
| Buring Capacity: | 5.9m3/min | |||||
| Intake Flow: | 158m3/min | |||||
| Fuel System | ||||||
| 100%(Prime Power) Load: | 216 g/Kw.h | |||||
| 75%(Prime Power) Load: | 214 g/Kw.h | |||||
| 75%(Prime Power) Load: | 221 g/Kw.h | |||||
| Oil System | ||||||
| Total Oil Capacity: | 16.4L | |||||
| Oil Consumption: | ≤4g/kwh | |||||
| Engine Oil Tank Capacity: | 14.3L | |||||
| Oil Pressure at Rated RPM: | 350kPa | |||||
| Cooling System | ||||||
| Total Coolant Capacity: | 24L | |||||
| Thermostat: | 83-95°C | |||||
| Max Water Temperature: | 100°C | |||||
| Open Type | Soundproof Type | |||||
| Overall Size:1800(mm)×750(mm)×1450(mm) | Overall Size:2400(mm)×1000(mm)×1450(mm) | |||||
| Weight:930kg | Weight:1450kg | |||||
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
