Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Model Number:
- GF2-10KVA
- Rated Power:
- 10KVA
- Output Type:
- AC Three Phase
- Rated Voltage:
- 220/380, 230/400V
- Rated Current:
- 15A
- Speed:
- 1500rpm
- Frequency:
- 50HZ
- engine type:
- Chinese Quanchai Engine
- color:
- Robin yellow
- alternator type:
- Defeng alternator
- Warranty:
- 1 Year
- Output:
- 8KW/10KVA
- Brand:
- Hi-earns
- Noise level:
- 65dBA@7m(no Load)
- Generator type:
- water-cooled diesel generator
- Cylinder number:
- 3
- Fuel tank capacity:
- 32L
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 170X85X110 cm
- Single gross weight:
- 570.0 kg
- Package Type:
- 1.Packing way: Carton with plastic film. 2.Payment way: If less $10000, 100%T/T payment in advance. If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment. 3.Producing day: 15-25days.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated

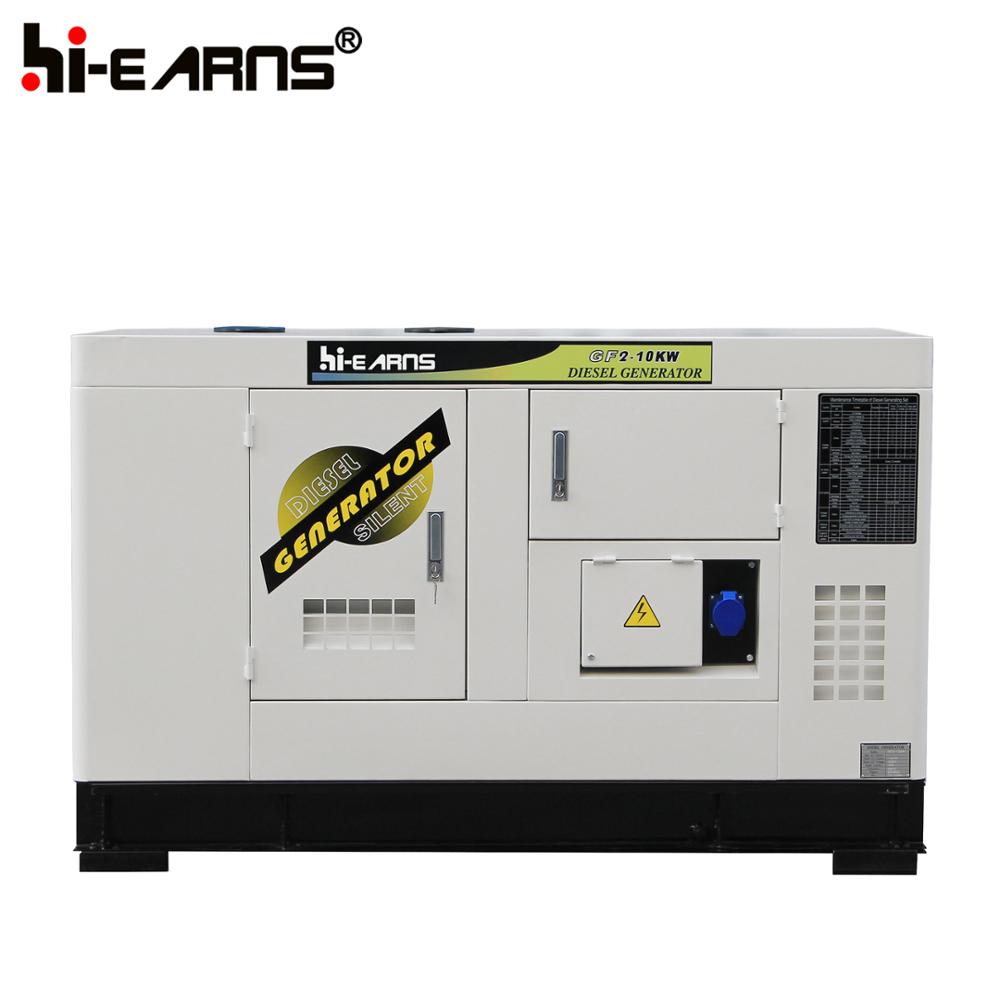

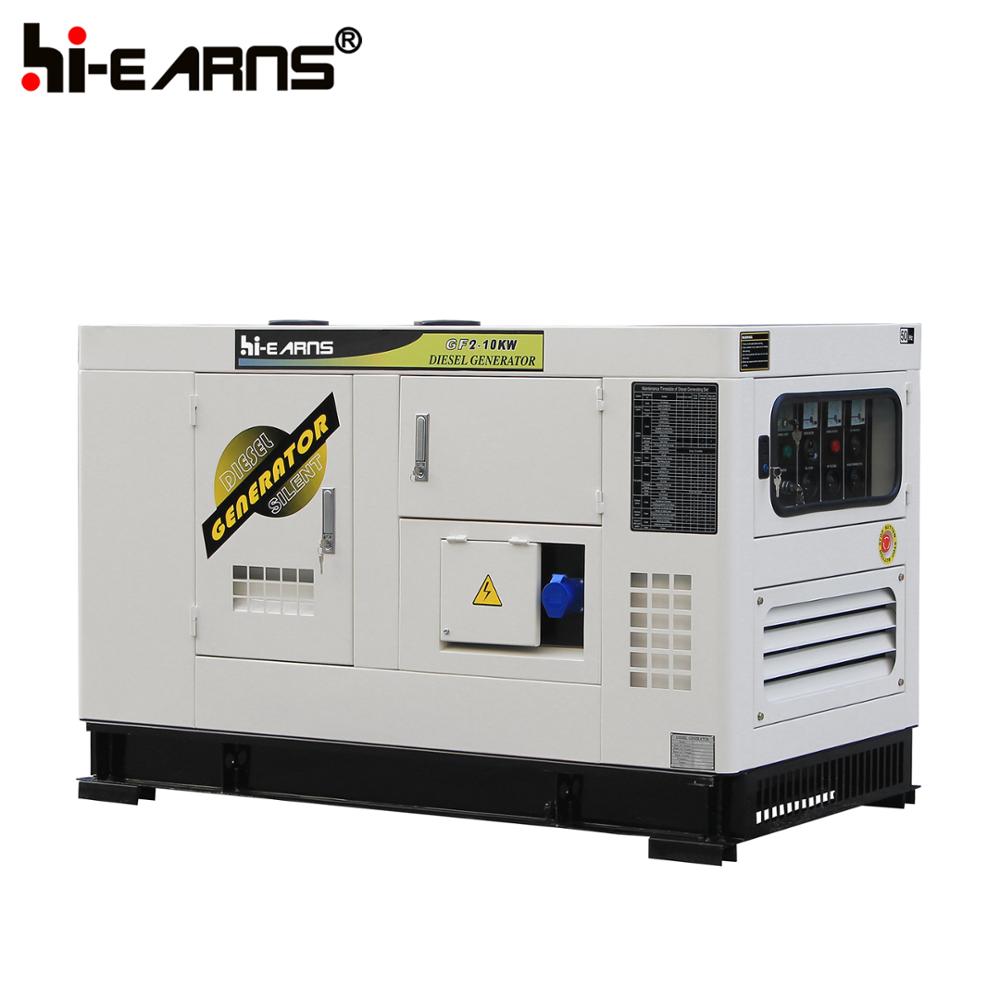

10KVA silent type Robin color small water cooled diesel generator
| Standby Power | 8.5KW / 11KVA |
| Prime Power | 8KW / 10KVA |
| Model | QC385D |
| Cylinder Number | 3 |
| Bore×Stroke(mm) | 85×90 |
| Displacement(L) | 1.532 |
| Rated RPM(r/min) | 1500 |
| Rated Speed Regulation % | ≤5 |
| Rated Fuel Consumption(g/kW·h) | ≤262 |
| Cylinder Head Type | Dry type |
| Diesel Generator Type | Direct line,Water-cooled,Four stroke |
| Intake Type | Natually-Aspirated |
| Combustion Chamber Type | Direct Injection |
| Lubricating System | Pressure,Split,Complex |
| Flywheel Cover Specification | SAE4# |
| Flywheel Specification | SAE7.5″ |
| Exhaust Fan Diameter(mm) | φ410 |
| Flywheel Teeth Number | 115 |
| Add Oil Capacity | 4L |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | S |
| Rated Current (A) | 15 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Silent Type"s Dimension Length × Width × Height (mm) | 1700×850×1100 |
| Silent Type"s Net Weight(Kg) | 570 |
| Silent Type"s 20FT Loading Quantity | 12PCS |
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
