Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG7500SE
- Rated Voltage:
- 220V
- Rated Current:
- 20.9A
- Speed:
- 3000rmp/3600rmp
- Frequency:
- 50HZ/60HZ
- generator:
- silent diesel generator
- panel:
- common panel
- color:
- optional
- output voltage:
- 220V
- engine model:
- 188FA
- Rated output:
- 5.5KVA
- Maximum output:
- 6KVA
- Phase:
- 1 Phase
- Product Name:
- DG7500SE
- Alternator:
- Marathon
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 96X56X72 cm
- Single gross weight:
- 165.0 kg
- Package Type:
- carton with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated
Related Products

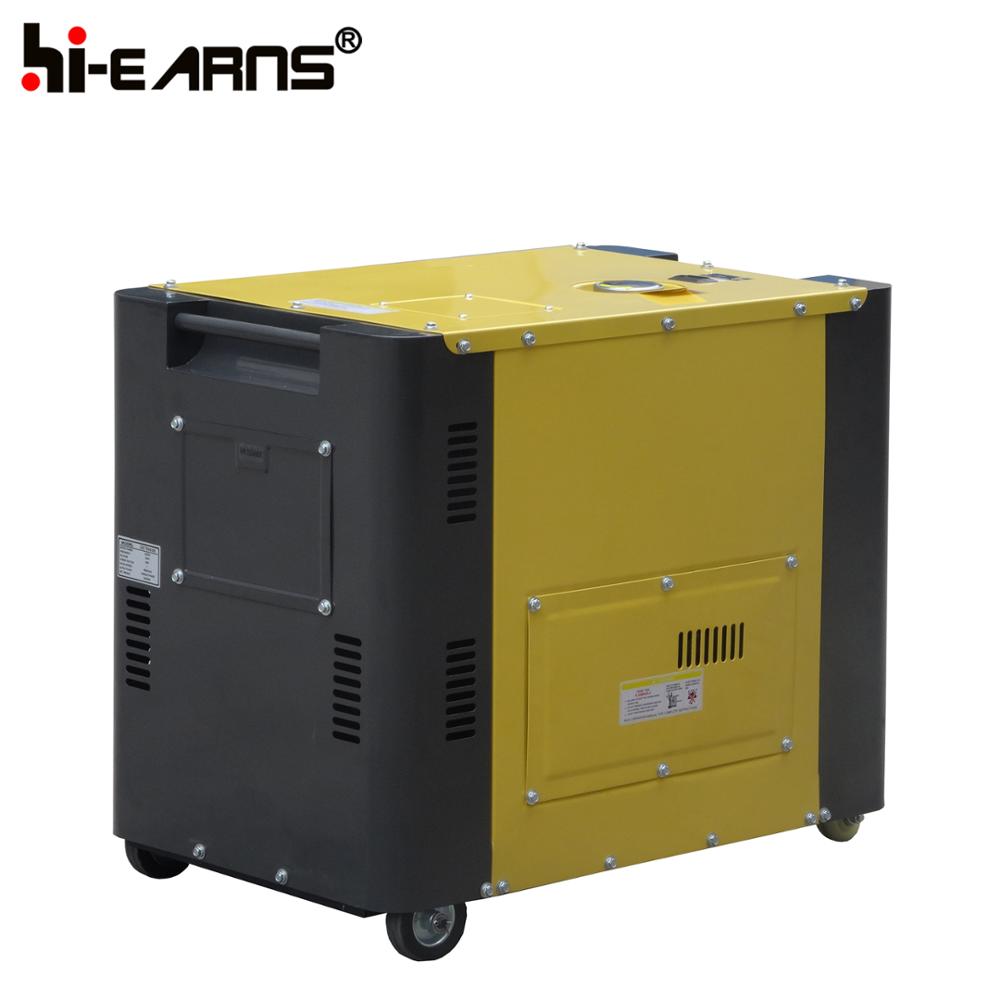

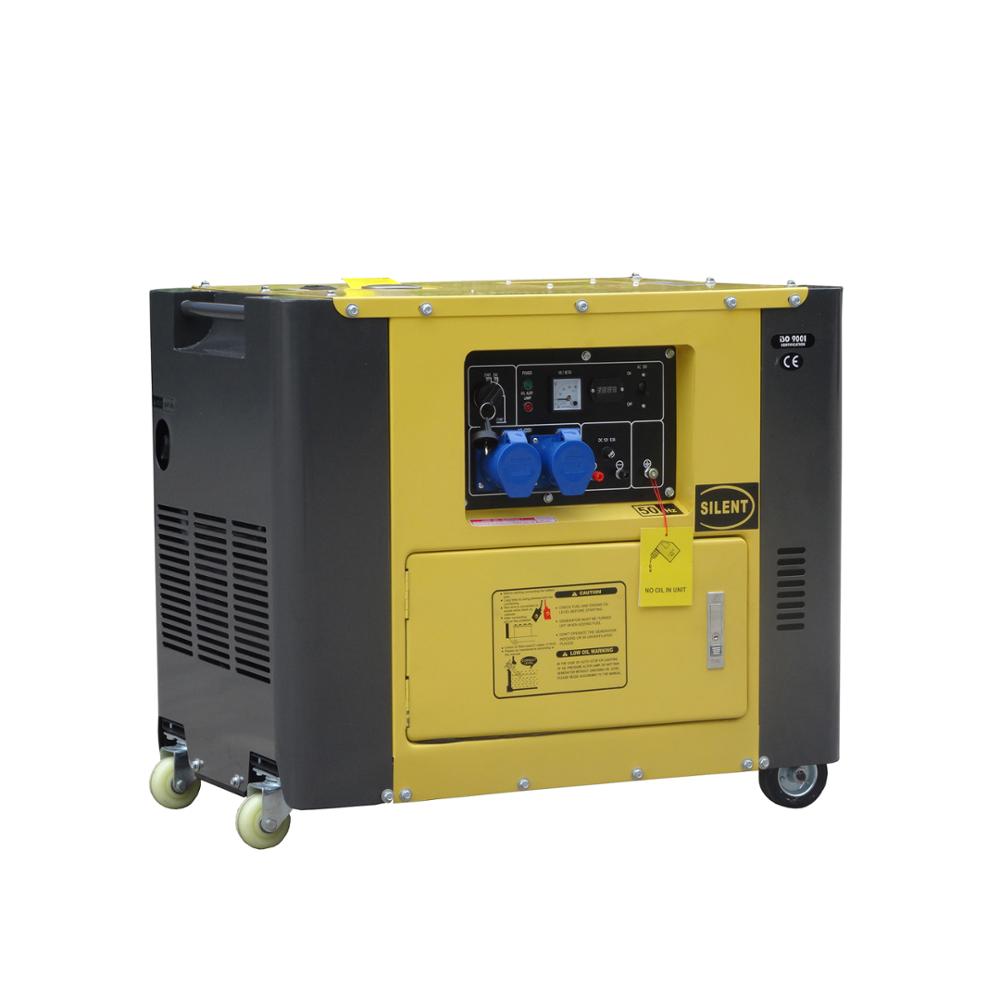

5.5kva air-cooled silent 220 volt portable generator price
DG7500SE model: With 12 HP 188FA two cylinder diesel engine and 100% copper alternator ensure a 5.5KVA rated output, and 6KVA max. output! ator
| GENERATOR | Model | DG7500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.0 | 6.5 | |
| Rated output(kw) | 5.5 | 6.0 | |
| Rated. AC voltage(v) | 220 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR188FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 88× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 960× 560× 710 | |
| Net weight(kg) | 165 | ||
| 20FT | 72 | ||
Silent air-cooled DG
