Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG6500SE 5KW
- Rated Voltage:
- 220V
- Rated Current:
- 22.7A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ 5KW diesel generator
- Diesel generator:
- new design silent 5KW diesel generator battery
- power output:
- 5/5.5KW
- alternator:
- 100% copper
- color:
- optional, depend on you
- Type:
- easy maintenance
- Engine:
- 186FA
- Warranty:
- One Year
- Product Name:
- new design silent 5KW diesel generator battery
- Certificate:
- CE/ISO9001
- Options:
- current meter, digital module, ATS, remote control
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 95X56X78 cm
- Single gross weight:
- 165.0 kg
- Package Type:
- carton with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 2 3 - 10 >10 Est. Time(days) 10 20 To be negotiated
Related Products
new design silen 5KW diesel generator battery
♦ Use good brand spare parts, unique design canopy
♦ Portable type, with four wheels, 100% copper alternator
♦ We are factory, have low price spare parts and timely technical support

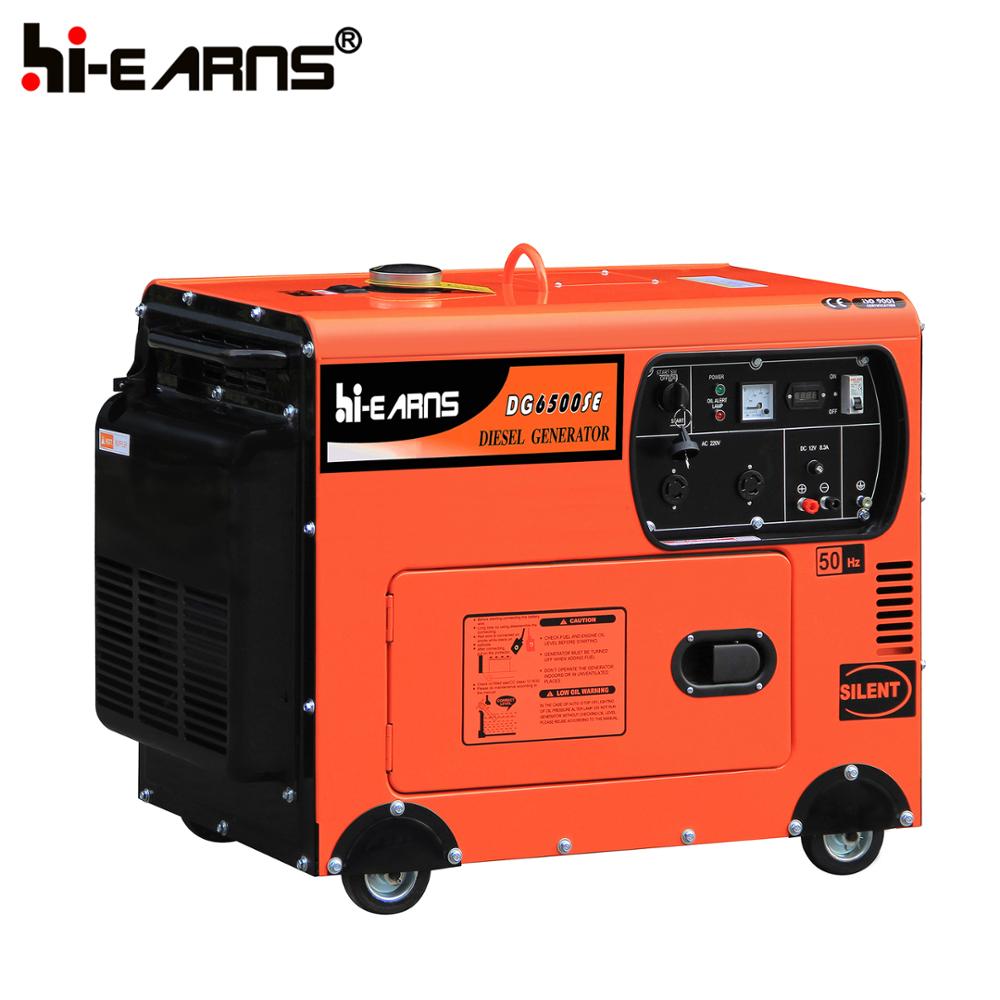

| GENERATOR | Model | DG6500SE | |
| Frequency (HZ) | 50 | 60 | |
| Max. Output (KW) | 5.5 | 6 | |
| Rated output (KW) | 5 | 5.5 | |
| Rated. AC voltage (V) | 120, 220, 230, 240 | ||
| Power factor (cosΦ ) | cosΦ =1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level (at 7m) | 70~72 | ||
| Fuel tank capacity (L) | 16 | ||
| Continues work (H) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single- cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke (mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| DIMENSIONS | Dimension (L× W× H)(mm) | 950×560×760 | |
| Net weight(kg) | 150 | ||
| 20FT/40HQ | 72 / 144 | ||

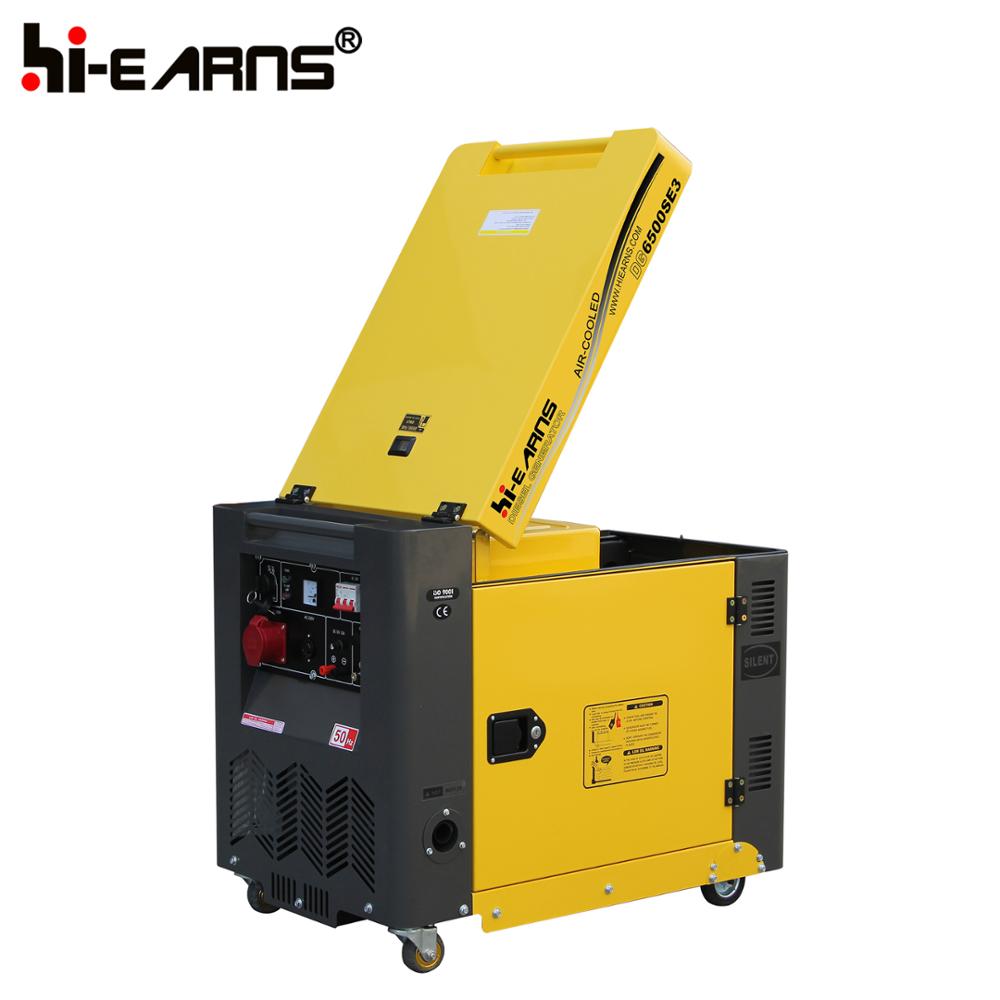

Silent air-cooled DG
