220A diesel welding generator for 4.0mm welding machine

Click on the image to view the original image

Product：	views：2220A diesel welding generator for 4.0mm welding machine
Branch：	Hi-earns or OEM
Type：	MIG Welders
Size：	70X47X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:33

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Machinery Repair Shops, Farms, Restaurant, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Type:: MIG Welders

Condition:: New

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns or OEM

Arc Current:: 220A

Pulse Frequency:: 50HZ

Pilot Arc Current:: 220A

Rated Duty Cycle:: 100

Motor Type:: AC Motor

Dimensions:: 950x560x760

Usage:: welding and generator

Voltage:: 220/230V

Power(W):: 2.2KW

Certification:: CE, GS, ROHS, ISO

Warranty:: 1 year

After-sales Service Provided:: Field maintenance and repair service, Engineers available to service machinery overseas

Function:: main welding

Model:: diesel welding machine

Welding rod:: 3.2 and 4.0 mm

welding current:: Max. 220A

Generator function:: 2KW for lighting

Engine model:: HR192FD

Engine power:: 14HP

Color:: optional

Packaging & Delivery

Selling Units:: Single item

Single package size:: 70X47X60 cm

Single gross weight:: 140.0 kg

Package Type:: Carton packing with plywood pallet

Picture Example:

Lead Time:

Quantity(Set)	1 - 5	6 - 20	>20
Est. Time(days)	15	25	To be negotiated

220A diesel welding generator for 4.0mm welding machine

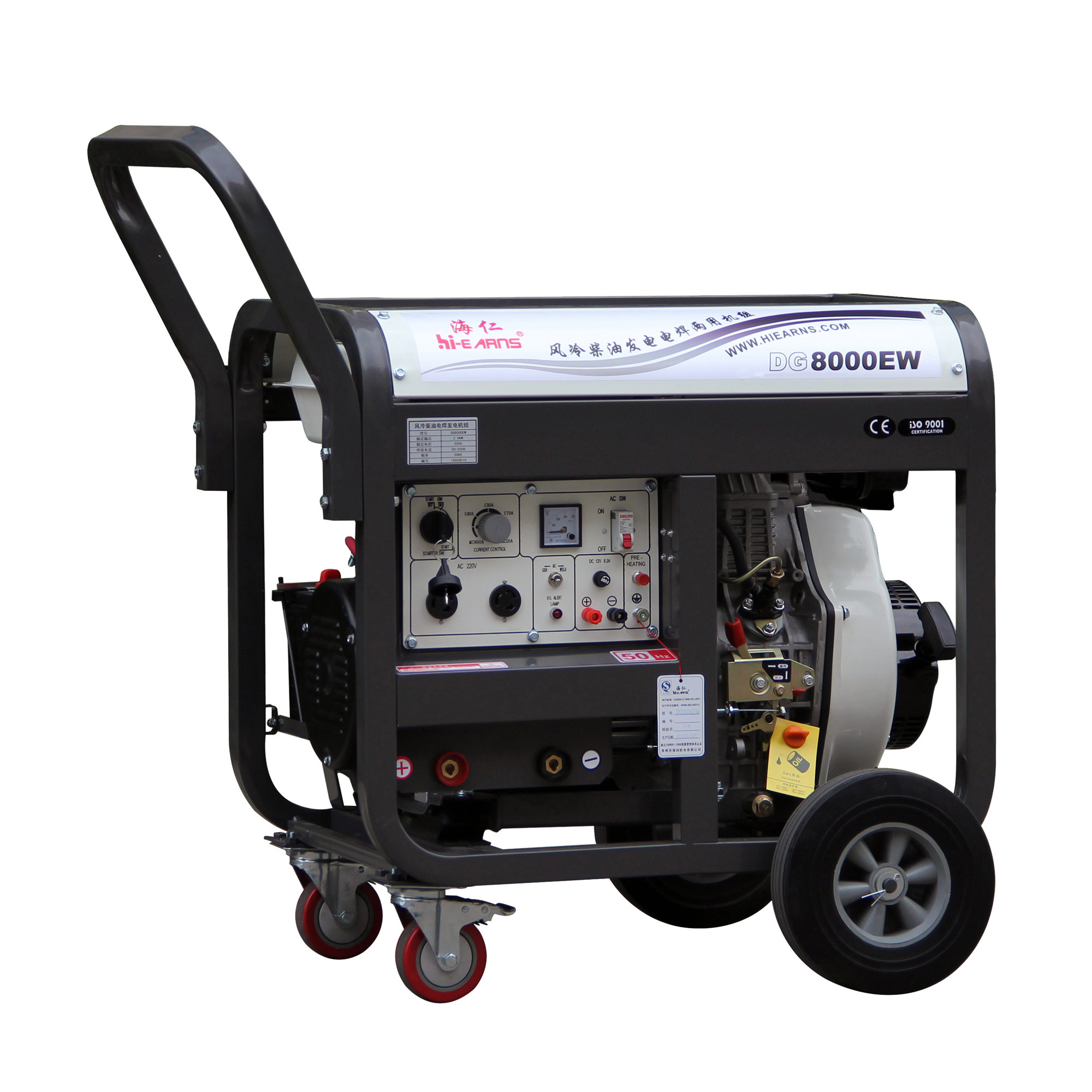

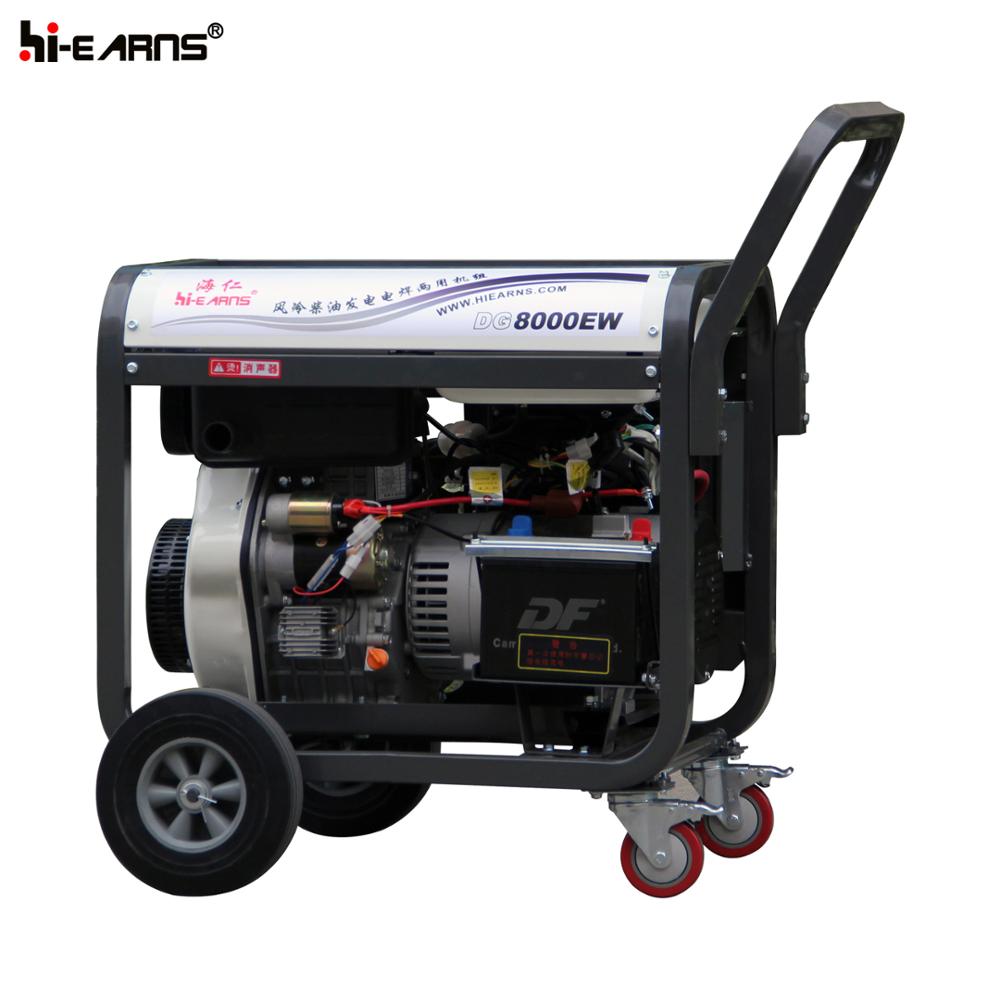

DG8000EW model: With 14HP HR192FD air-cooled diesel engine and 100% copper wire welding alternator ensure a 220A welding current and 2KW generator output.

Can use 3.2/4.0 mm welding rod.welding machine

Related Products

GENERATOR	Model	DG8000EW
	Frequency(HZ)	50	60
	Rated.AC voltage(V)	220	220
	Rated current(A)	8.3	8.3
	Rated output(KVA)	2.0	2.0
	Rated speed(rpm)	3000	3600
WELDER	Welding no-load voltage(V)	55-65
	Working voltage(V)	26-30
	Rated current (A)	220
	Range of current(A)	0-220
	Welding efficiency	60%
	Power factor (cosΦ )	1
	Phase	1
	Noise level(at 7m)	78-83db
ENGINE	Engine model	HR192FD
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	92×75
	Displacement capacity(cc)	498cc
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	No
	Three phase voltage	optional
DIMENSIONS	Dimension(L× W× H)(mm)	700× 470×600
	Net weight(kg)	135
	20FT	102
