- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG11000E
- Rated Voltage:
- 220V
- Rated Current:
- 34.09A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ
- rated output power:
- 7.5KW
- max. output power:
- 8KW
- generator type:
- 8000W open type 8kw diesel generator
- cylinder:
- single cylinder
- portable type:
- with handles and wheels
- start method:
- electric start with 36AH battery
- color:
- optional
- 3 phase, hour meter, current meter:
- optional
- Engine:
- Chinese Engine
- Certificate:
- CE/ISO9001
- Supply Ability:
- 120 Piece/Pieces per Day
- Packaging Details
- carton with wooden pallet
- Port
- SHANGHAI or CIF destination port

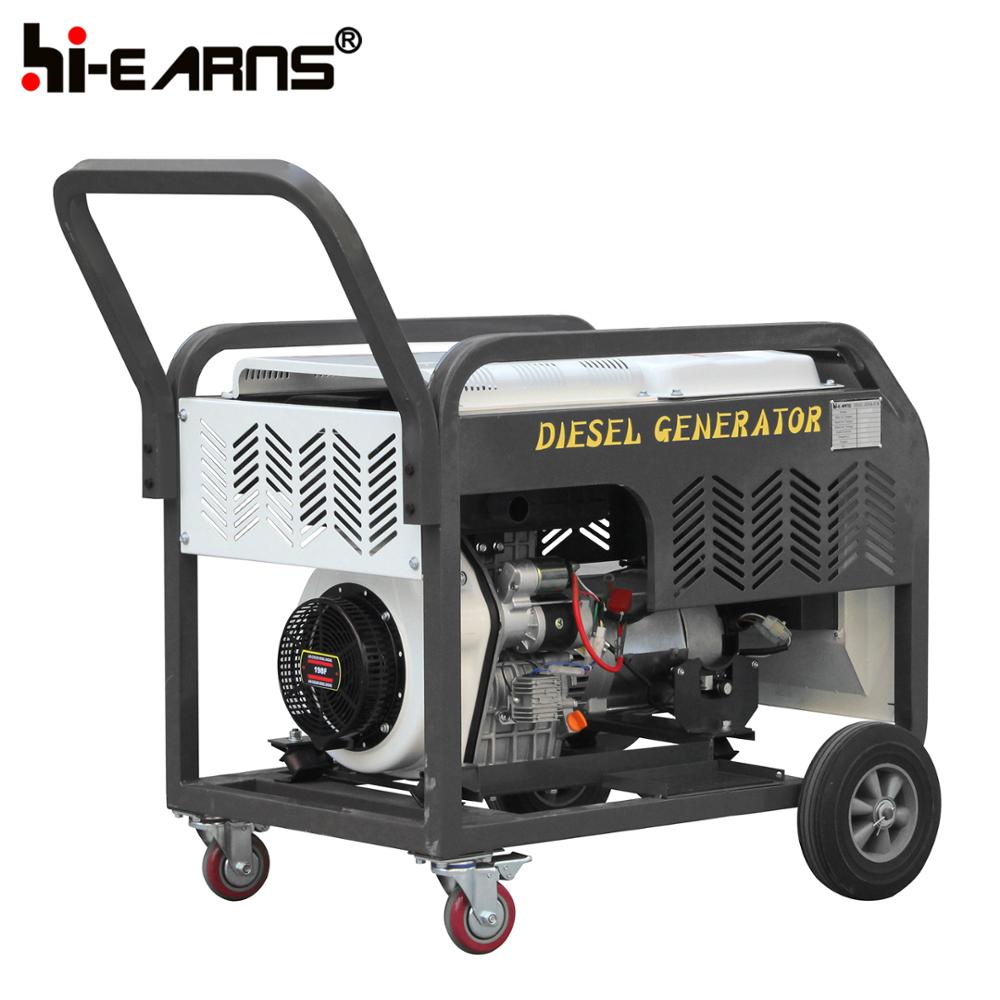

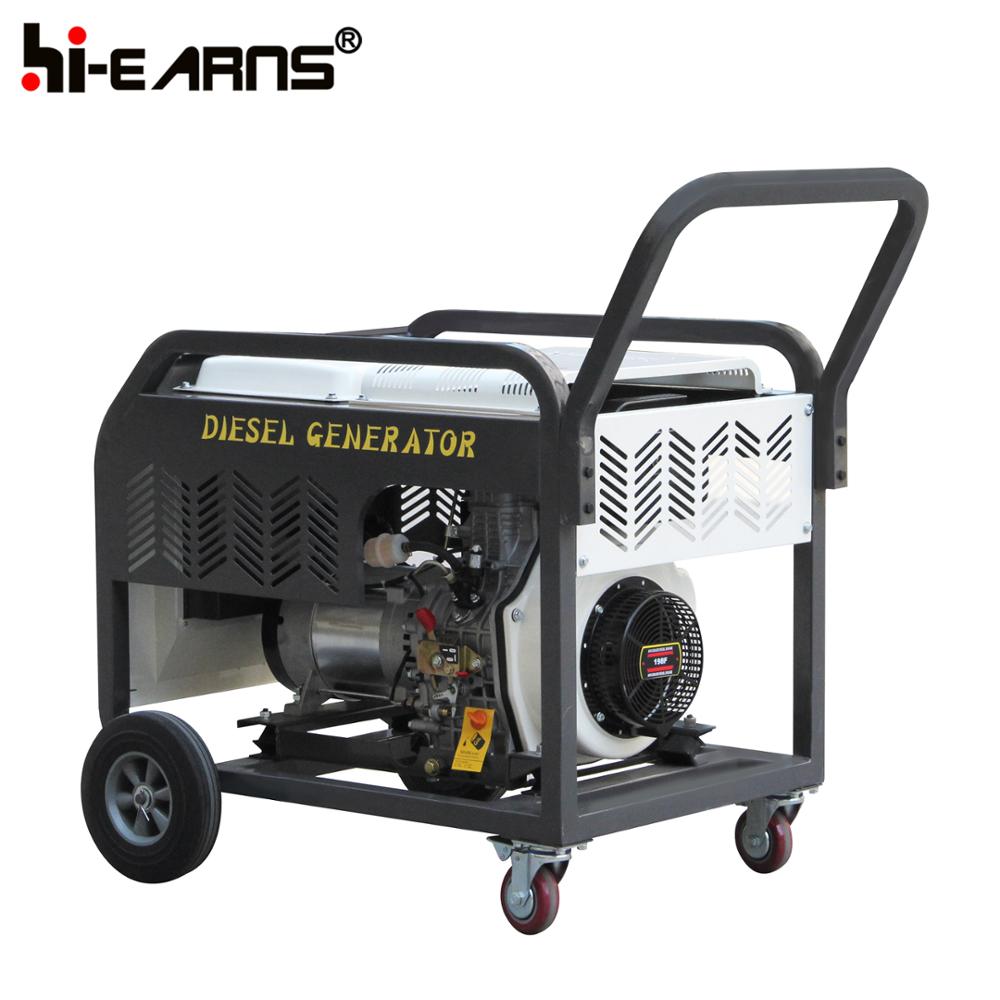

8000W open type 8kw diesel generator
GENERATOR | Model | DG11000E | |
Frequency (HZ) | 50 | 60 | |
Max. output (KW) | 8 | 8.5 | |
Rated output (KW) | 7.5 | 8 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | ||
Power factor (cosΦ) | cosΦ=1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level (at 7m) | 80~85 | ||
Fuel tank capacity (L) | 23 | ||
Continues work (H) | 10 | 9 | |
ENGINE | Model | HR198FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore×stroke (mm) | 98×84 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | optional | ||
DIMENSIONS | Dimension (L×W×H) (mm) | 950×650×765 | |
Net weight (kg) | 150 | ||
20FT | 63 |
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
