Home > Products > Air-cooled 1.5 inch high pressure 10 hp water pump diesel engine

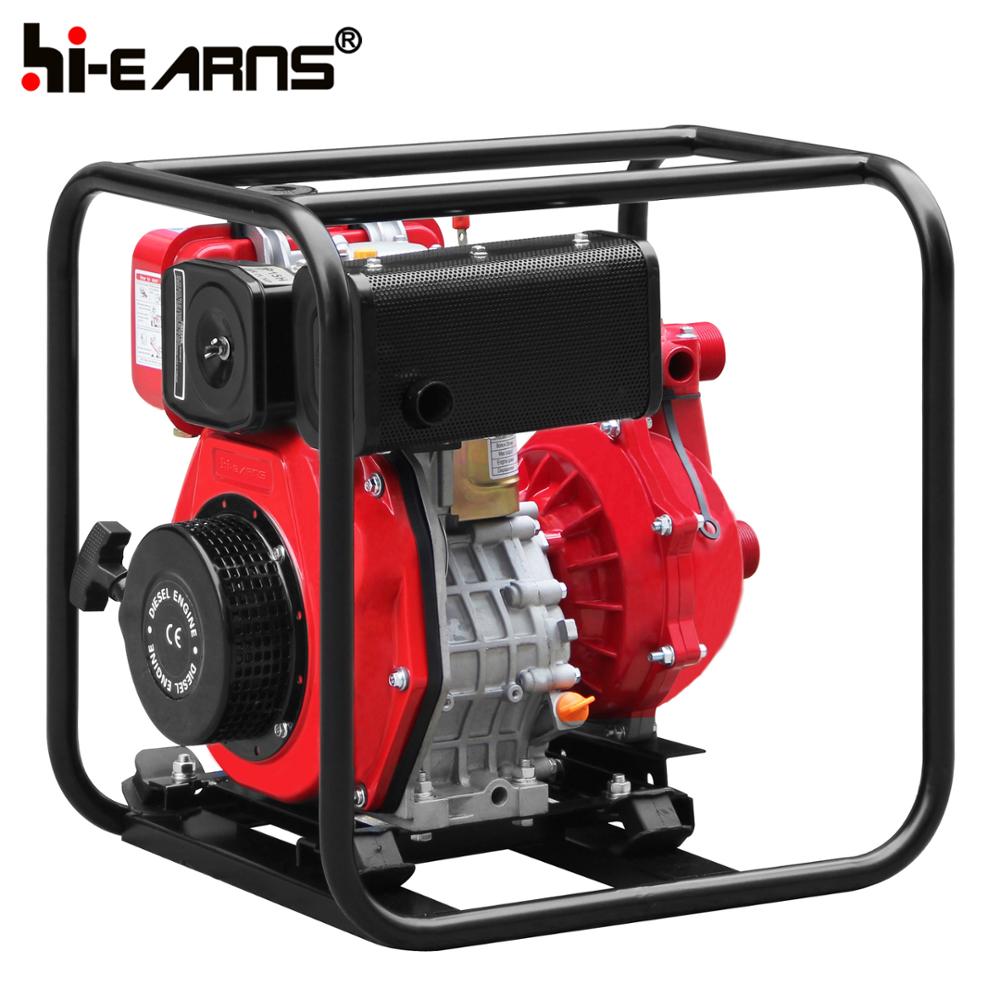

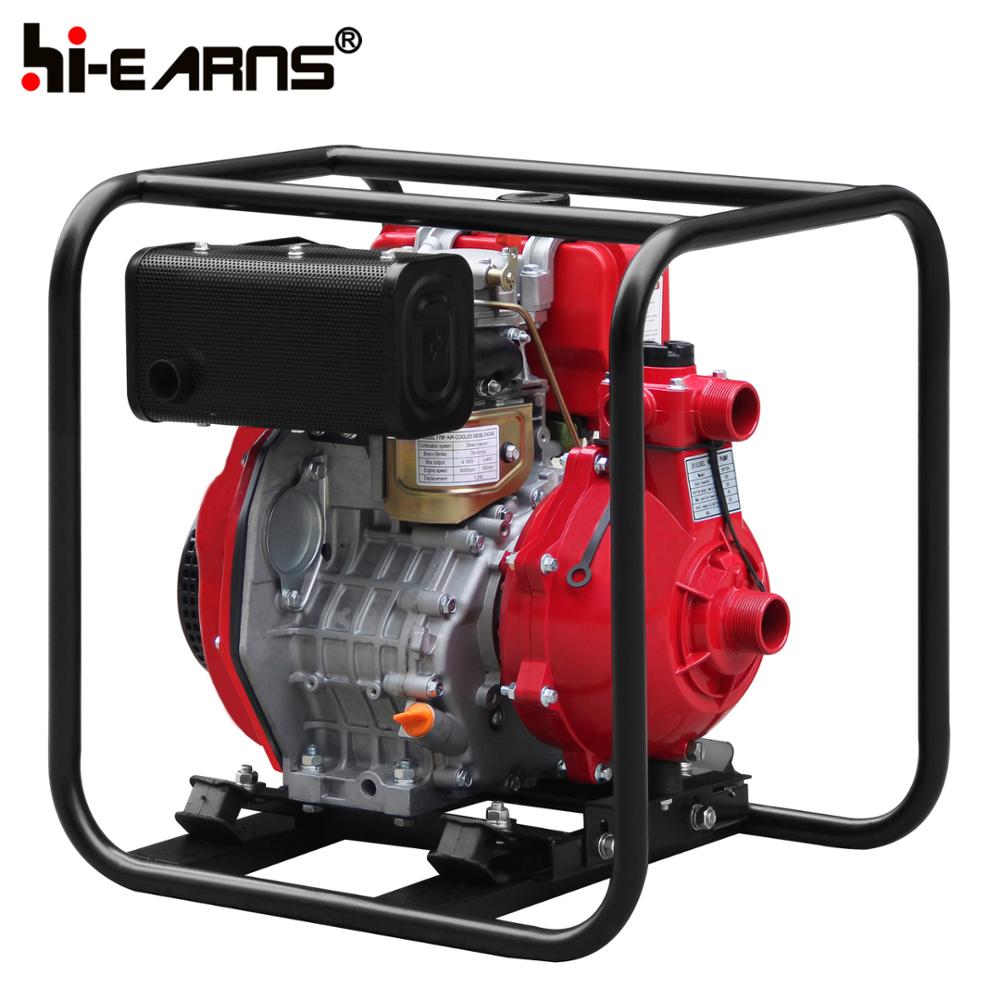

Air-cooled 1.5 inch high pressure 10 hp water pump diesel engine
Click on the image to view the original image
Product： views：3Air-cooled 1.5 inch high pressure 10 hp water pump diesel engine
Branch： Hi-earns
Type： high pressure
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
DP15H
Structure:
Piston Pump
Usage:
Water
Application:
Sewage treatment/Building system/Agricultural/Power station
Power:
Recoil start or Electric start
Fuel:
Diesel
Pressure:
High Pressure
fuel:
diesel
Type:
high pressure
Wheel:
optional
Design:
New
Engine type:
6hp-HR178F
Certificate:
ISO9001 CE
Color:
Customer Specifications
Warranty:
1 Year
Feature:
High Efficiency
Speed:
3600rpm
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
300 Piece/Pieces per Day water pumps
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Lead Time:
20 days

diesel water pump(DP15H)


WATER PUMPModelDP15H
Suction,discharge port diameter[mm(in)]40(1.5")
Cont.head(m)60
Self-priming time(s/4m)              30
Max suction head(m)8
Cont.capacity(m³/hr)18
ENGINEEngine modelHR178F
Speed(rpm)3600
Fuel consumption(g/kw.h)295
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

 296

Bore*stroke(mm)

 78*62

Starting system

Recoil or Electric
Fuel tank capacity(L)3.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)540×440×540
Net  weight(kg)42
20FT120



























Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
