Home > Products > 1.5 inch high pressure cast iron diesel engine water pump

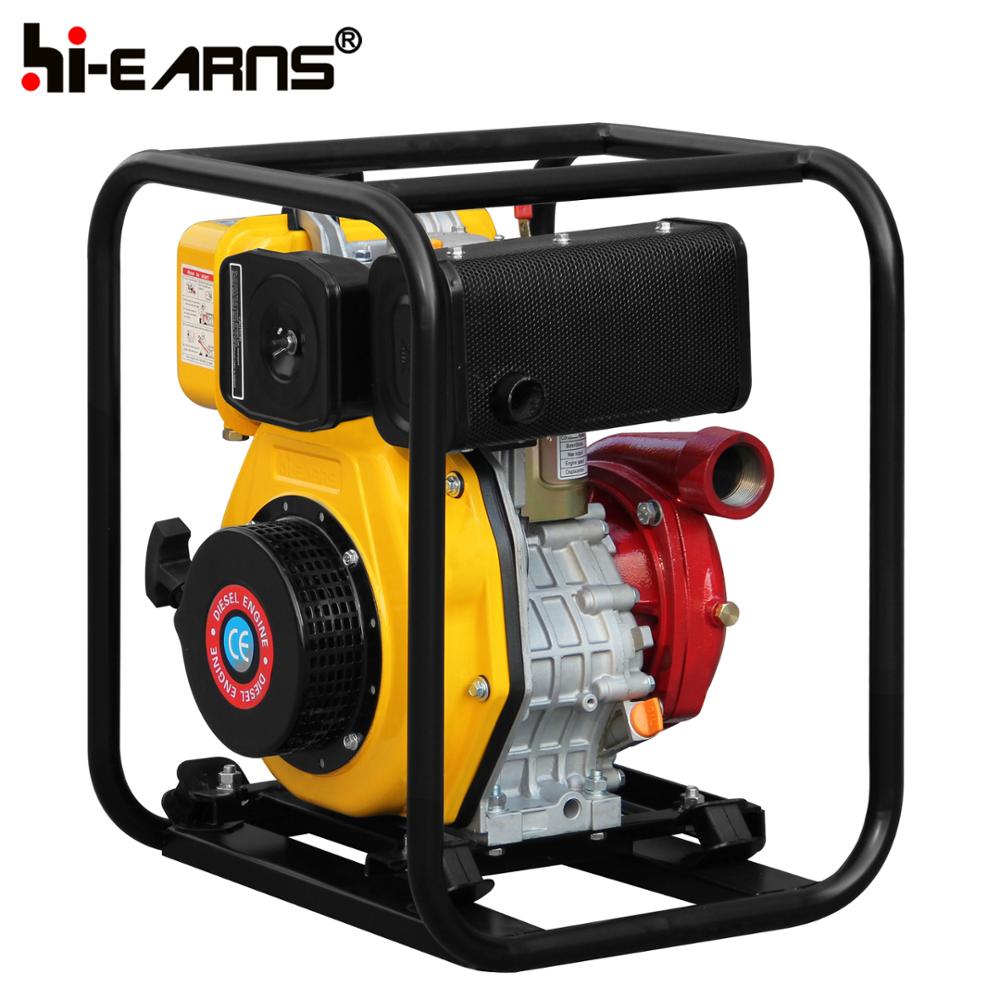

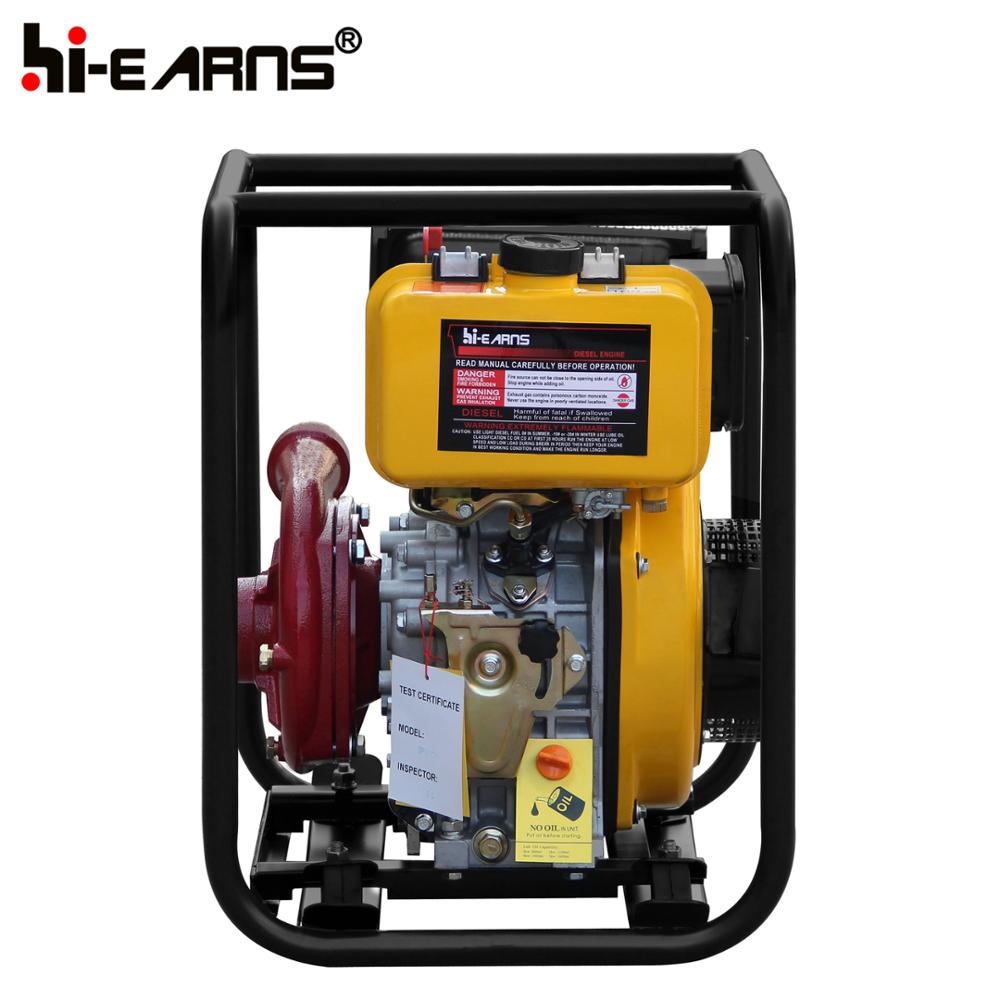

1.5 inch high pressure cast iron diesel engine water pump
Click on the image to view the original image
Product： views：41.5 inch high pressure cast iron diesel engine water pump
Branch： Hiearns or OEM
Type： Single-cylinder,vertical,4-stroke air-cooled diesel engine
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hiearns or OEM
Model Number:
DP15HCI
Structure:
Piston Pump
Usage:
Water
Application:
fire control
Power:
Electric
Fuel:
Diesel
Pressure:
High Pressure
Model:
DP20HCI
Suction,discharge port diameter(mm(in)):
50(2")/40(1.5")
HP:
6
Cont.head(m):
75
Self-priming time(s/4m):
30
Max suction head (m):
8
Cont.capacity(m3/hr):
28
Engine model:
HR178F
Speed(rpm):
3000/3600
Type:
Single-cylinder,vertical,4-stroke air-cooled diesel engine
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
500 Piece/Pieces per Day 500pcs pump water
Packaging & Delivery
Packaging Details
carton water pump
Port
Shanghai
Lead Time:
15

1.5 inch high pressure cast iron portable air cooled water pump



WATER PUMPModelDP15HCI
Suction,discharge port diameter[mm(in)]50(2")/40(1.5")
Cont.head(m)75
Self-priming time(s/4m)              30
Max suction head(m)8
Cont.capacity(m³/hr)28
ENGINEEngine modelHR178F
Speed(rpm)3000/3600
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine

Displacement(cc)

 296

Bore*stroke(mm)

 78 × 62

Starting system

Electric
Fuel tank capacity(L)5.5
STANDARD FEATURESOil alertyes
Connector of infall,Connecto of outfallyes
Filteryes
Seal ringyes
Hoopyes
DIMENSIONSDimension(L× W× H)(mm)435×450×555
Net  weight(kg)40
Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE,ISO,GS,SONCAP etc.

6.Our logo or OEM

















Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
