Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF1-300KW/400KVA
- Rated Voltage:
- 220/380V,230/400V,240/415V
- Rated Current:
- 570A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- black
- Type:
- Open and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Optional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- Three
- Engine type:
- NTA855-G7A
Supply Ability
- Supply Ability:
- 50 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25days.
3.WARRANTY:One year.
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 4 >4 Est. Time(days) 35 To be negotiated

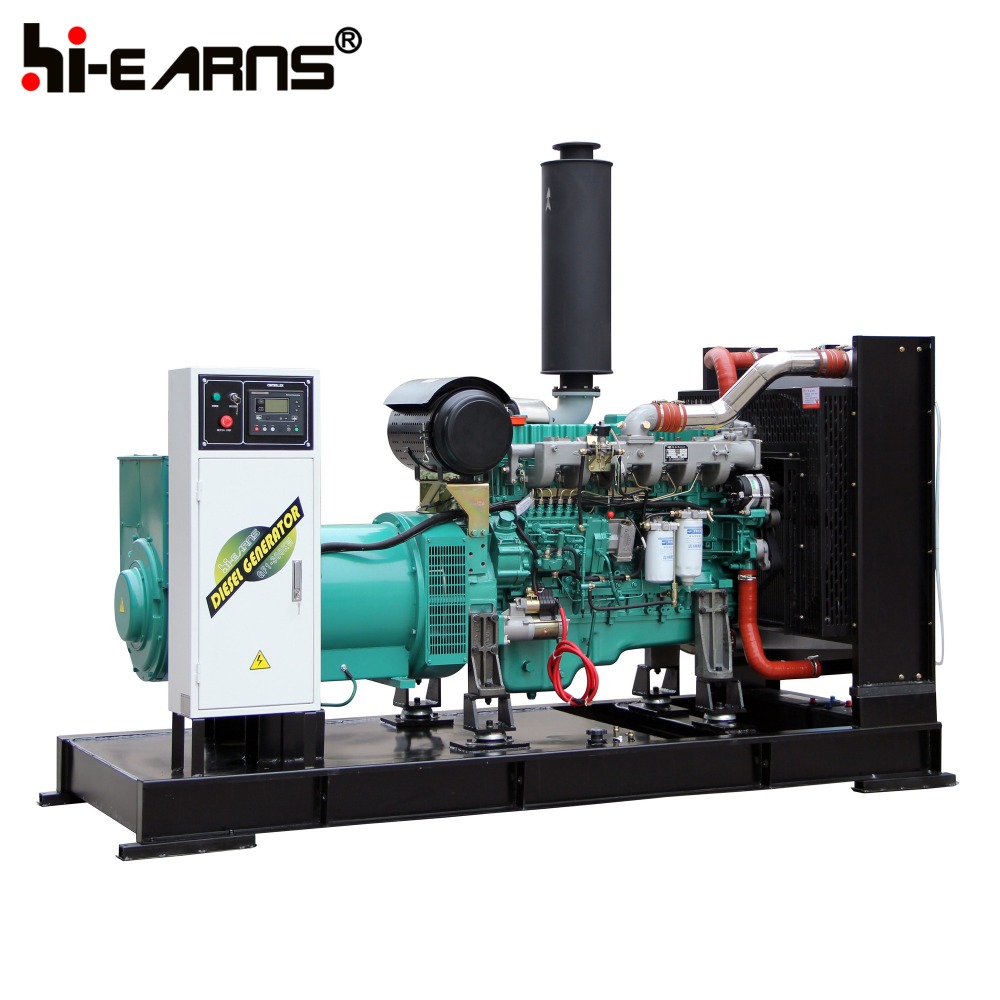

GF1-300KW/400KVA open three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254/440 | 50 | 3 | 0.8 | 541 | 330/412 | 300/380 |
| 240/415 | 50 | 3 | 0.8 | 573 | 330/412 | 300/380 |
| 230/400 | 50 | 3 | 0.8 | 595 | 330/412 | 300/380 |
| 220/380 | 50 | 3 | 0.8 | 626 | 330/412 | 300/380 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | CCEC Cummins NTA855-G7A,4-cycle | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Air Intake System | Turbo,Air/Air Cooling | |||||
| Fuel System | PT type fuel pump | |||||
| Fuel Consumption(g/kw.h) | 206.7 | |||||
| Cylinder Arrangement | 6 in line | |||||
| Displacement | 14L | |||||
| Bore×Stroke | 140×152(mm) | |||||
| Compression Ratio | 14.0:1 | |||||
| Rated RPM | 1500rpm | |||||
| Max.Standby Power at Rated RPM | 377KW / 513HP | |||||
| Governor Type | Electronic | |||||
| Max Water Temperature | 104℃ | |||||
| ALTERNATOR DATA | ||||||
| Number of Phase | 3 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Number of Bearing | 1 | |||||
| Power Factor | 0.8 | |||||
| Protection Grade | IP23 | |||||
| Altitude | ≤1000m | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Alternator Capacity | 400KVA | |||||
| Alternator Efficiencies | 93% | |||||
| Air Cooling Flow | 0.8m3/s | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:3.25(m)×1.1(m)×1.85(m) | Overall Size:4.225(m)×1.46(m)×2.15(m) | |||||
| Weight:3200kg | Weight:4200kg | |||||
