Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG12000SE
- Rated Voltage:
- 220V
- Rated Current:
- 38.6A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ
- type:
- air cooled 2 cylinder 8KW generator parts carburetor
- single phase or 3 phase:
- optional
- generator color:
- optional, depend on you
- portable type:
- portable type, with 4 wheels and handles
- voltage:
- optional, depend on you
- Alternator:
- 100% copper
- Certificate:
- CE/ISO9001
- Product Name:
- air cooled 2 cylinder 8KW generator parts carburetor
- Warranty:
- 1 Year
- Engine:
- Chinese Engine
- Supply Ability:
- 20 Piece/Pieces per Day
- Packaging Details
- carton with wooden pallet
- Port
- Shanghai or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 6 - 100 >100 Est. Time(days) 15 20 To be negotiated

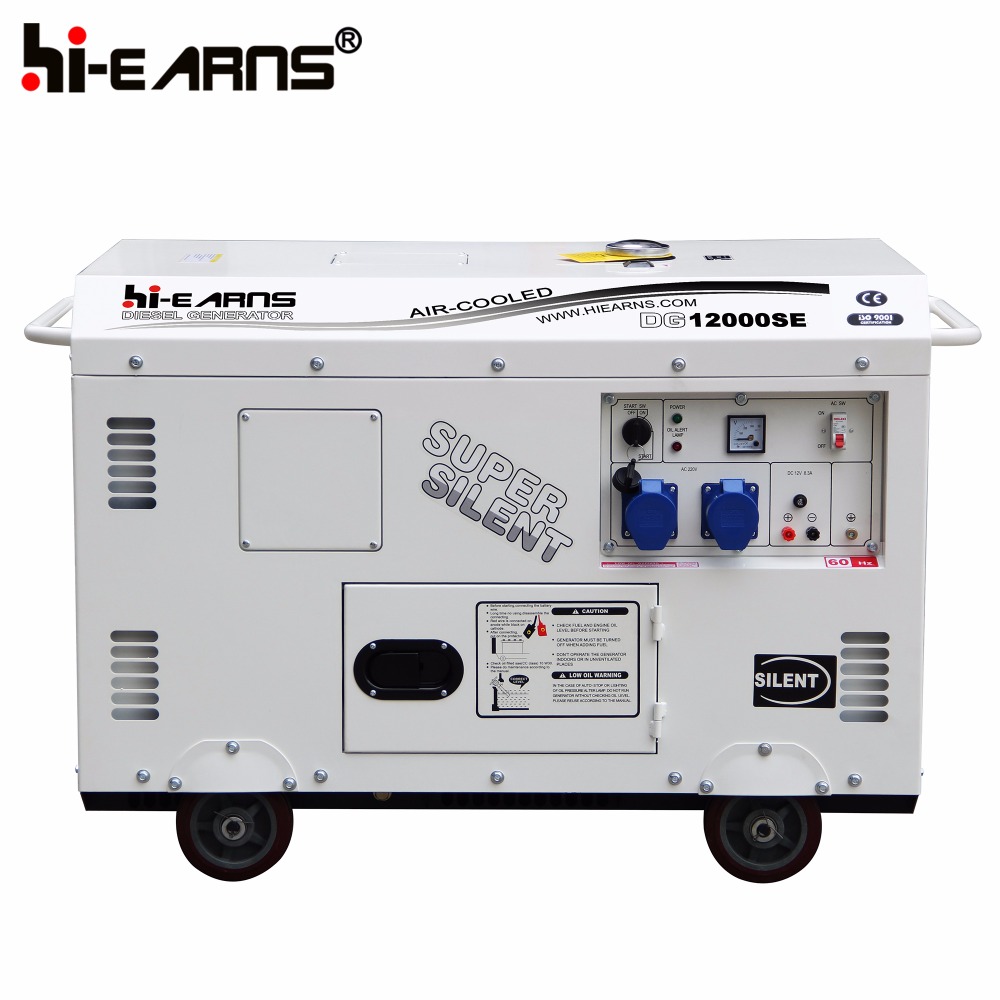

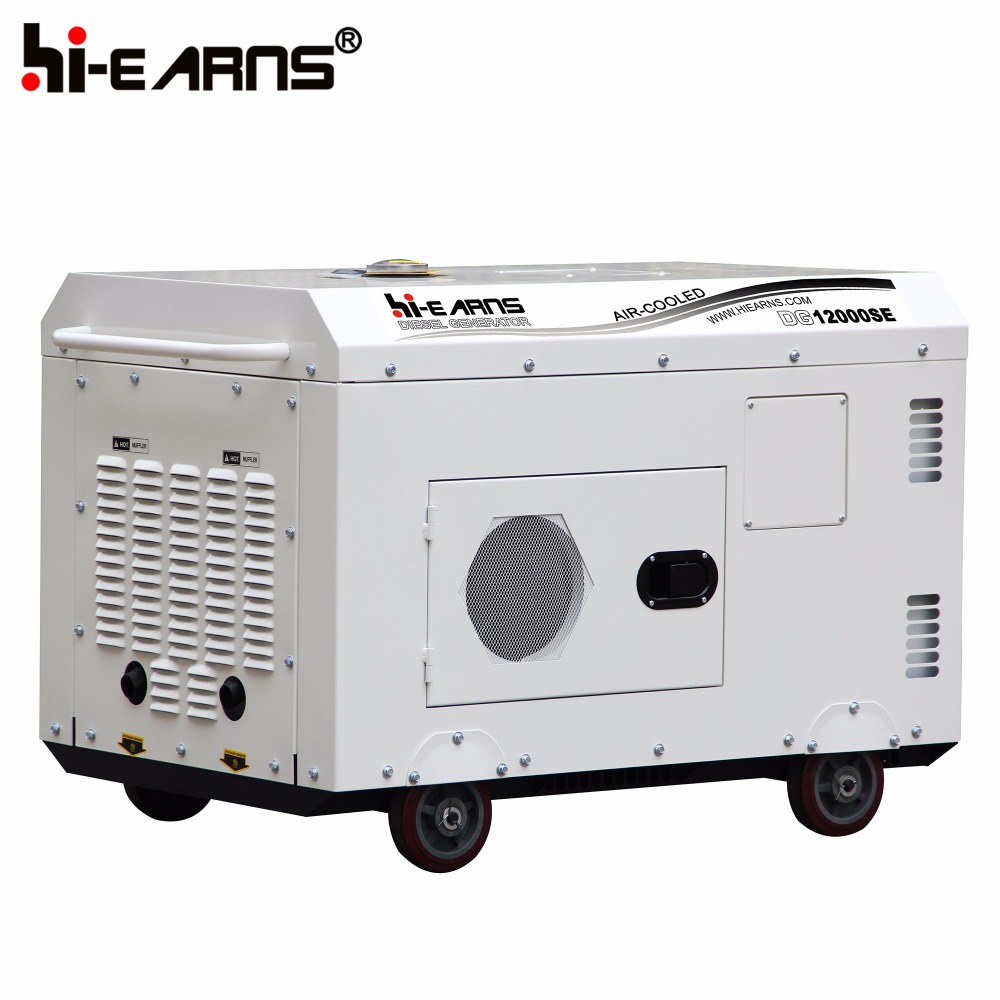

air cooled 2 cylinder 8KW generator parts carburetor
♦ Use good brand spare parts, 100% copper
♦ Portable type, with four wheels, easy to move, major product, competitive price advantage with big power
♦ We are factory, have low price spare parts and timely technical support.
GENERATOR | Model | DG12000SE | |
Frequency(HZ) | 50 | 60 | |
Max.output(KW) | 9.5 | 10 | |
Rated output(KW) | 8.5 | 9.5 | |
Rated.AC voltage(V) | 120,220,230,240 | ||
Power factor(cosΦ) | COSΦ=1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited,2-pole,single phase alternator | ||
Starting system | Electric | ||
Noise level(at 7m) | 80 | ||
Fuel tank capacity(L) | 30 | ||
Continues work(H) | 9.4 | 8.4 | |
ENGINE | Model | 2V86F | |
Engine type | two-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Borexstroke(mm) | 86x72 | ||
Fuel | 0# or -10# light diesel oil | ||
Lubrication oil volume(l) | 1.7 | ||
Combustion system | Direct injection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | no | ||
DIMENSIONS | Dimension(LxWxH)(mm) | 1230x760x880 | |
Dry weight(kg) | 265 | ||
20FT | 26 | ||
