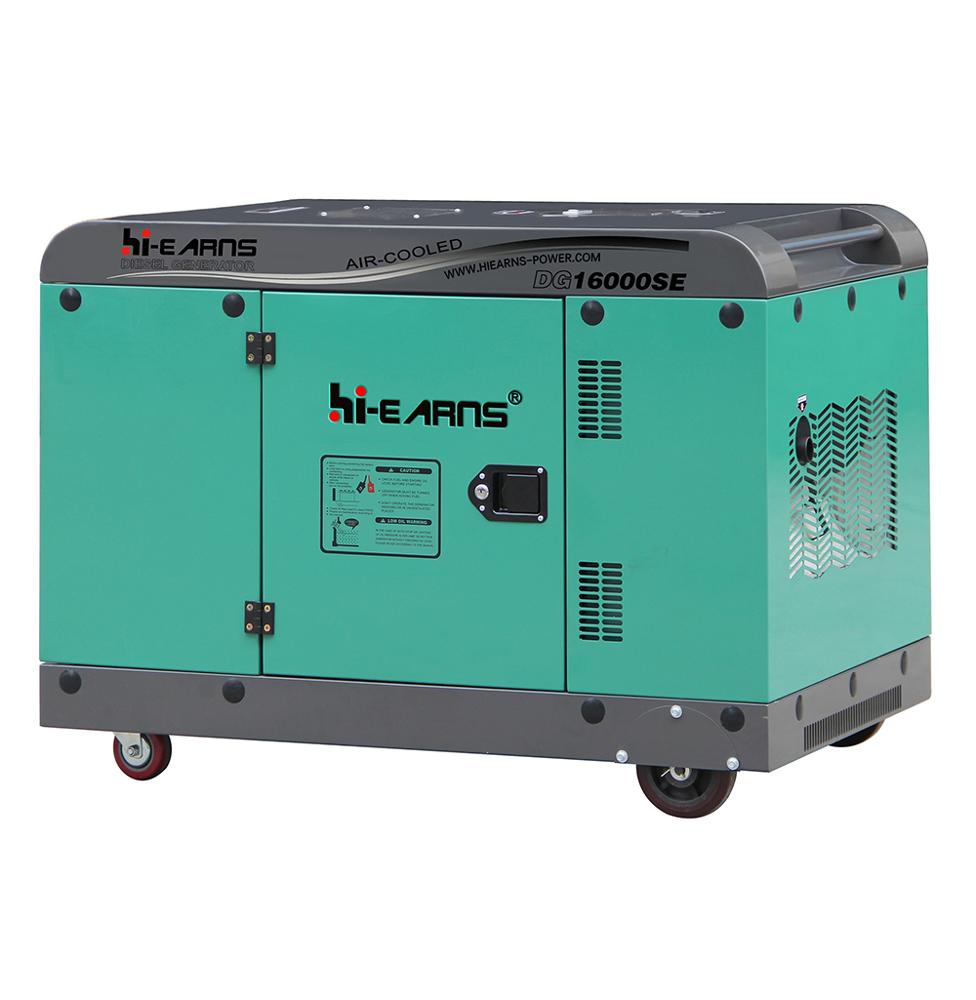

Hot sale single phase 12kw diesel generator DG16000SE
| Model | DG16000SE | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 13 | |
| Rated output(KW) | 12 | |
| Rated AC voltage(V) | 120,220,230,120/240,220/380, 230/400 | |
| Power factor | 0.8 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase/Three phase | |
| Alternator type | Self-excited,2-pole, Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 75 | |
| Fuel tank capacity(L) | 30 | |
| Continuous work(H) | 8 | |
| ENGINE | Engine Model | HR2V92FA |
| Engine Type | Twin cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 92×75 | |
| Fuel Consumption rate g/kw/h | ≤230 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 4 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 1210x820x930 |
| Net Weight(kgs) | 310 | |
| Gross Weight (kgs) | 325 | |
| 20FT loading pcs | 24 | |
| 40HQ loading pcs | 48 | |
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
We continuously introducing advanced production technology, realize the automatic production, testing lines.
1set/cartons 3% discount wholesale diesel generator
* We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
* CE, ISO certificates. We have been making good progress.
Shirley
E-mail: server001@ hiearns.com
Mobile: 0086-13382857771
Wechat/QQ: 13382857771/ 2257268504
Website: www.hiearns-power.com
Add: Lijia town, Wujin, Changzhou, Jiangsu province, China.
