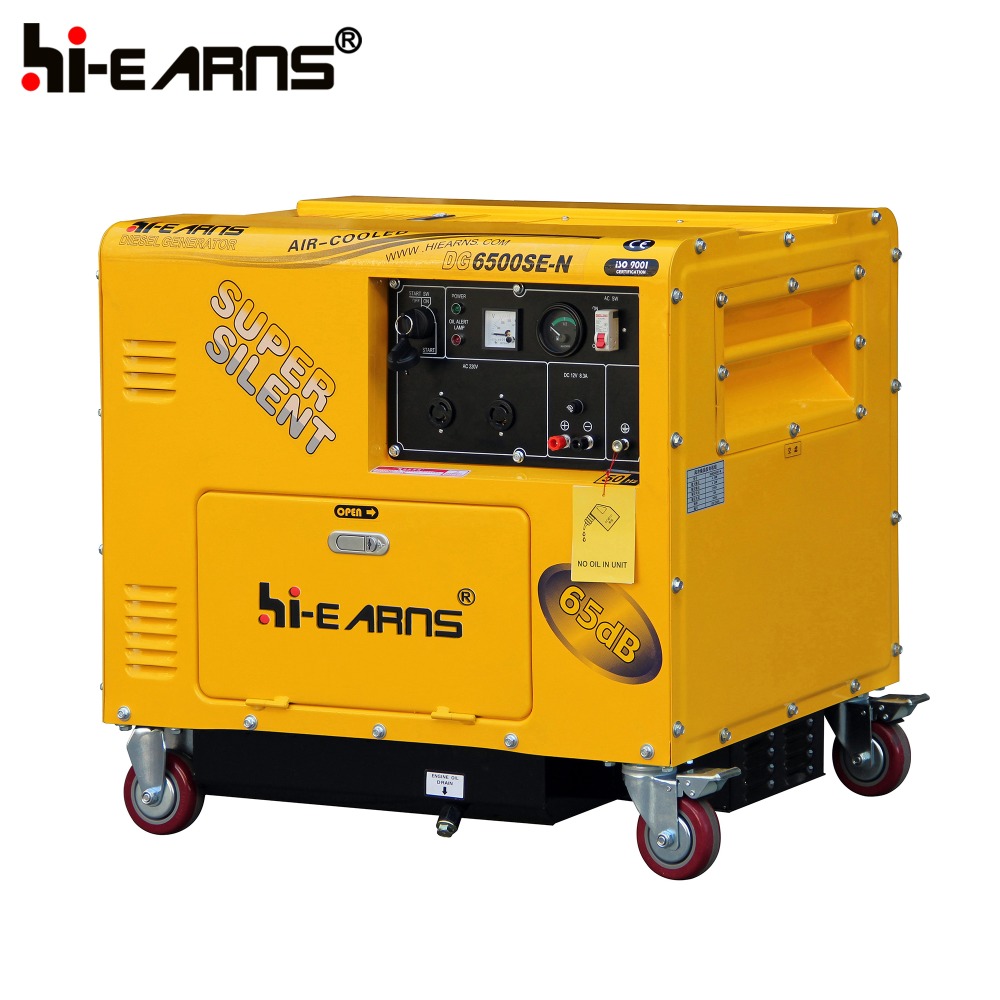

DG6500SE3 5KW silent electric air cooled diesel generator
| GENERATOR | Model | DG6500SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 220/380V, 230/400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited, 2-pole, three phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 740 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system,to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packagine for products.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
