Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE
- Rated Voltage:
- 220/230/240V
- Rated Current:
- 34A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50HZ/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /universal wheel
- Design:
- New
- Noise:
- 68-72dB
- Power factor:
- 1
- Phase:
- Single
- Engine type:
- HR198FA
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 113X78X86 cm
- Single gross weight:
- 210.0 kg
- Package Type:
- Carton with plastic film.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 10 20 To be negotiated

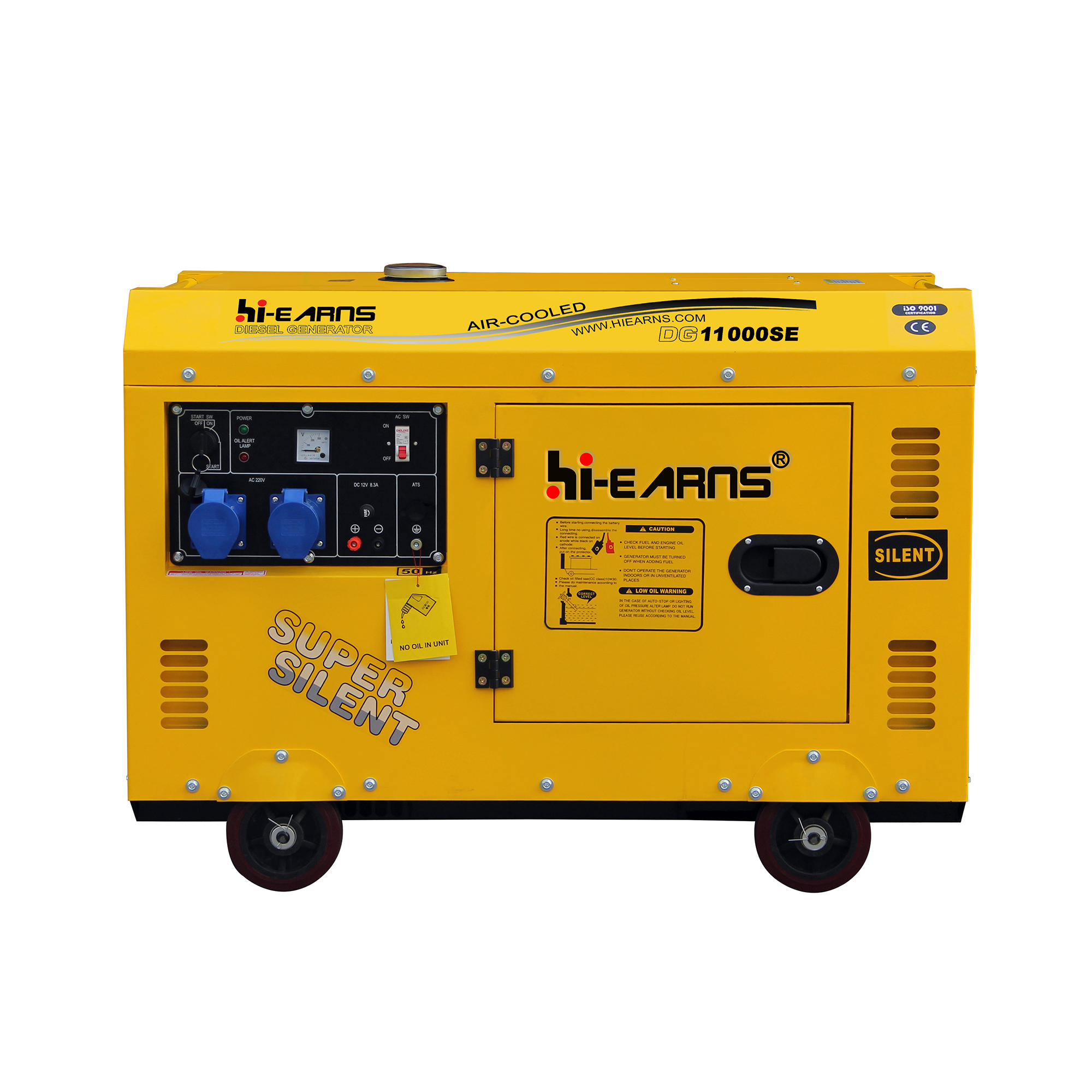

| GENERATOR | Model | DG11000SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 8.0 | 8.0 | |
| Rated output(kw) | 7.5 | 7.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 72~75 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 12 | 11 | |
| ENGINE | Model | HR198FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 98× 84 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1130× 780× 860 | |
| Net weight(kg) | 210 | ||
| 20FT | 30 | ||
air-cooled generator
