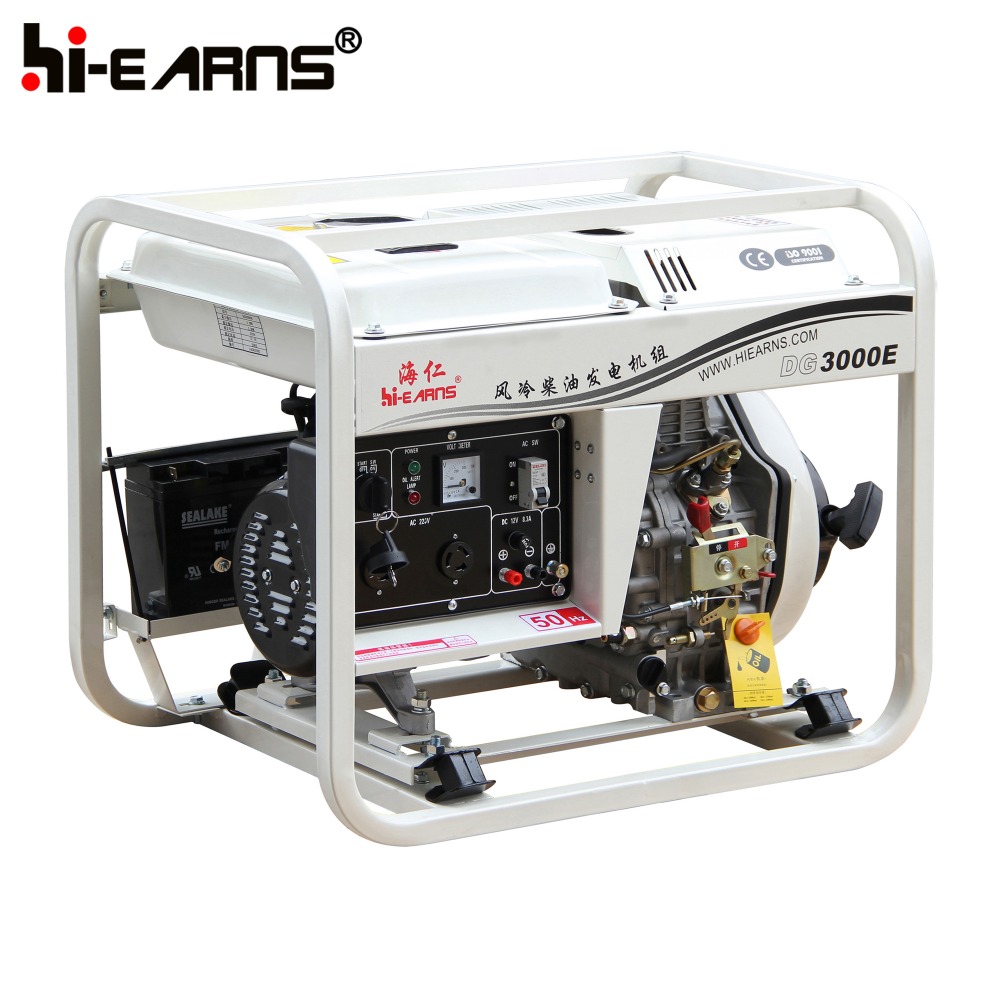

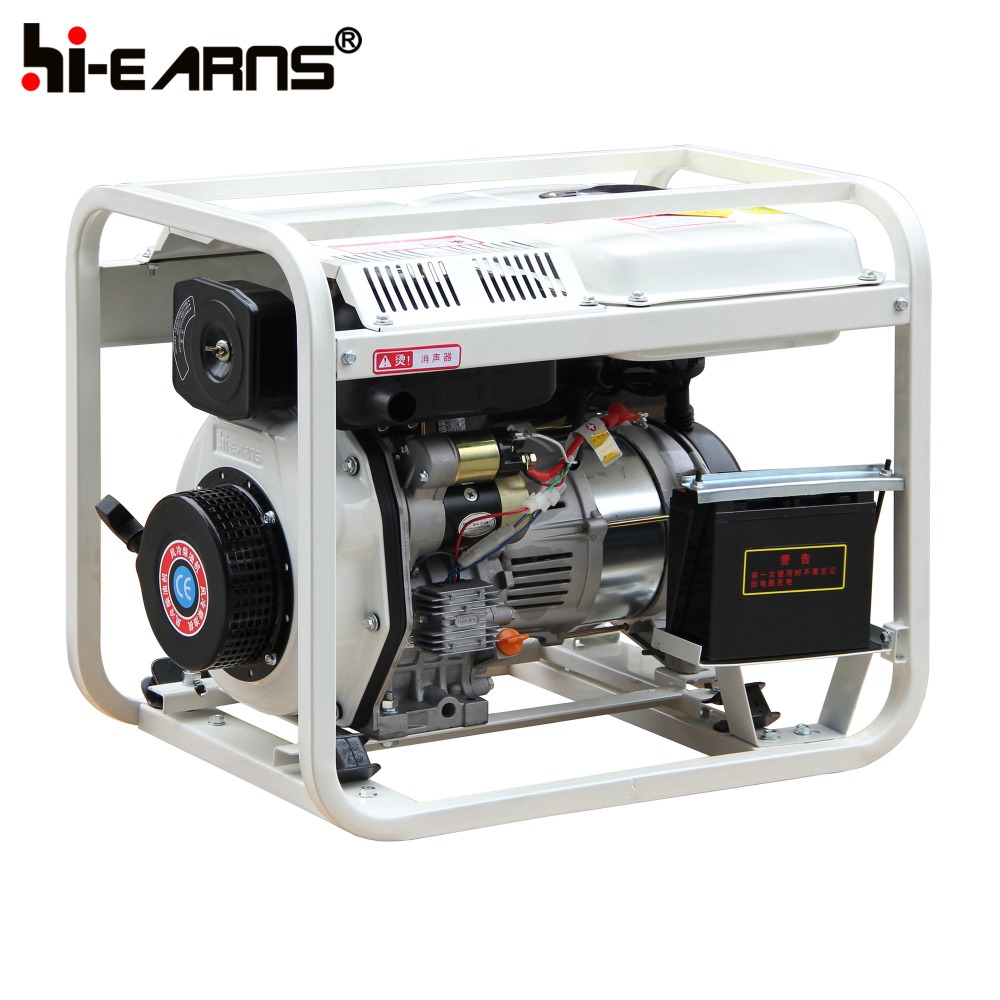

3KVA Small Portable Home Generator 20AH battery Open Diesel Generator

Click on the image to view the original image

Product：	views：103KVA Small Portable Home Generator 20AH battery Open Diesel Generator
Branch：	Hi-earns
Type：	Open and electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: DG3000E

Rated Voltage:: 120,220,230,240V

Rated Current:: 13A

Speed:: 3000/3600RPM

Frequency:: 50HZ/60HZ

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Type:: Open and electric

Panel:: Common/digital/ATS

Structure:: Open frame

Noise:: 80-85dB

Power factor:: 1

Phase:: Single

Design:: New

Wheel:: 4inch solid rubber wheel

Engine type:: HR178F

Supply Ability

Supply Ability:: 300 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: Packaging details:Carton with plastic film
Packaging size:70X48X59cm
Delivery time: 20 days
One 20FT can load 144 pcs.
One 40HQ can load 280pcs.

Port: FOB Shanghai

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 20	>20
Est. Time(days)	10	To be negotiated

Related Products

1.Low fuel consumption,big fuel tank

2.Electric or recoil start system with four wheel

3.CE,GS,EPA,ISO9001

4.Good quality and after sales service

3KVA open type electric air cooled diesel generator

GENERATOR	Model	DG3000E
	Frequency(HZ)	50	60
	Max. output(kw)	3.0	3.3
	Rated output(kw)	2.8	3.0
	Rated. AC voltage(v)	120, 220, 230, 240
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Single phase
	Alternator type	self-excited
	Starting system	Recoil or Electric
	Operating noise level(at 7m)	80~85
	Fuel tank capacity(L)	12.5
	Continues work(hr)	9.7	9
ENGINE	Model	HR178F
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	78×62
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.1
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	No
DIMENSIONS	Dimension(L× W× H)(mm)	670×470×560
	Net weight(kg)	64
	20FT	144

Product Description

Field of Application

♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
