- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000E
- Rated Voltage:
- 120,220,230,240V
- Rated Current:
- 21A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50HZ/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- open and electric
- Panel:
- Common
- Wheel:
- 10inch big rubber solid wheel
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single
- Engine type:
- HR186FA
- Price:
- More competitive
- Supply Ability:
- 300 Piece/Pieces per Day
- Packaging Details
- Packaging details:Carton with plastic film.
Packaging size:76X51X63cm.
Delivery time: 20 days.
One 20FT can load 102 pcs.
One 40HQ can load 200pcs.
- Port
- Shanghai port
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 >50 Est. Time(days) 10 20 To be negotiated

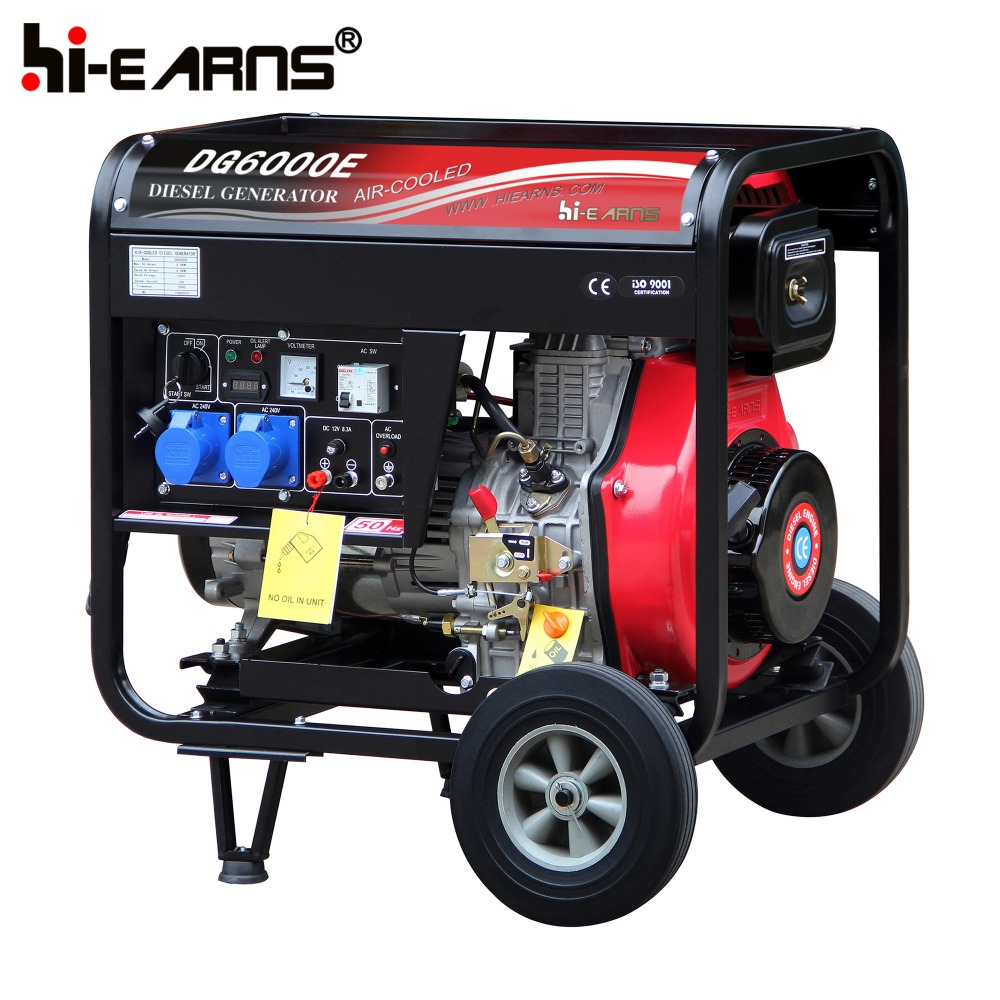

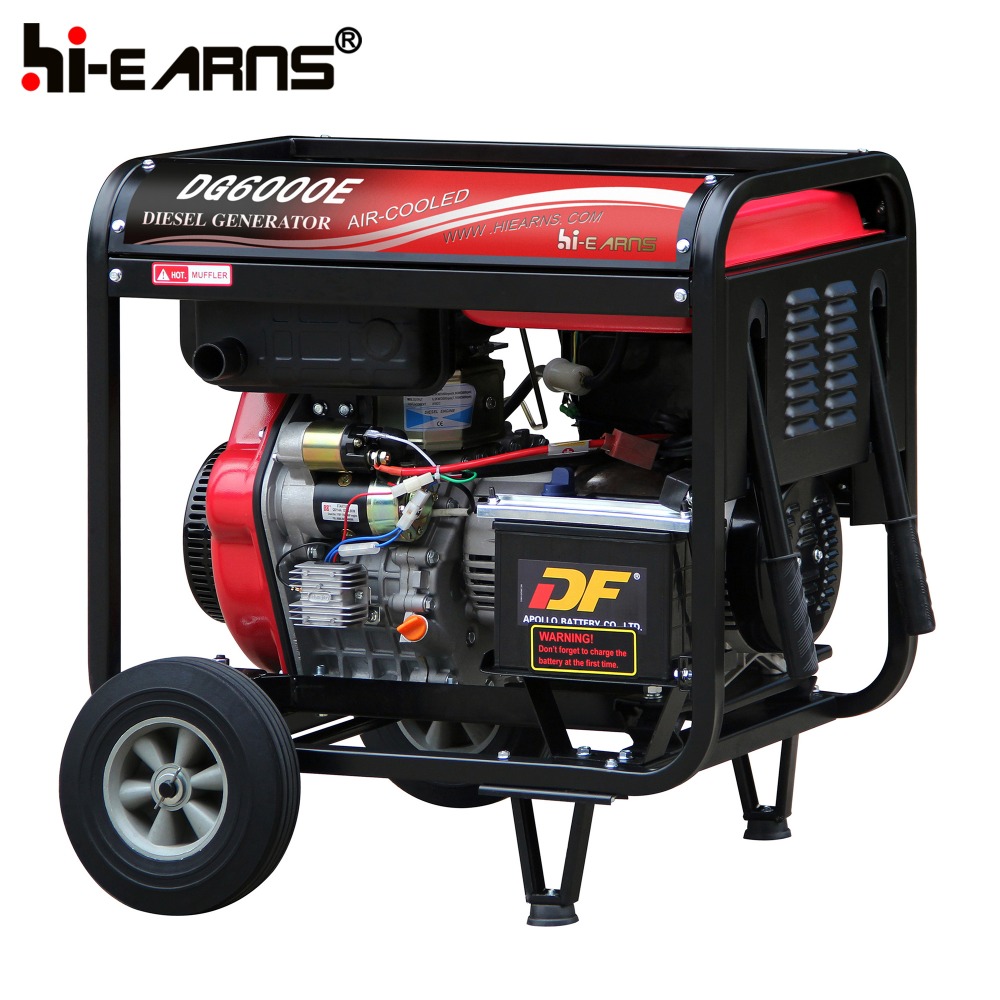

DG6000E 5KW open type air cooled diesel generator
GENERATOR | Model | DG6000E | |
Frequency(HZ) | 50 | 60 | |
Max. output(kw) | 5 | 5.5 | |
Rated output(kw) | 4.6 | 5 | |
Rated. AC voltage(v) | 120, 220, 230, 240 | ||
Power factor(cosΦ ) | cosΦ =1 | ||
DC output (v) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level(at 7m) | 80~85 | ||
Fuel tank capacity(L) | 12.5 | ||
Continues work(hr) | 6.5 | 6 | |
ENGINE | Model | HR186FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke(mm) | 86×72 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume(L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
Welding | optional | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 755× 520×630 | |
Net weight(kg) | 104 | ||
20FT | 102 |
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE,ISO,GS,SONCAP etc.
6.Our logo or OEM
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
