Home > Products > 2KW 60HZ Air-cooled single cylinder diesel generator welding machine

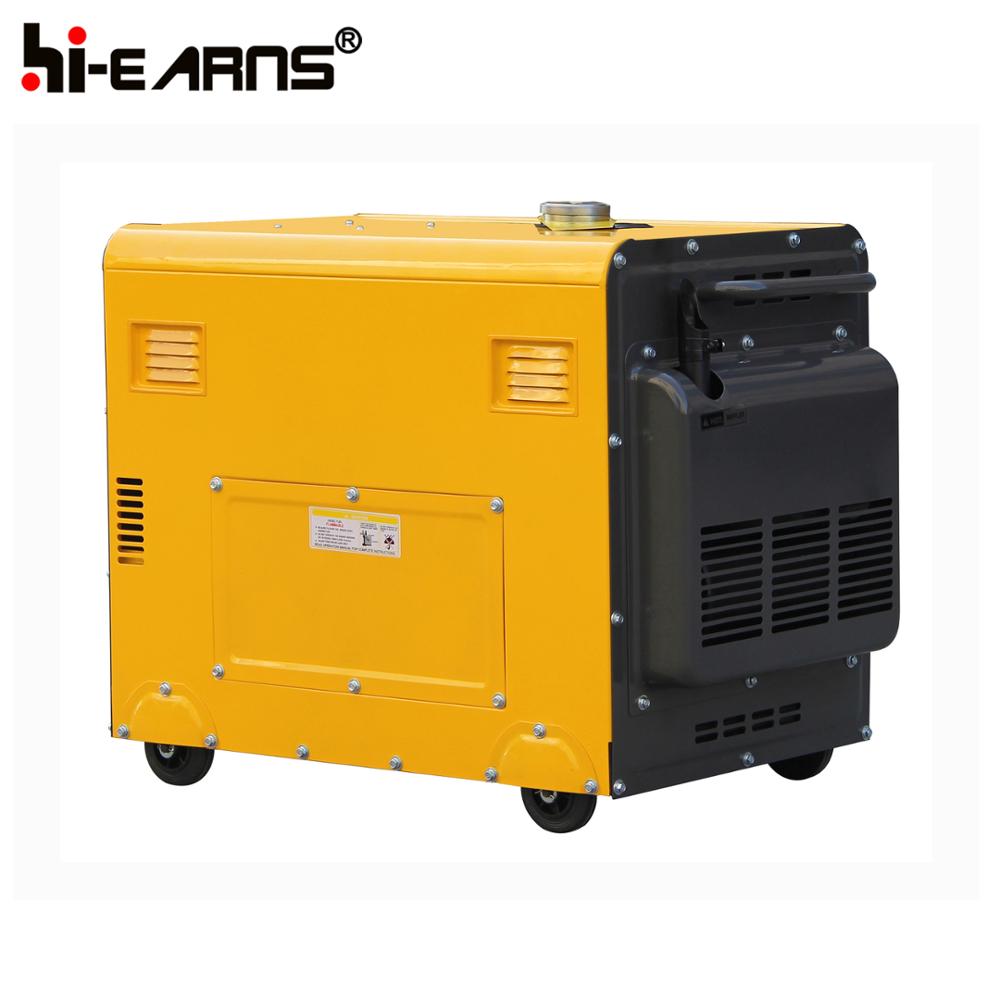

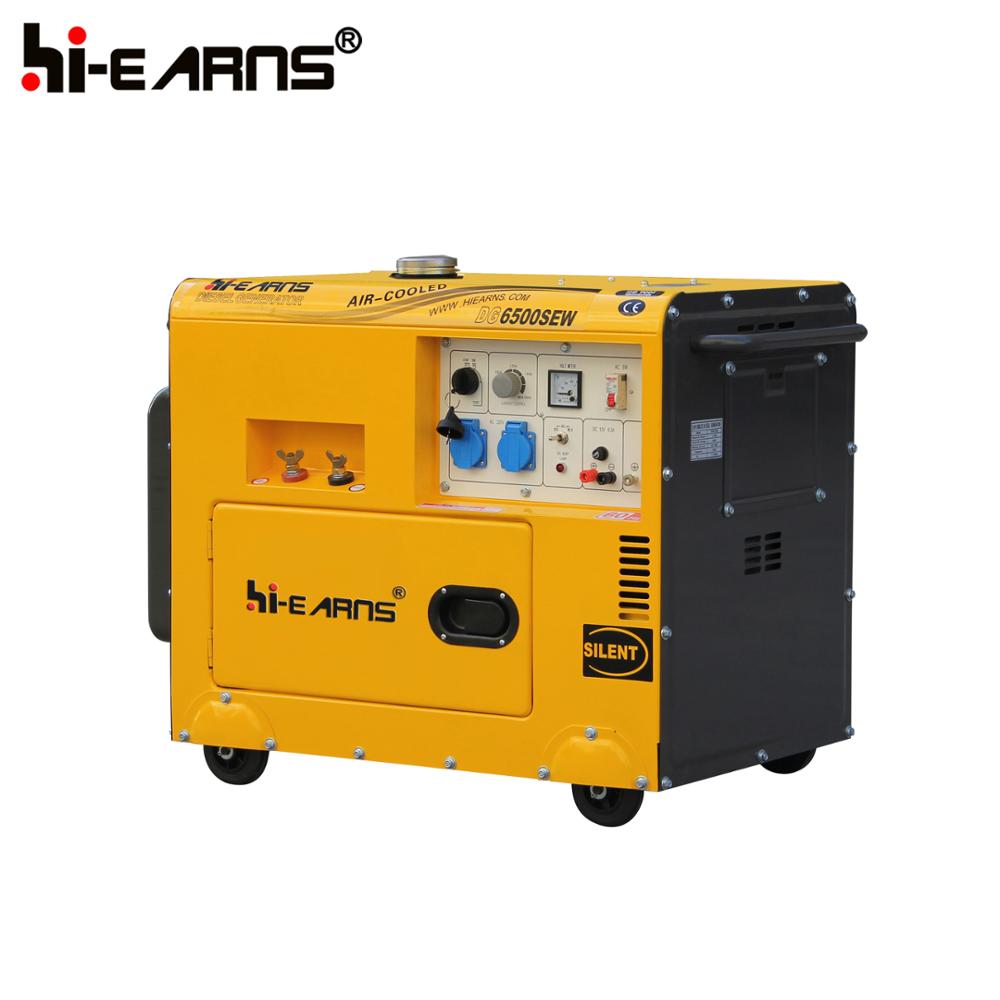

2KW 60HZ Air-cooled single cylinder diesel generator welding machine
Click on the image to view the original image
Product： views：32KW 60HZ Air-cooled single cylinder diesel generator welding machine
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
DG6500SEW
Rated Power:
2KW
Output Type:
AC Single Phase
Rated Voltage:
220V
Rated Current:
0-180A
Speed:
3000rpm/3600rpm
Frequency:
60HZ
Diesel generator:
Air-cooled diesel generator sets
Main function:
Welder
Welding current:
0-180A
Welding rod diameter:
3.2mm-4.0mm
Alternator:
100% copper wires
Engine:
186FA
Color:
Request
Certificate:
CE/ISO9001
Warranty:
1 Year
Options:
Customer's Logo
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton with wooden plate
Port
FOB SHANGHAI
Lead Time:
25days

Welding generator




GENERATOR



ModelDG6500SEW
Frequency(HZ) 5060
Rated.AC voltage(V)  230220
Rated current(A) 7.89.1
Rated output(KVA)1.82.0
Rated speed(rpm)3000 3600



WELDER



Welding no-load voltage(V)55-65
Working voltage(V)26-30
Rated current (A)160
Range of current(A)                      0-180
Welding efficiency60%
Power factor (cosΦ )1
Phase1
Noise level(at 7m)68-72db



ENGINE

Engine modelHR186FA
Engine typeSingle-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm)86×72
Displacement capacity(cc)418cc
Fuel0# or -10# light diesel fuel
Lubrication oil volume(L)1.65
Combustion systemDirect lnjection
STANDARD FEATURESVoltmeteryes
AC Output Socket2
AC circuit breakeryes
Oil warning lightyes
Oil alertyes
OPTIONAL FEATURESDC circuit breakeroptional
Calculagraphoptional
Big Wheeloptional
Three phase voltageoptional
DIMENSIONSDimension(L× W× H)(mm)950× 520×760
Net  weight(kg)160
20FT72





Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

Company Information
Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
