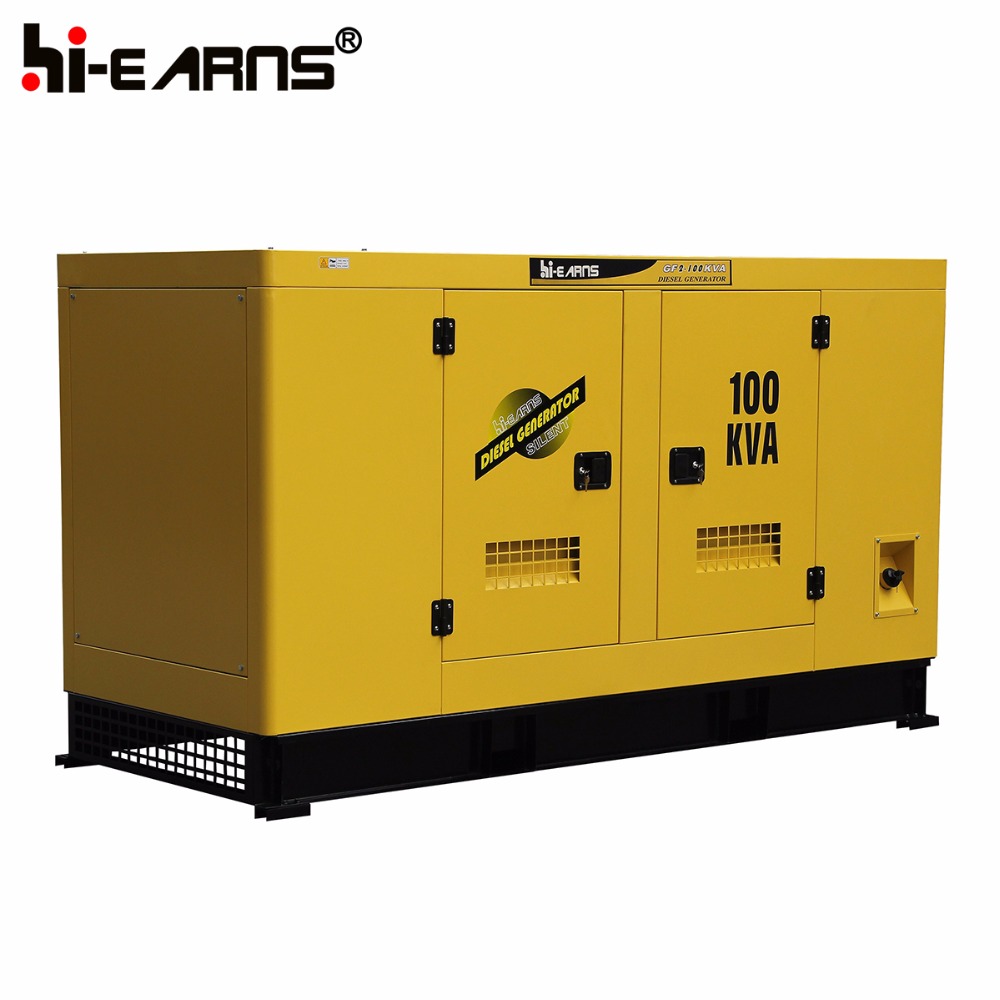

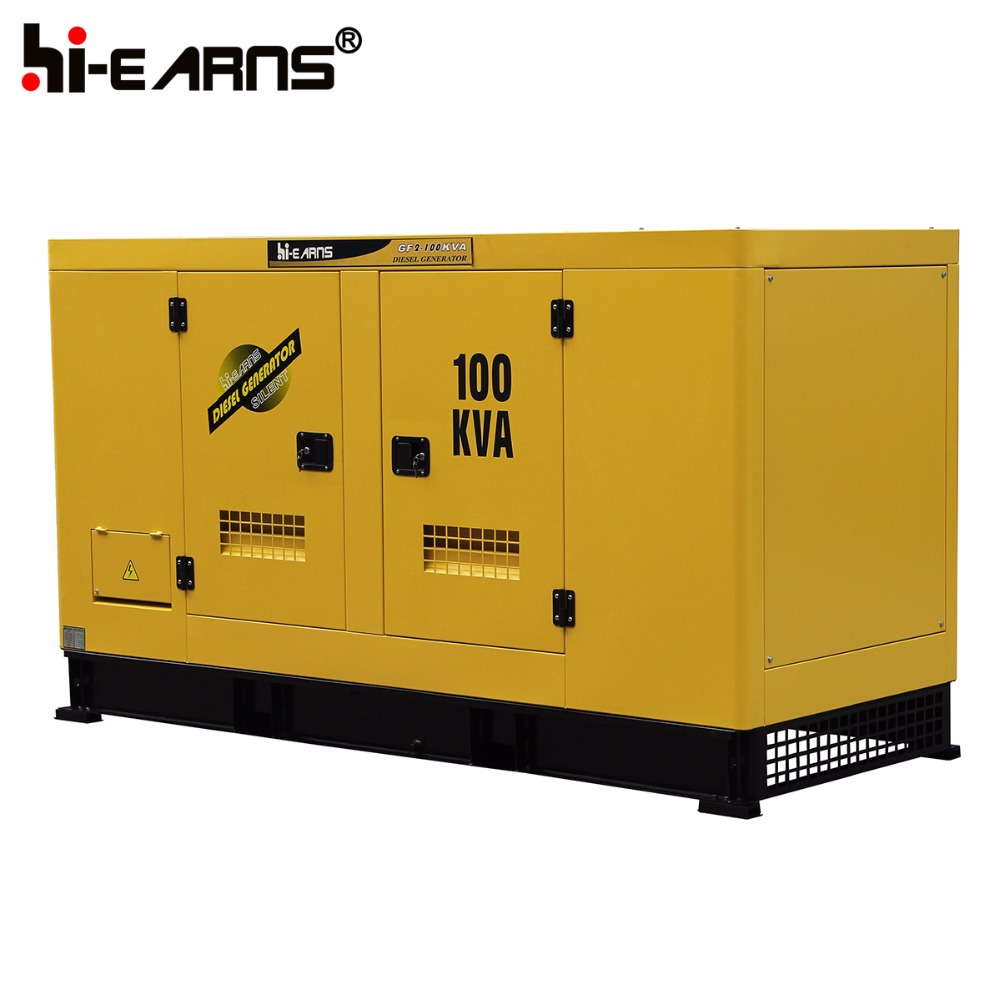

water cooled engine silent 100kva diesel generator price GF2-100KVA
| Model | GF2-100KVA | |
| Standby power(50HZ) | 87KW/109KVA | |
| Prime power(50HZ) | 80KW/100KVA | |
| Voltage(V) | 220/380V | |
| Phase | 3 | |
| P.F(COSφ) | 0.8 | |
| Standby Amps(A) | 165 | |
| Engine type | DCEC Cummins 6BT5.9-G1/G2, 4-stroke | |
| Air intake system | turbo | |
| Fuel system | A/AD type fuel pump | |
| Fuel consumption(g/kw.h) | ≤ 214 | |
| Cylinder arrangement | 6 in line | |
| Displacement | 5.9L | |
| Bore x Stroke | 102 x 120(mm) | |
| Compression Ratio | 17.5:1 | |
| Rated RPM | 1500rpm | |
| Max.Standby Power at Rated RPM | 92KW/125HP | |
| Governor Type | RSV Mechanical(Std)/Electronic(optional) | |
| Max Water Temperature | 104 degree celsius | |
| Alternator Data | ||
| Number of Phase | 3 | |
| Connecting Type | 3 Phase and 4 Wires, "Y" type connecting | |
| Number of Bearing | 1 | |
| Power Factor | 0.8 Lag | |
| Protection Grade | IP23 | |
| Altitude | ≤ 1000m | |
| Exciter Type | Brushless, self-exciting | |
| Insulation Class,Temperature Rise | H/H | |
| Telephone Influence Factor(TIF) | <50 | |
| THF | <2% | |
| Voltage Regulation, Steady State | ≤±1% | |
| Alternator Capacity | 100KVA | |
| Alternator Efficiencies | 90.40% | |
| Air cooling Flow | 0.514m3/s | |
| Overall Size | 2.7x1.1x1.5(m) | |
| Weight | 1900kg | |
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
1.We actively attend every internal and international fair to show our products.
2.Our business line covers all over the world, we are looking forward to cooperate with you.
3.Any time you need us, we are here!
