Home > Products > 4hp small power tiller engine 170F

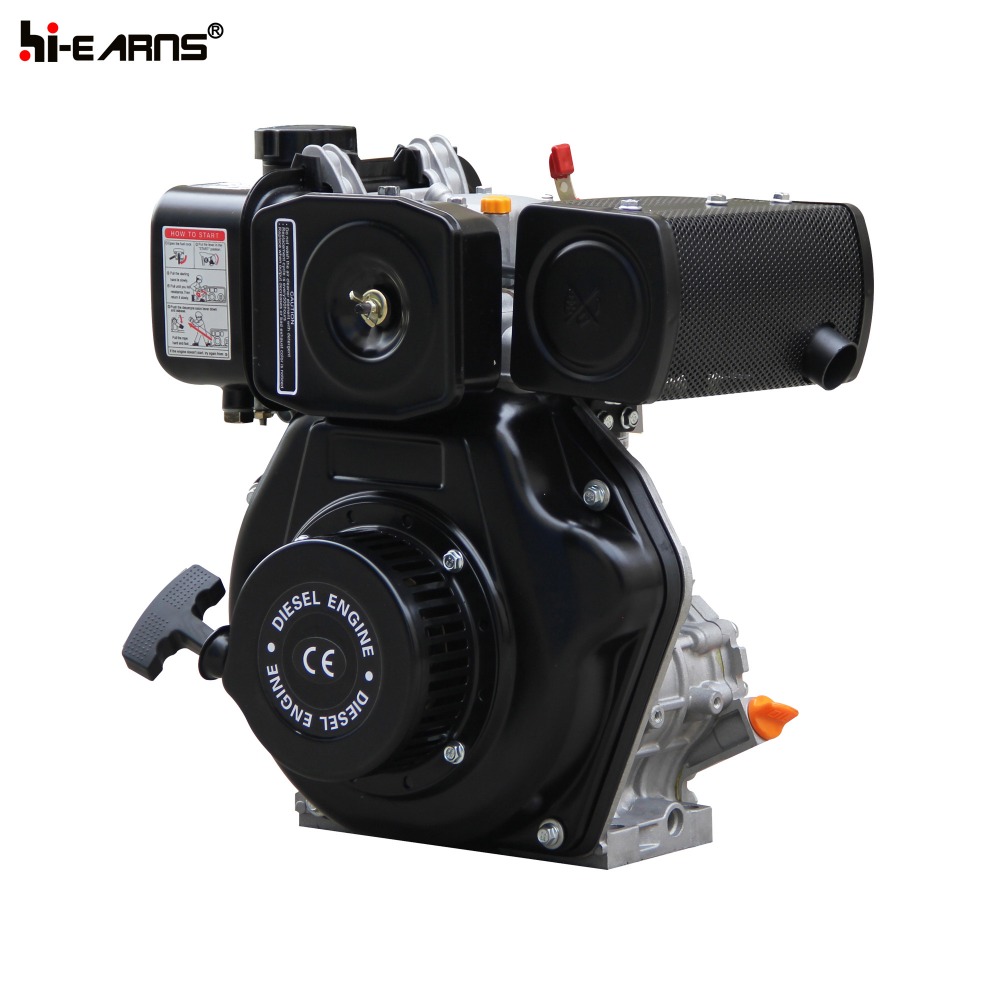

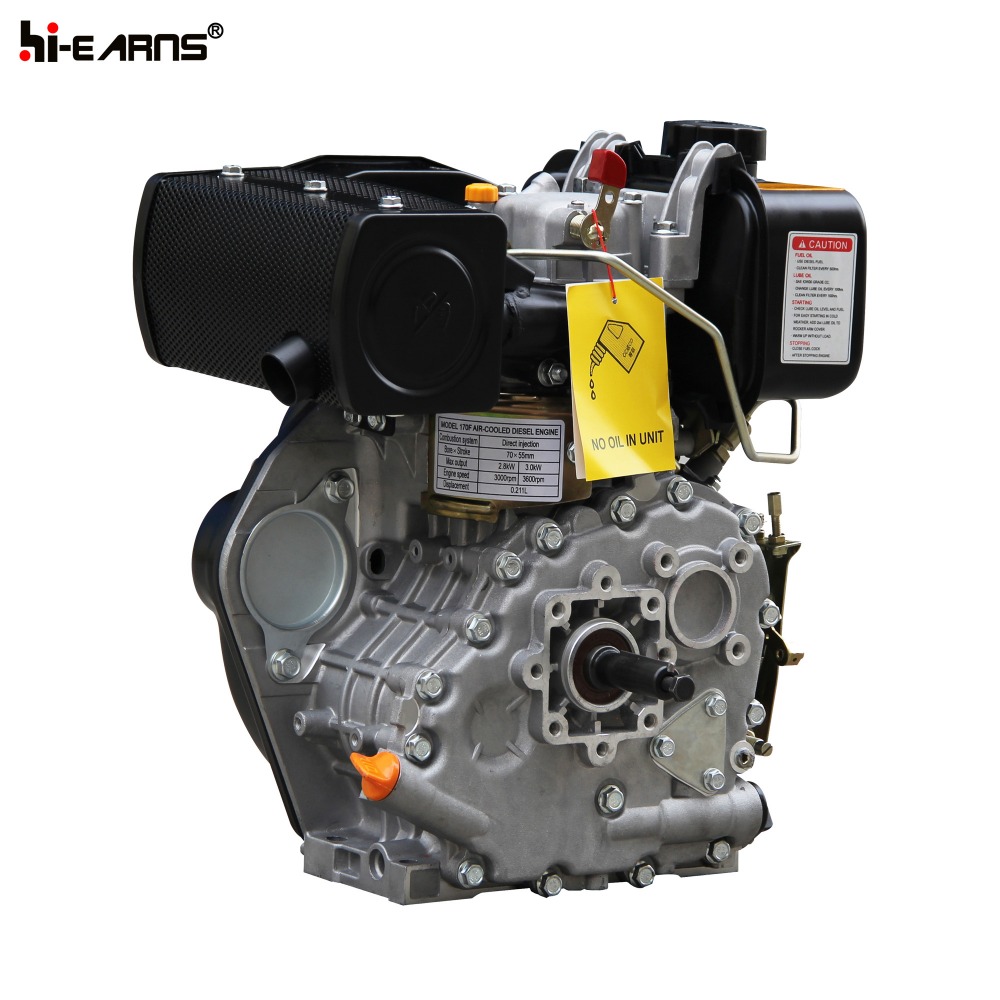

4hp small power tiller engine 170F
Click on the image to view the original image
Product： views：34hp small power tiller engine 170F
Branch： Hi-earns or OEM
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Recoil start
Place of Origin:
China
Brand Name:
Hi-earns or OEM
Dimension(L*W*H):
420x380x470 mm
Weight:
27 KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
Engine power:
4 HP
Engine model:
HR170F diesel engine
Start system:
Recoil or Electric start
Engine speed:
3000/3600 rpm
Displacement:
211
BORE*STROKE:
70x55
Supply Ability
Supply Ability:
300 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Video Description
Related Products



4hp small power tiller engine 170F



HR178F model: 4HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.e



ModelHR170F
Bore×stroke(mm)70×55
Displacement(cc)211
Engine speed(rpm)30003600
Max.output(kw)2.83.0
Continuous output(kw )      2.52.8
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L) 2.5
Rube oil capacity(L)0.75
Dimension(mm)420×380×470
Net weight(kg)27
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
