Home > Products > hot sale small 14hp diesel engine 192 with Spline shaft output type
hot sale small 14hp diesel engine 192 with Spline shaft output type
Click on the image to view the original image
Product： views：3hot sale small 14hp diesel engine 192 with Spline shaft output type
Branch： Hi-earns or OEM
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric start
Place of Origin:
China
Brand Name:
Hi-earns or OEM
Dimension(L*W*H):
520x490x570
Weight:
52 KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
Engine power:
14HP
start system:
Recoil or Electric start
Output type:
Keyway, spline, camshaft optional
Displacement:
498cc
BORE*STROKE:
92x75mm
Supply Ability
Supply Ability:
200 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Video Description



Related Products

hot sale small 14hp diesel engine 192 with Spline shaft output type

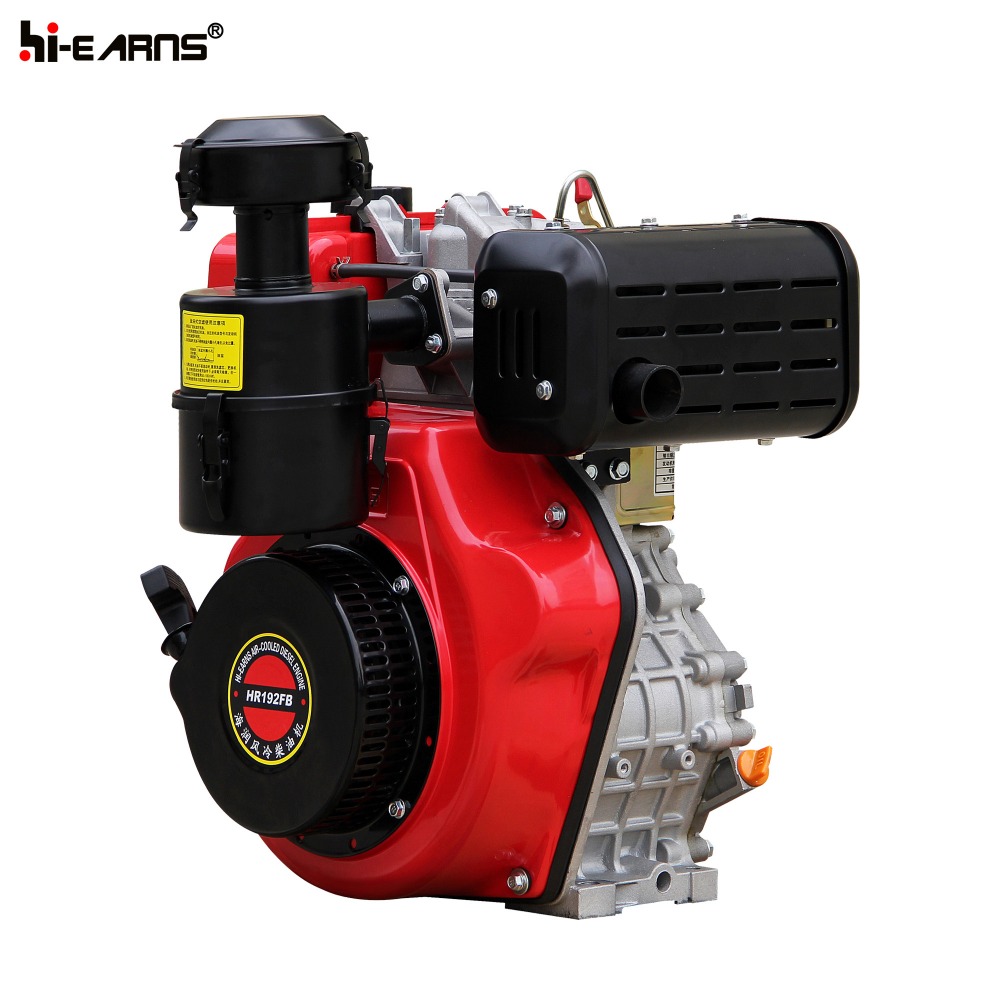

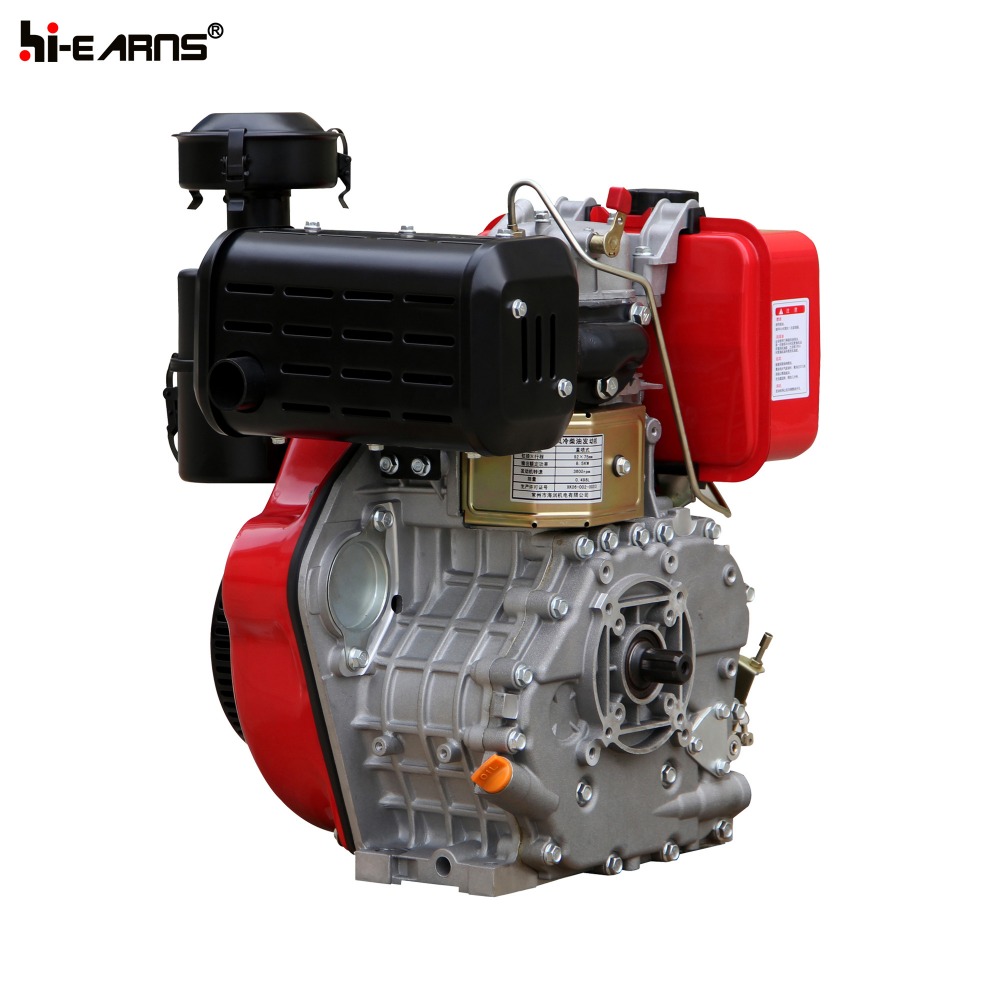

HR192FB model: 14HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.en



ModelHR192FB
Bore×stroke(mm)92×75
Displacement(cc)498
Engine speed(rpm)30003600
Max.output(kw)8.89.3
Continuous output(kw )      8.08.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)                         5.5
Rube oil capacity(L)1.65
Dimension(mm)510×490×570
Net weight(kg)47
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
