14hp power engine 192
Click on the image to view the original image
Product: views:314hp power engine 192
Branch: Hi-earns or OEM
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
Electric start
Place of Origin:
China
Brand Name:
Hi-earns or OEM
Dimension(L*W*H):
520x490x570
Weight:
52 KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
Engine power:
14HP
start system:
Recoil or Electric start
Output type:
Keyway, spline, camshaft optional
Displacement:
498cc
BORE*STROKE:
92x75mm
Supply Ability
Supply Ability:
200 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Video Description



Related Products

14hp power engine 192

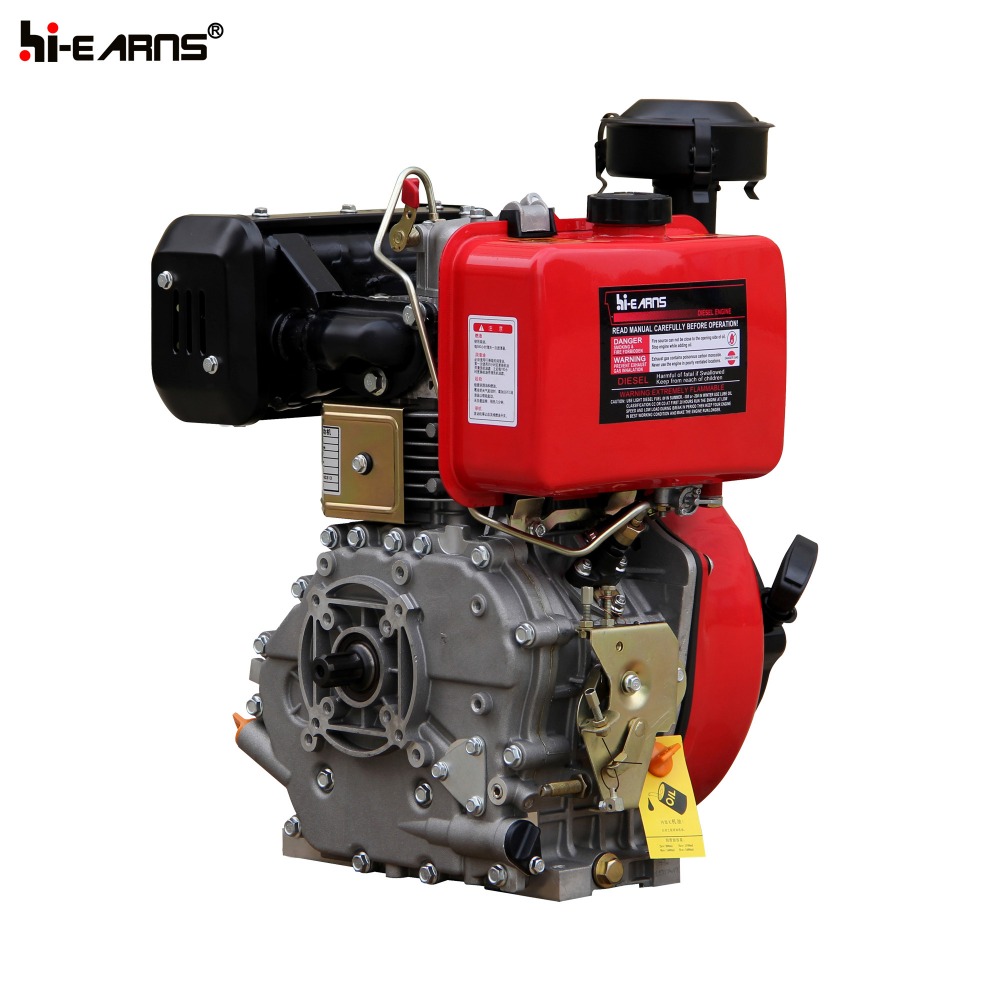

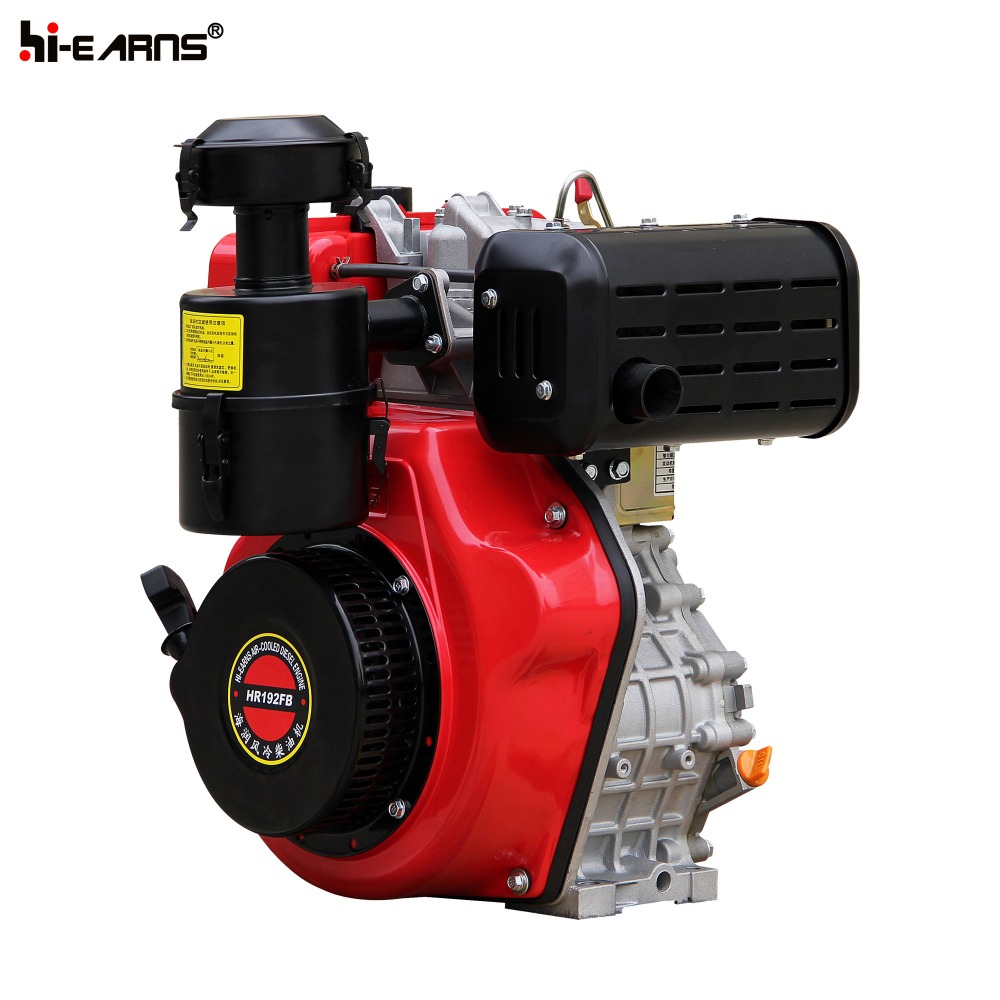

HR192FB model: 14HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.en



ModelHR192FB
Bore×stroke(mm)92×75
Displacement(cc)498
Engine speed(rpm)30003600
Max.output(kw)8.89.3
Continuous output(kw )      8.08.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)                         5.5
Rube oil capacity(L)1.65
Dimension(mm)510×490×570
Net weight(kg)47
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
