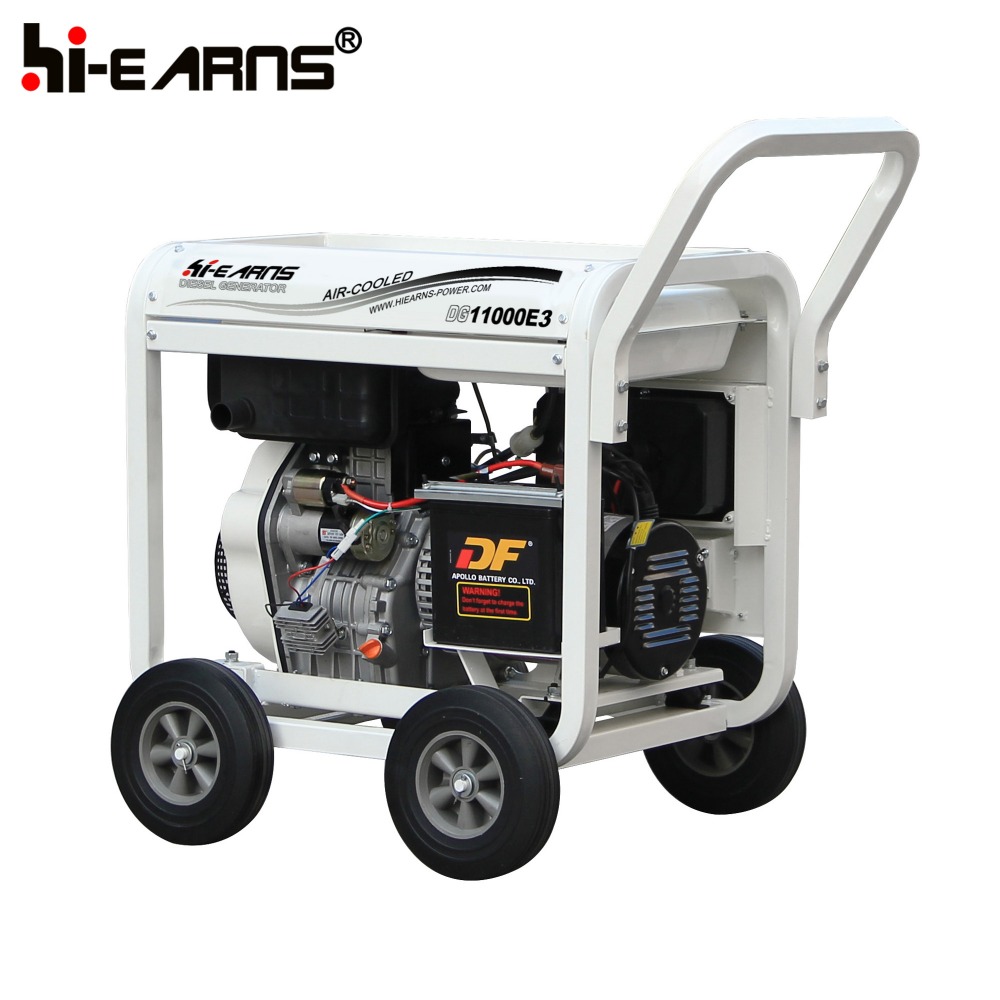

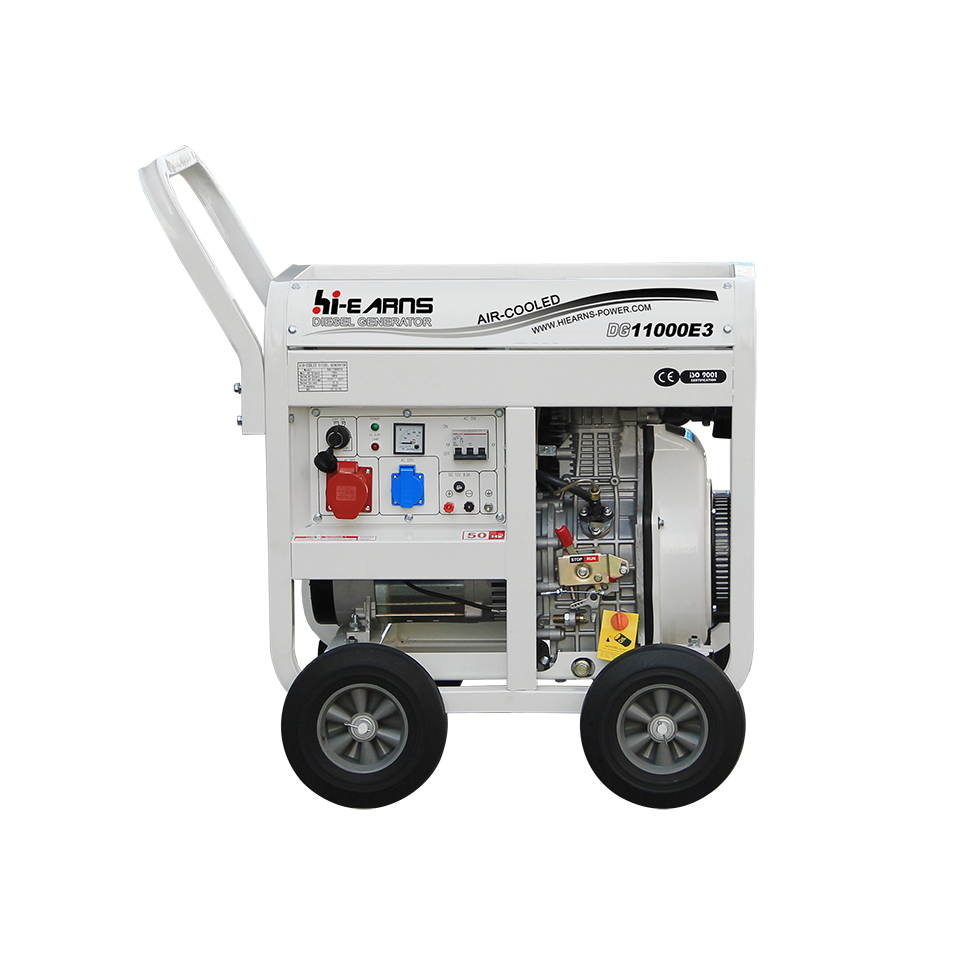

10KVA 8KW air cooled three phase portable diesel generator

Click on the image to view the original image

Product：	views：610KVA 8KW air cooled three phase portable diesel generator
Branch：	Hi-earns
Type：	open type and electric
Size：	76X530X68 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: DG11000E3

Rated Voltage:: 220/380, 230/400, 240/415V

Rated Current:: 12A

Speed:: 3000rpm

Frequency:: 50HZ

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Type:: open type and electric

Panel:: Voltmeter and AC switch

Wheel:: 10inch solid rubber wheel

Design:: New patent

Noise:: 80-85dB

Power factor:: 1

Phase:: Three

Engine type:: HR198FA

Price:: competitive price

Packaging & Delivery

Selling Units:: Single item

Single package size:: 76X530X68 cm

Single gross weight:: 145.0 kg

Package Type:: carton with plywood

Picture Example:

Lead Time:

Quantity(Piece)	1 - 20	21 - 50	>50
Est. Time(days)	15	20	To be negotiated

Related Products

DG11000E3 open type air cooled diesel generator

GENERATOR	Model	DG11000E3
	Frequency(HZ)	50	60
	Max. output(kw)	8.0	8.0
	Rated output(kw)	7.5	7.5
	Rated. AC voltage(v)	120/240, 220/380, 230/400, 240/415
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Three phase
	Alternator type	self-excited, 2-pole, three phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	80~85
	Fuel tank capacity(L)	12.5
	Continues work(hr)	5	5
ENGINE	Model	HR198FA
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	98× 84
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	no
DIMENSIONS	Dimension(L× W× H)(mm)	760× 530× 680
	Net weight(kg)	145
	20FT	93

Product Description

Field of Application

♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping

Care & Maintenance

About Us

Exhibition

♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.

♦ ISO, CE Certificates. We have been making good progress.
