Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG12000SE
- Rated Voltage:
- 110, 220, 230, 240V
- Rated Current:
- 41A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Green/White/black/Red/Blue
- Fuel tank capacity:
- 30L
- Phase:
- single phase
- Type:
- Silent and electric
- Certificate:
- CE/ISO9001
- Warranty:
- One Year
- Alternator:
- KETE
- Fuel pump:
- High quality
- Fuel nozzle:
- High quality
- Engine model:
- HR2V86F
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.Carton with plywood plate
2.One 20ft can load 26pcs, one 40ft can load 56pcs
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 15 25 To be negotiated
Related Products
Product Description
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

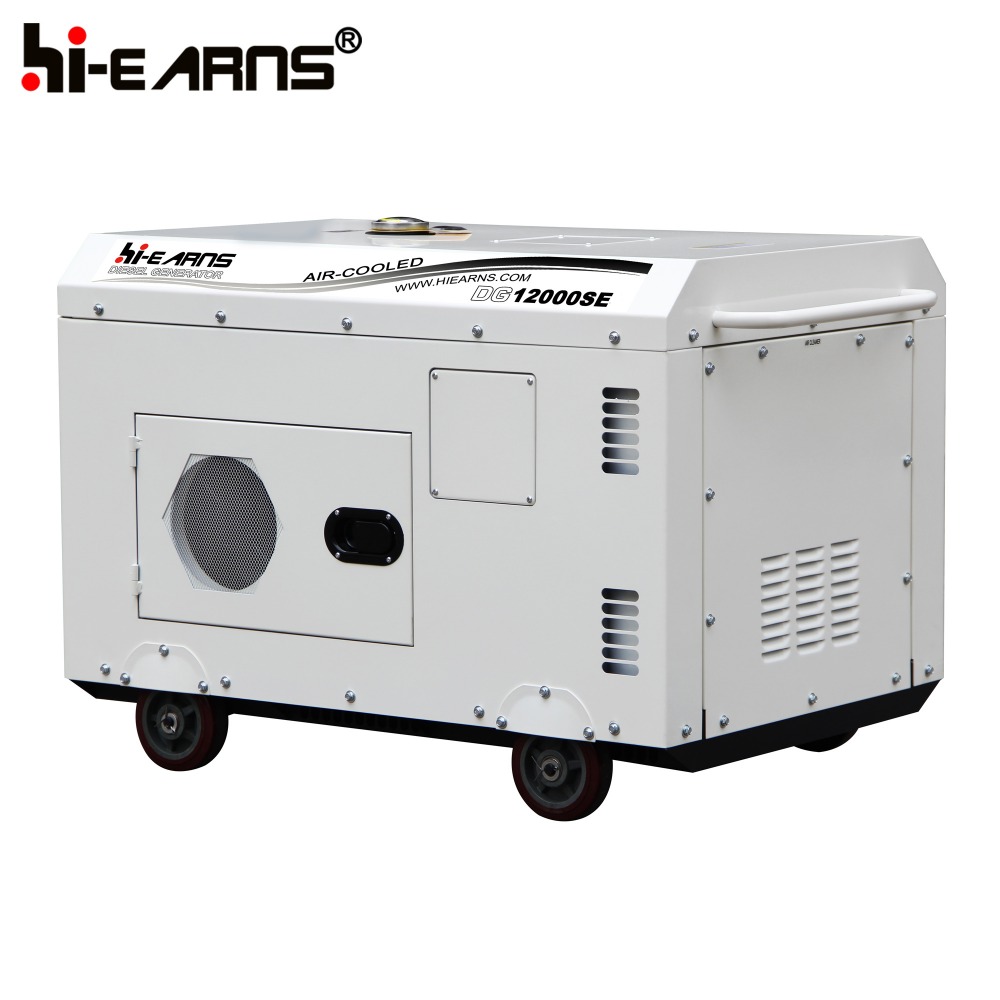

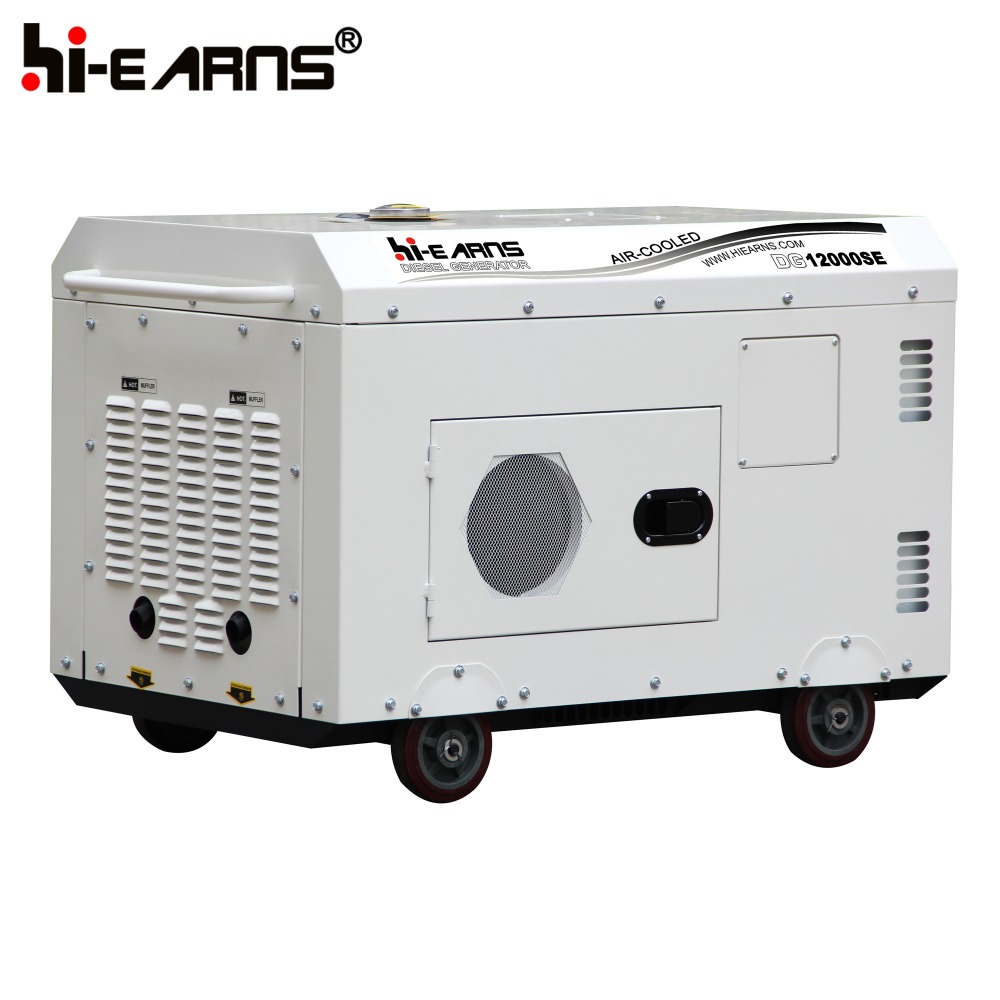

10KW electric silent air-cooled diesel generator
| GENERATOR | Model | DG12000SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 9.0 | 9.5 | |
| Rated output(kw) | 8.5 | 9.0 | |
| Rated. AC voltage(v) | 120, 220, 230, 120/240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 14 | 12 | |
| ENGINE | Model | HR2V86F | |
| Engine type | Two-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 2.5 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1200×725×805 | |
| Net weight(kg) | 220 | ||
| 20FT | 26 | ||
