Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG11000SE
- Rated Voltage:
- 220V
- Rated Current:
- 34.09A
- Speed:
- 3000RPM
- Frequency:
- 50Hz
- panel:
- normal or digital, depend on you
- hour meter, three phase, wheels:
- optional, depend on you
- rated output:
- 7.5KW 10kv generator
- max. output:
- 8KW 10kv generator
- portable type:
- with four wheels, portable
- automatic machine:
- with automatic transfer switch
- Warranty:
- One Year
- Certificate:
- CE, ISO
- Type:
- super silent unique diesel 10kv generator
- Alternator:
- 100% Copper
- Supply Ability:
- 65 Piece/Pieces per Day
- Packaging Details
- carton with plywood pallet
- Port
- SHANGHAI or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 >100 Est. Time(days) 12 20 To be negotiated

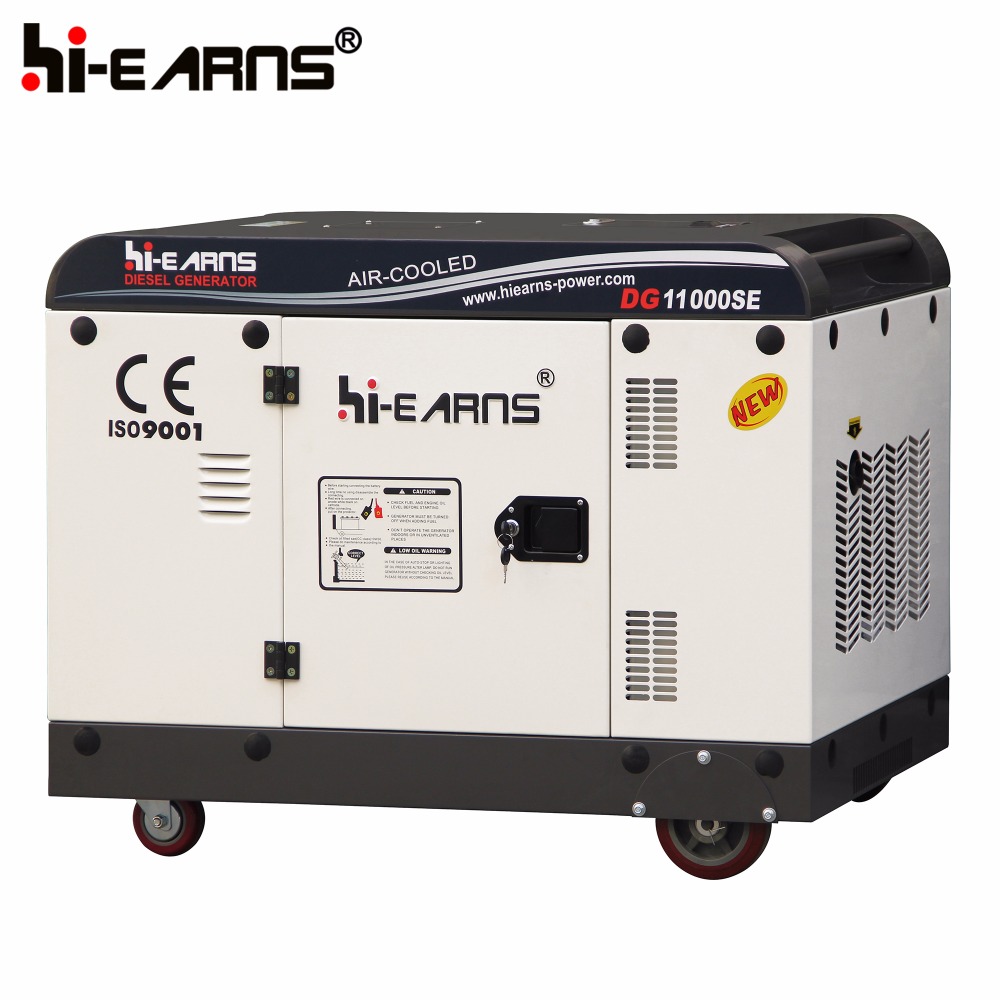

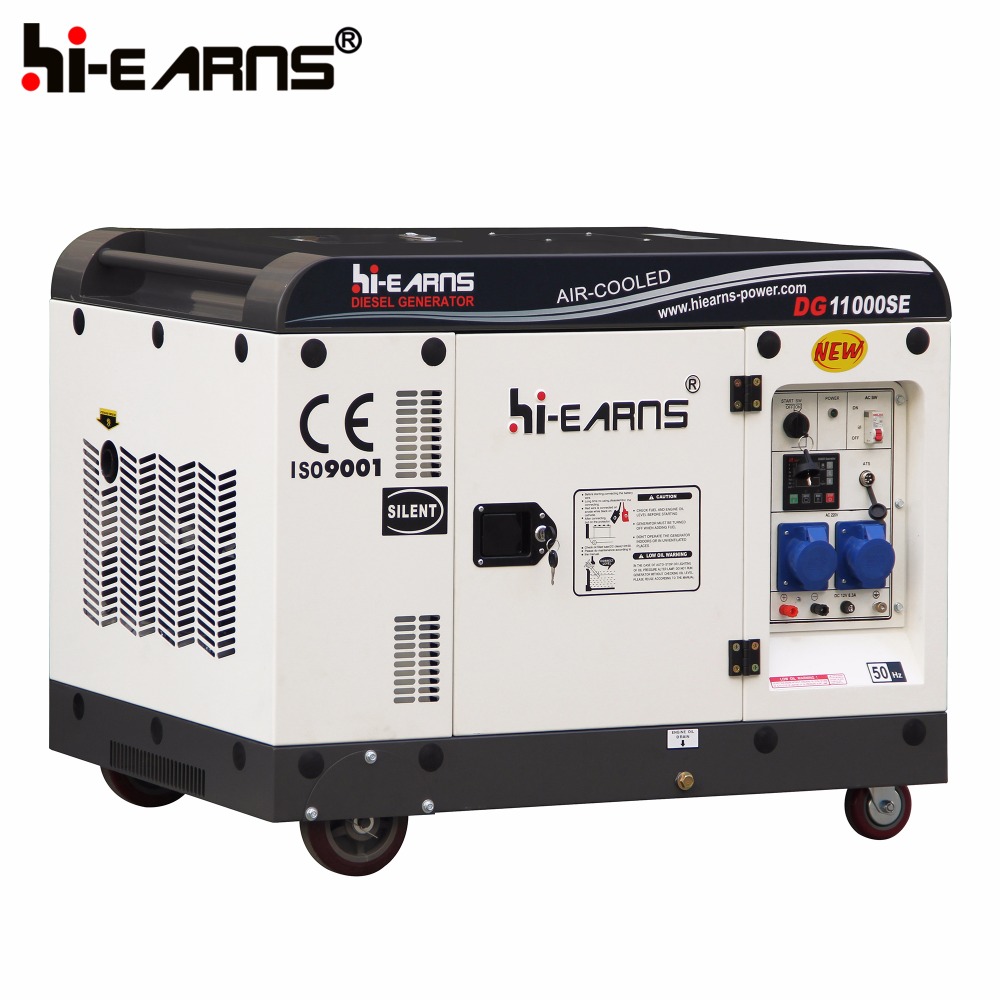

super silent unique diesel 10kv generator
♦ Use good brand spare parts, 8kva generator
♦ Portable generator diesel type, with four wheels, easy to move, 100% copper
♦ We are factory, have low price spare parts and timely technical support.
GENERATOR | Model | DG11000SE |
Frequency (HZ) | 50 | |
Max. output (KW) | 8 | |
Rated output (KW) | 7.5 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | |
Power factor (cosΦ) | cosΦ=1 | |
DC output (V) | 12V/8.3A | |
Phase | Single phase | |
Alternator type | self-excited, 2-pole, single phase alternator | |
Starting system | Electric | |
Operating noise level (at 7m) | 70~72 | |
Fuel tank capacity (L) | 30 | |
Continues work (H) | 12 | |
ENGINE | Model | HR198FA |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
Bore×stroke (mm) | 98×84 | |
Fuel | 0# or -10# light diesel fuel | |
Lubrication oil volume (L) | 1.65 | |
Combustion system | Direct lnjection | |
STANDARD FEATURES | Voltmeter | yes |
AC Output Socket | 2 | |
AC circuit breaker | yes | |
Oil warning light | yes | |
Oil alert | yes | |
OPTIONAL FEATURES | DC circuit breaker | optional |
Calculagraph | optional | |
Big Wheel | optional | |
Three phase voltage | optional | |
Current meter | optional | |
ATS | optional | |
Remote control | optional | |
Welding | optional | |
DIMENSIONS | Dimension (L×W×H) (mm) | 1110×760×860 |
Net weight (kg) | 210 | |
20FT/40HQ | 22 / 46 |
