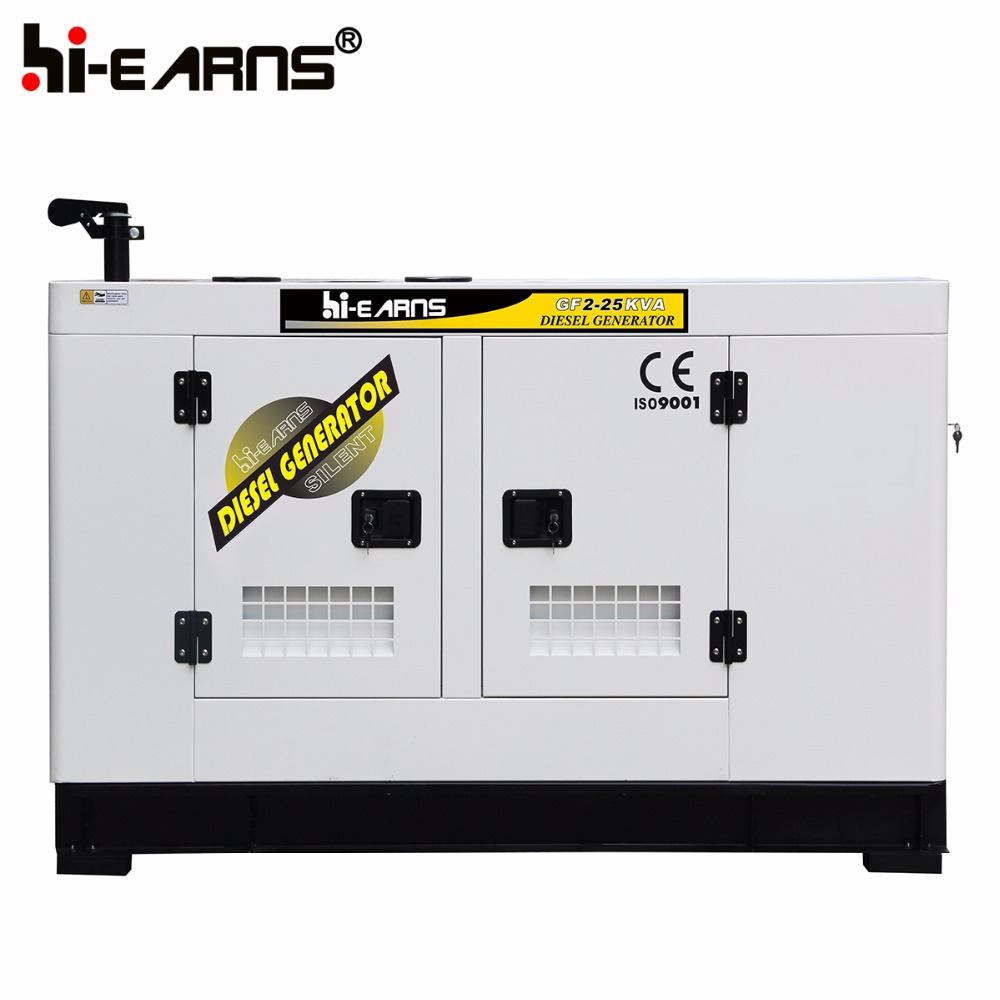

water cooled diesel generator 25 kva generator GF2-25
| Standby Power | 21 KW / 26KVA |
| Prime Power | 20KW / 25KVA |
| Model | QC498D |
| Cylinder Number | 4 |
| Bore×Stroke(mm) | 98×105 |
| Displacement(L) | 3.168 |
| Rated RPM(r/min) | 1500 |
| Rated Speed Regulation % | ≤5 |
| Rated Fuel Consumption(g/kW·h) | ≤245 |
| Cylinder Head Type | Dry type |
| Diesel Generator Type | Direct line,Water-cooled,Four stroke |
| Intake Type | Natually-Aspirated |
| Combustion Chamber Type | Direct Injection |
| Lubricating System | Pressure,Split,Complex |
| Flywheel Cover Specification | SAE4# |
| Flywheel Specification | SAE7.5″ |
| Exhaust Fan Diameter(mm) | φ410 |
| Flywheel Teeth Number | 109 |
| Add Oil Capacity | 5L |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | S |
| Rated Current (A) | 40 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Open Type"s Dimension Length × Width × Height (mm) | 1850×840×1110 |
| Silent Type"s Dimension Length × Width × Height (mm) | 1850×850×1110 |
| Open Type"s Net Weight(Kg) | 692 |
| Silent Type"s Net Weight(Kg) | 752 |
| Open Type"s 20FT Loading Quantity | 12PCS |
| Silent Type"s 20FT Loading Quantity | 6PCS |
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
8.Our logo or OEM
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
1.We actively attend every internal and international fair to show our products.
2.Our business line covers all over the world, we are looking forward to cooperate with
you.
3.Any time you need us, we are here!
CHERRY
E-mail: server001@ hiearns.com
Mobile/Whatsapp: 0086-18136591237 / 0086-15961435478
Wechat: Hiearns001 / chongaiing
Website: www.hiearns-power.com
Add: Lijia town, Wujni, Changzhou, Jiangsu province, China.
