Click on the image to view the original image
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SE-N
- Rated Voltage:
- 220,230,240,120/240,220/380,, 120,220,230,240,120/240,220/380,230/400,240/415V
- Rated Current:
- 20.5A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ/60HZ, 50HZ/60HZ
- Type:
- flywheel generator
- max.output:
- 4.6kw/5kw
- rated output:
- 4.2kw/4.6kw
- phase:
- single phase or three phase
- alternator type:
- self-excited
- starting system:
- electric
- engine model:
- HR186FA
- bore* stroke:
- 86*72
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 82X56X78 cm
- Single gross weight:
- 174.0 kg
- Package Type:
- cartonplywood pallet
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 51 - 100 >100 Est. Time(days) 14 20 30 To be negotiated

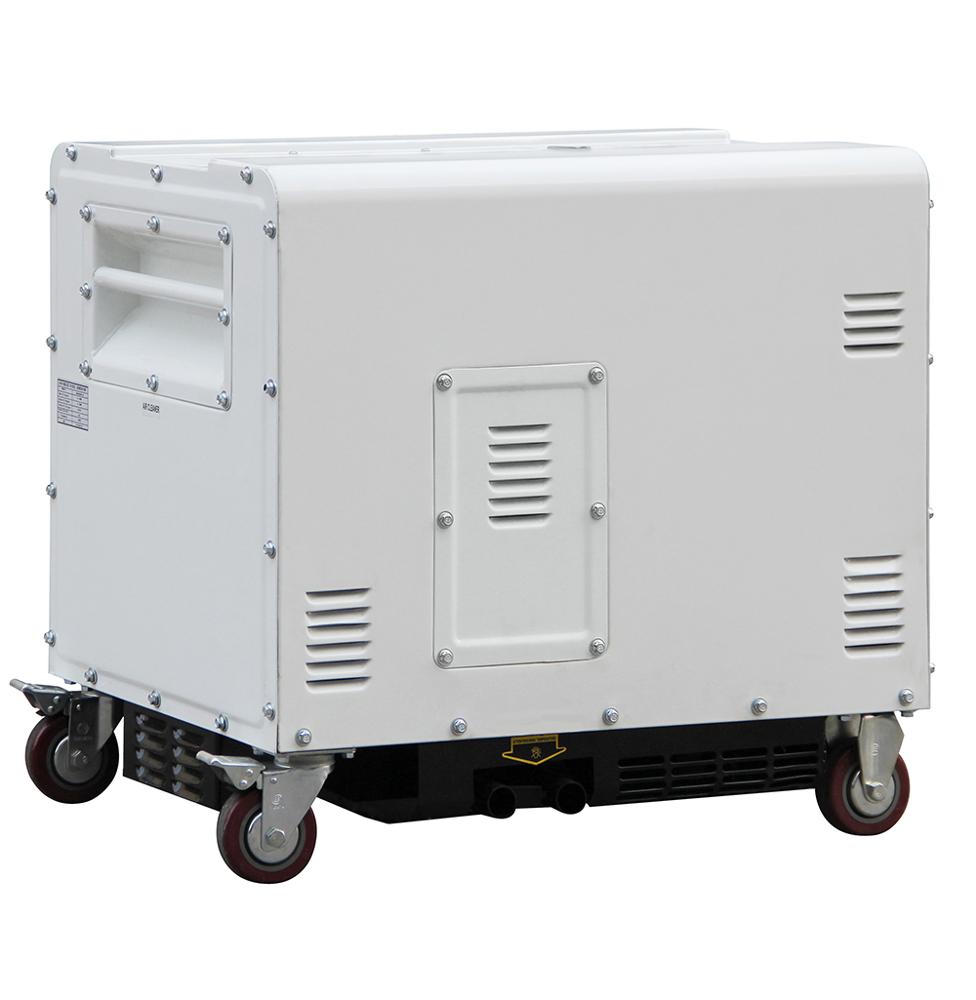

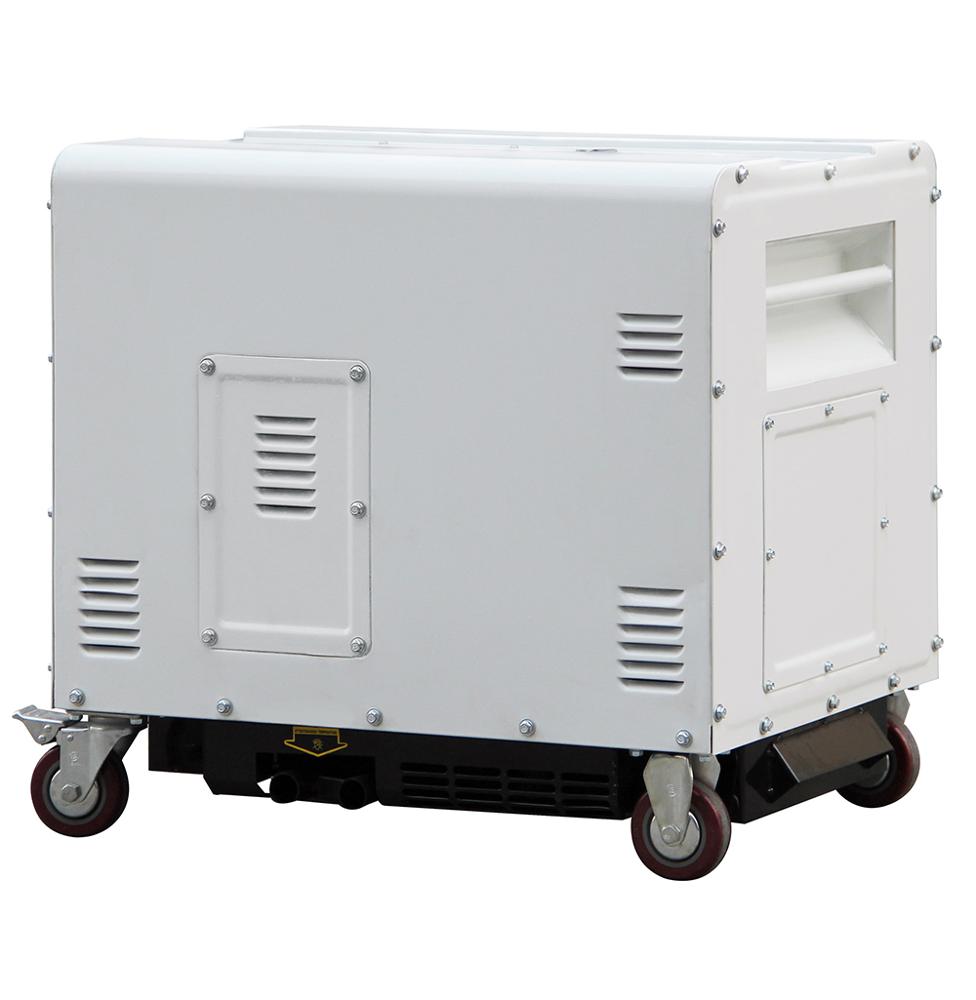

5KVA silent flywheel diesel generator price DG6500SE-N
| GENERATOR | Model | DG6500SE-N | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 4.6 | 5 | |
| Rated output(kw) | 4.2 | 4.6 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 65~68 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 8.5 | 7.7 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 800×550×700 | |
| Net weight(kg) | 163 | ||
| 20FT | 80 | ||
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE,ISO..., etc.
6.Our logo or OEM
