Home > Products > 6KW new model top open silent canopy diesel generator

6KW new model top open silent canopy diesel generator

Click on the image to view the original image

Product：	views：26KW new model top open silent canopy diesel generator
Branch：	Hi-earns/OEM
Size：	95X56X71 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns/OEM

Model Number:: DG8500SE3

Rated Power:: 6KW

Output Type:: AC Three Phase

Rated Voltage:: 380/220V

Rated Current:: 8.7A

Speed:: 3000rmp/3600rmp

Frequency:: 50hz/60hz

generator:: 6KW silent diesel generator

panel:: common panel

color:: optional

Start type:: Electric satrt with 30AH battery

Alternator model:: 204x130mm copper wire alternator

Engine model:: HR192FB

Engine power:: 14HP

Packaging & Delivery

Selling Units:: Single item

Single package size:: 95X56X71 cm

Single gross weight:: 165.0 kg

Package Type:: Carton packing with plywood pallet

Picture Example:

Lead Time:

Quantity(Piece)	1 - 5	6 - 20	>20
Est. Time(days)	15	25	To be negotiated

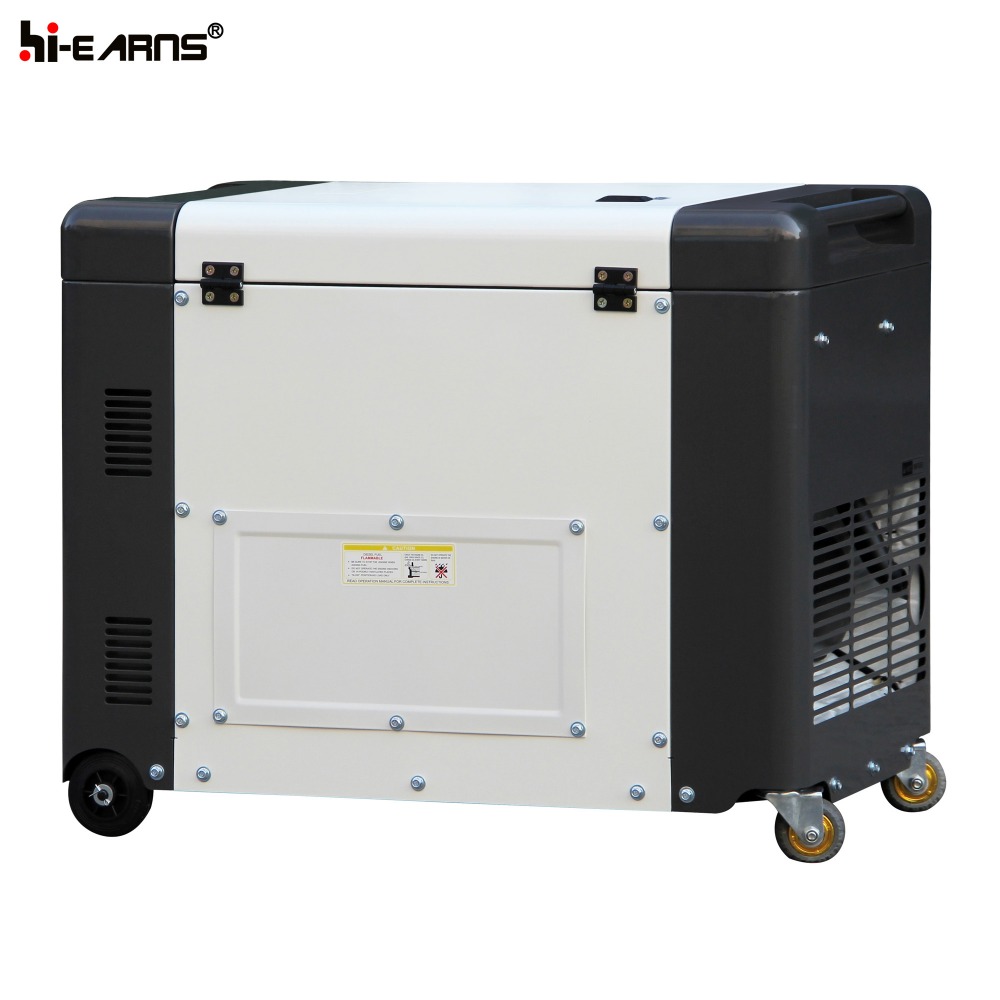

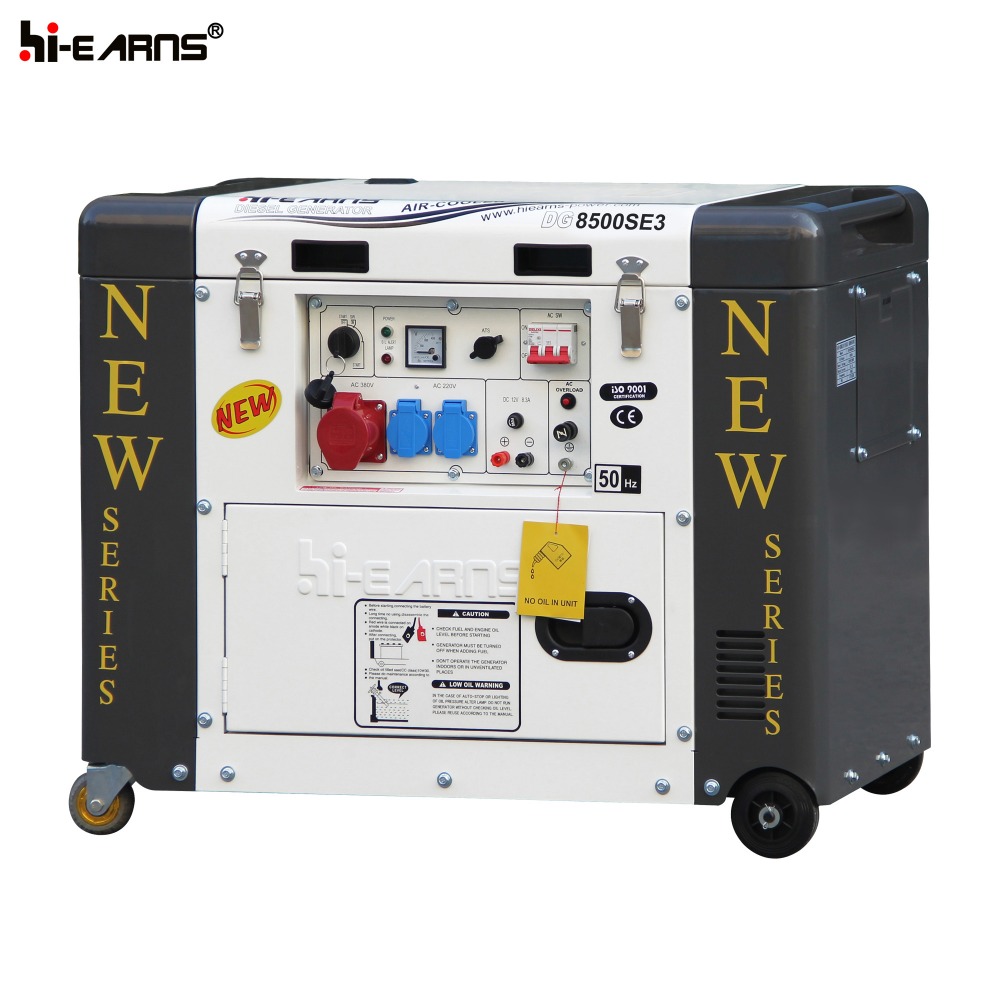

6KW new model top open silent canopy diesel generator

♦DG8500SE model: With 14 HP HR192FB air cooled diesel engine and 100% copper wire 204x130mm KETE alternator ensure a 6KVA rated output, and 6.5KVA max. output!

♦Equal Power model with 6KW output for 380V three phase;

♦Electric start with 30AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use!

♦Also have open frame model DG8000E, the noise maybe little bigger, and the price can have a discount!

♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.

GENERATOR	Model	DG8500SE
	Frequency(HZ)	50	60
	Max. output(kw)	6.5	7
	Rated output(kw)	6	6.5
	Rated. AC voltage(v)	120, 220, 230, 240
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Single phase
	Alternator type	self-excited, 2-pole, single phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	68~72
	Fuel tank capacity(L)	16
	Continues work(hr)	8.5	7.8
ENGINE	Model	HR192FB
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	92× 75
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	optional
DIMENSIONS	Dimension(L× W× H)(mm)	950× 560× 710
	Net weight(kg)	155
	20FT	72

IQC

♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.

Automatic workshop

♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;

♦ Flow card ro record each details carefully;

Packaging & Shipping

♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
