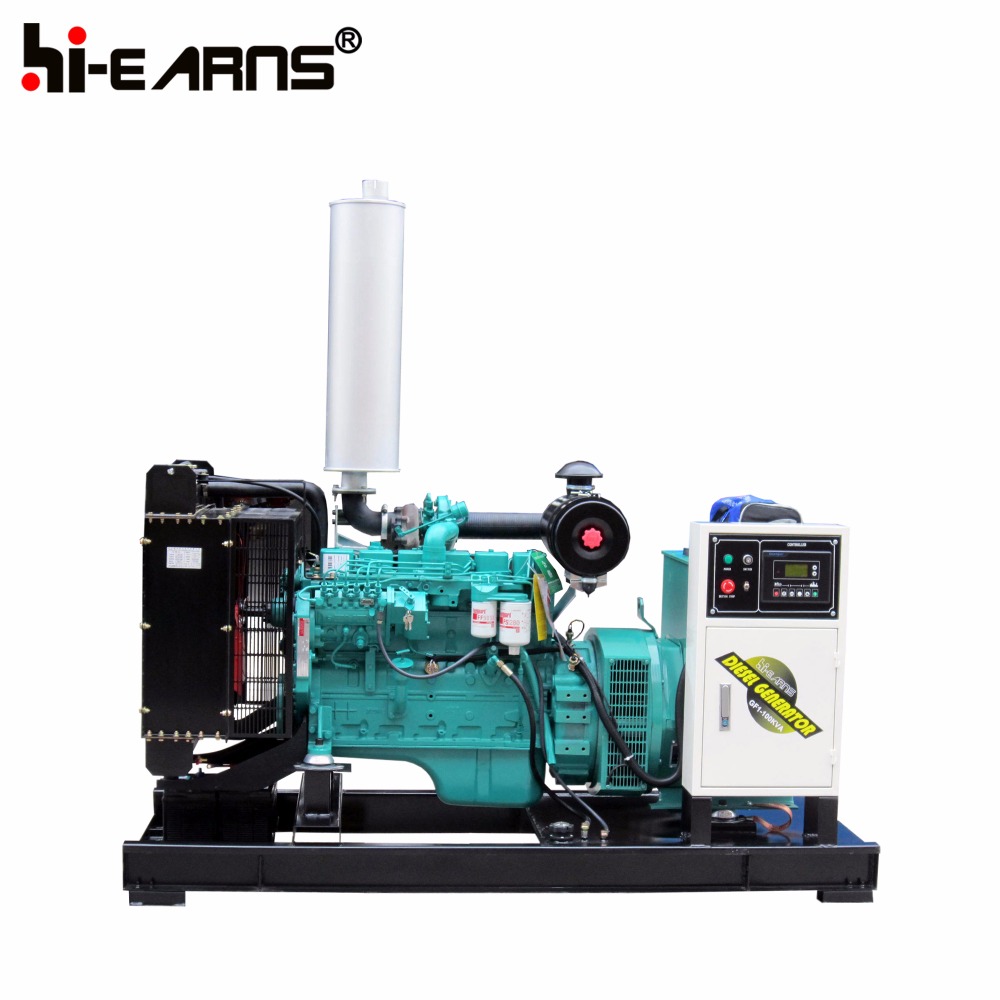

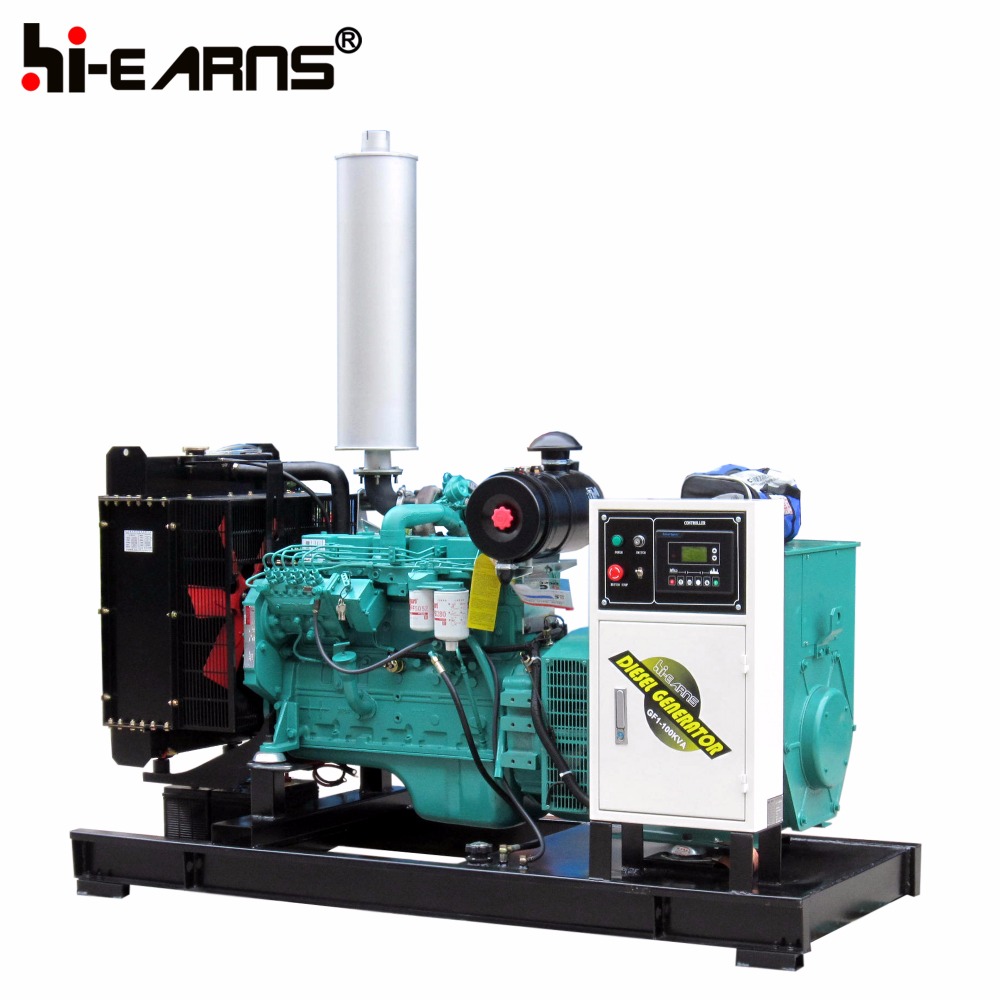

Water-cooled diesel generator(GF2-150KVA)
| Voltage | HZ | Phase | P.F(COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 217 | 132/165 | 120/150 |
| 415/240 | 50 | 3 | 0.8 | 230 | 132/165 | 120/150 |
| 400/230 | 50 | 3 | 0.8 | 238 | 132/165 | 120/150 |
| 380/220 | 50 | 3 | 0.8 | 250 | 132/165 | 120/150 |
| ENGINE DATA | ||||||
| Manufacturer/Model: | DCEC Cummins 6CTA8.3-G2,4-cycle | |||||
| Air Intake System: | Turbo,Water/Air Cooling | |||||
| Fuel System: | PB type fuel pump | |||||
| Cylinder Arrangement: | 6 in line | |||||
| Fuel Consumption (≤g/kw.h): | 215 | |||||
| Bore and Stroke: | 114×135(mm) | |||||
| Compression Ratio: | 17.0:1 | |||||
| Rated RPM: | 1500rpm | |||||
| Max.Standby Power at Rated RPM: | 180KW / 244HP | |||||
| Governor Type: | Electronic | |||||
| Alternator Data | ||||||
| Manufacturer: | Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol | |||||
| Number of Phase: | 3 | |||||
| Connecting Type: | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Number of Bearing: | 1 | |||||
| Power Factor: | 0.8 | |||||
| Protection Grade: | IP23 | |||||
| Altitude: | ≤1000m | |||||
| Exciter Type: | Brushless,self-exciting | |||||
| Insulation Class,Temperature Rise: | H/H | |||||
| Telephone Influence Factor(TIF): | <50 | |||||
| THF: | <2% | |||||
| Voltage Regulation,Steady State: | ≤±1% | |||||
| Alternator Capacity: | 150KVA | |||||
| Alternator Efficiencies: | 92.20% | |||||
| Air Cooling Flow: | 0.37m3/s | |||||
| Open Type | Soundproof Type | |||||
| Overall Size:2300(mm)×850(mm)×1550(mm) | Overall Size:2950(mm)×1120(mm)×1620(mm) | |||||
| Weight:1500kg | Weight:1900kg | |||||
