- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG8500SE standby generator
- Rated Voltage:
- 220V
- Rated Current:
- 27.27A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ
- Diesel generator:
- 6500W silent diesel equipower generator
- power output:
- 6/6.5KW
- alternator:
- 100% copper
- color:
- optional, depend on you
- Type:
- top open, easy maintenance
- Engine:
- 192FD
- Warranty:
- One Year
- Product Name:
- 6500W silent diesel equipower generator
- Certificate:
- CE/ISO9001
- Options:
- current meter, digital module, ATS, remote control
- Supply Ability:
- 120 Piece/Pieces per Day
- Packaging Details
- carton with plywood pallet
- Port
- SHANGHAI or CIF destination port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 >100 Est. Time(days) 12 20 To be negotiated

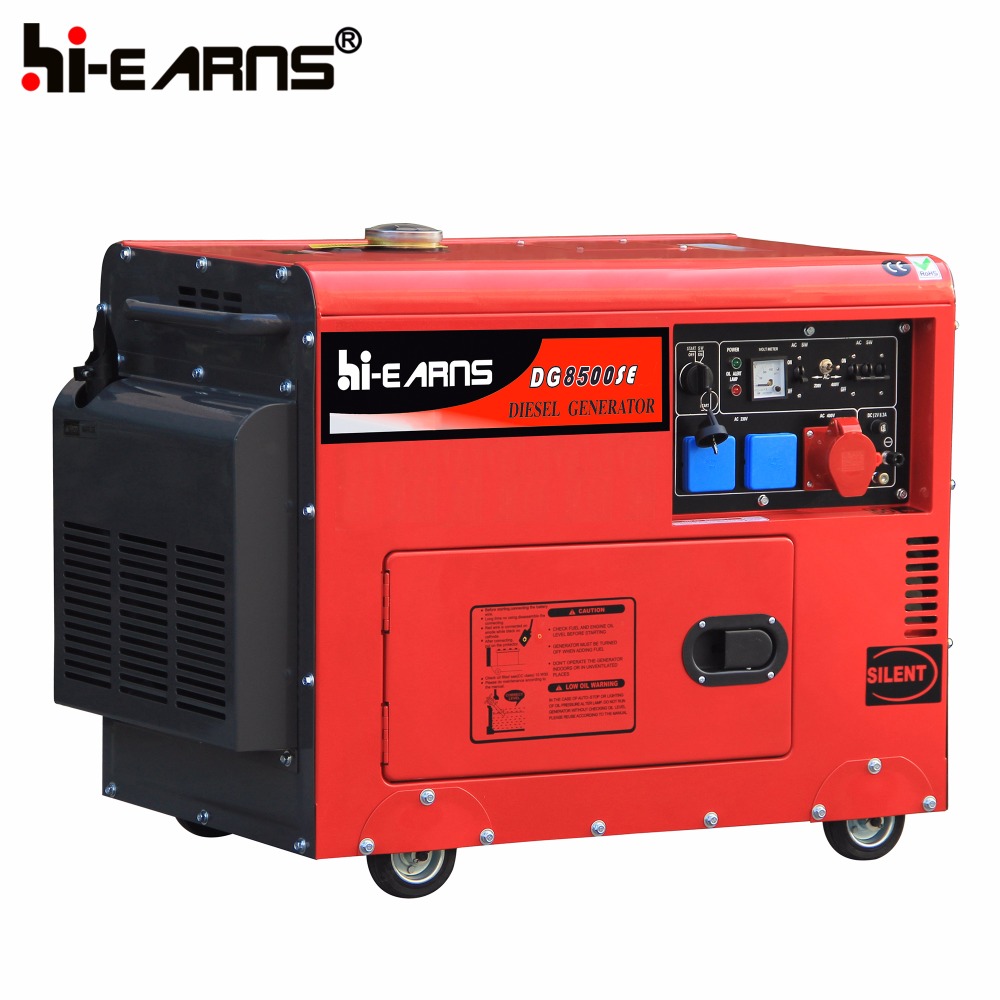

6500W silent diesel equipower generator
♦ Use good brand spare parts, unique design canopy
♦ Portable type, with four wheels, 100% copper alternator
♦ We are factory, have low price spare parts and timely technical support
GENERATOR | Model | DG8500SE | |
Frequency (HZ) | 50 | 60 | |
Max. Output (KW) | 6.5 | 7 | |
Rated output (KW) | 6 | 6.5 | |
Rated. AC voltage (V) | 120, 220, 230, 240 | ||
Power factor (cosΦ ) | cosΦ =1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase | ||
Alternator type | self-excited, 2-pole, single phase alternator | ||
Starting system | Electric | ||
Operating noise level (at 7m) | 70~72 | ||
Fuel tank capacity (L) | 16 | ||
Continues work (H) | 7.8 | 7.5 | |
ENGINE | Model | HR192FD | |
Engine type | Single- cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke (mm) | 92×75 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
DIMENSIONS | Dimension (L× W× H)(mm) | 950×560×780 | |
Net weight(kg) | 158 | ||
20FT/40HQ | 72 / 144 | ||
