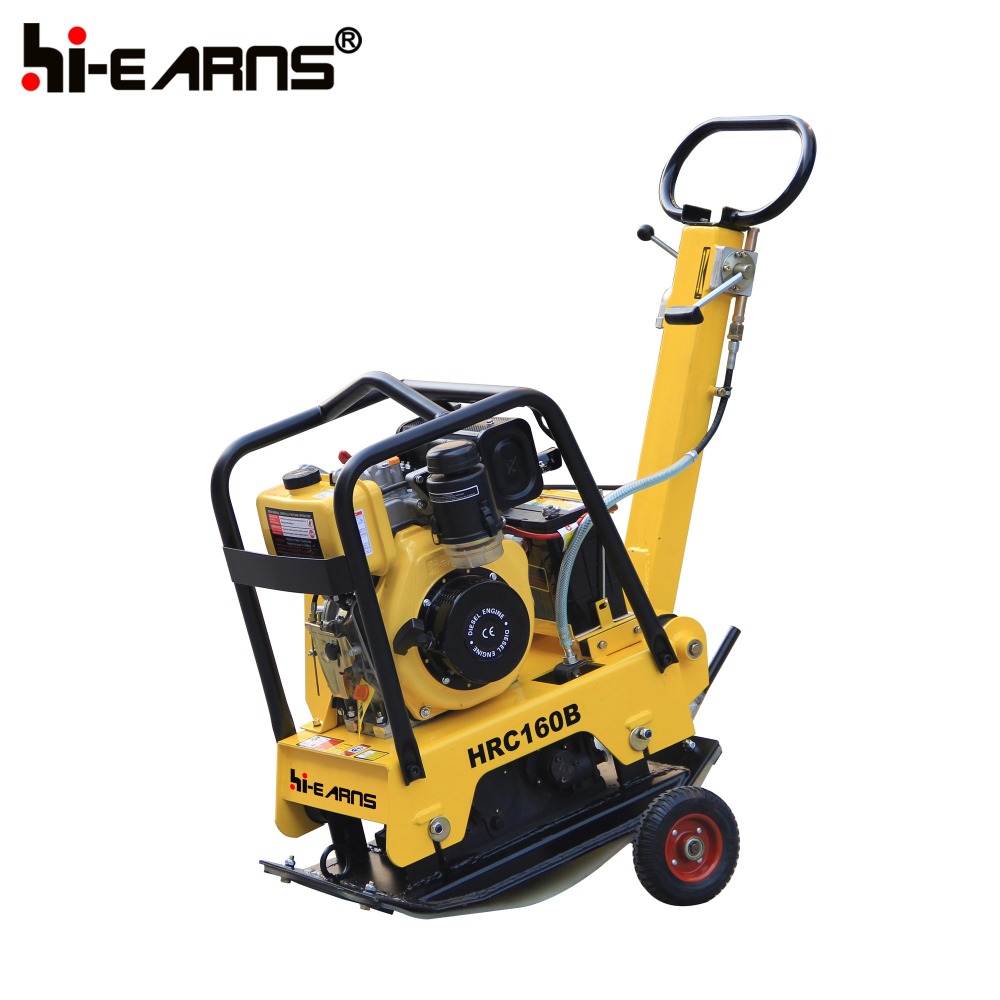

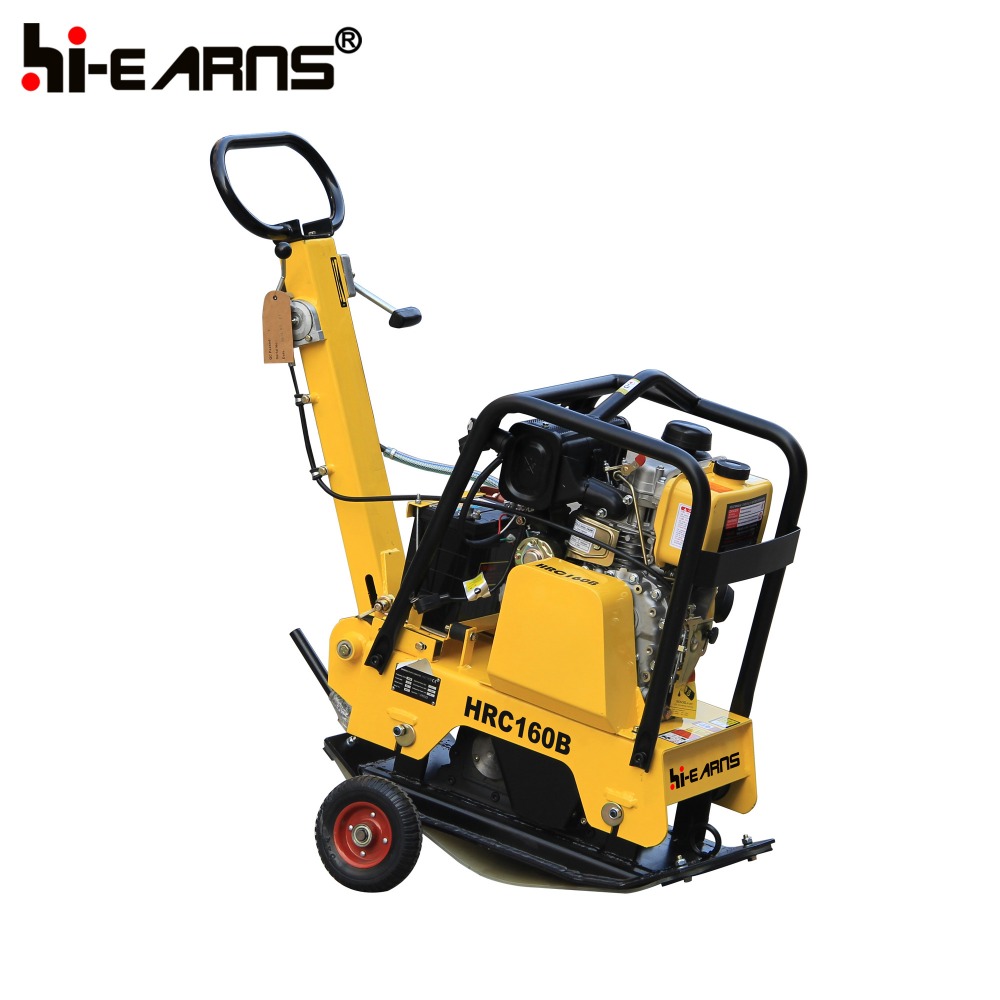

HRC160B air cooled diesel plate compactor
| Model | HRC160B |
| Engine Type | HR170F diesel engine |
| Power kw(hp) | 6 |
| Operation Mass (kg) | 170 |
| Frequency (vpm) | 4200 |
| Centrifugal Force (KN) | 30 |
| Compaction Depth (cm) | 50 |
| Travel Speed (cm/s) | 25 |
| Efficiency (m2/hr) | 700 |
| Plate Size (cm) | 100×50×110 |
| Dimenson (cm) | 79×58×110 |
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or plywood box packagine for products.
Warranty
Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.
Service
1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.
2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.
♦ Modern office building,we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.
♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
How to come to Hi-earns?
♦ Line 1:TAXI
Shanghai International Airport(Pudong)
Cost(USD):85
Time:2.5 hours
♦Line 2:High speed rail
Shanghai Hongqiao railway station---Changzhou railway station
Cost(USD):20
Time:1 hour
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
