Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DP40E
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- agricultural, irrigation
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- diesel water pump:
- water pump
- engine:
- 186FA, 10HP
- color:
- optional
- cont.head:
- 31m
- self-priming time:
- 180s/4m
- max.suction head:
- 8m
- engine speed:
- 3600rpm
- engine type:
- single-cylinder,vertical,4-stroke air-cooled
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Carton
- Port
- FOB SHANGHAI
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated

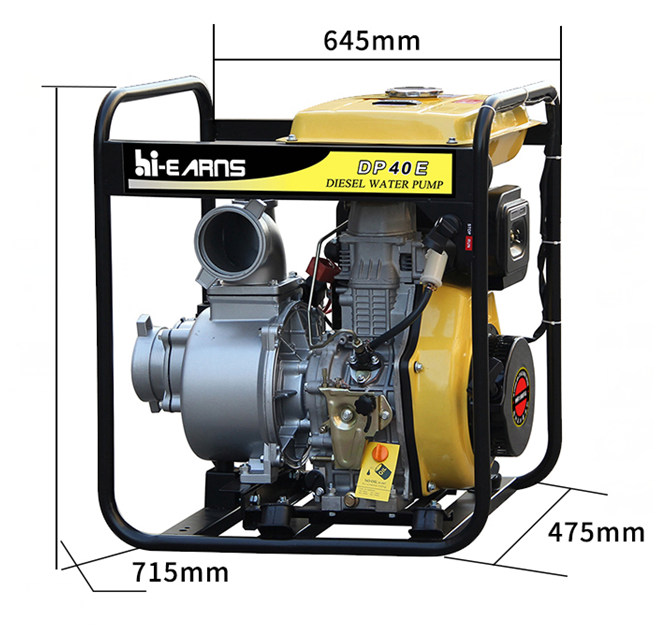

4 inch diesel electric water pump for irrigation DP40E
| WATER PUMP | Model | DP40E | |
| Suction,discharge port diameter[mm(in)] | 100(4") | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86*72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 655×485×620 | |
| Net weight(kg) | 88 | ||
| 20FT | 105 | ||
water pump
