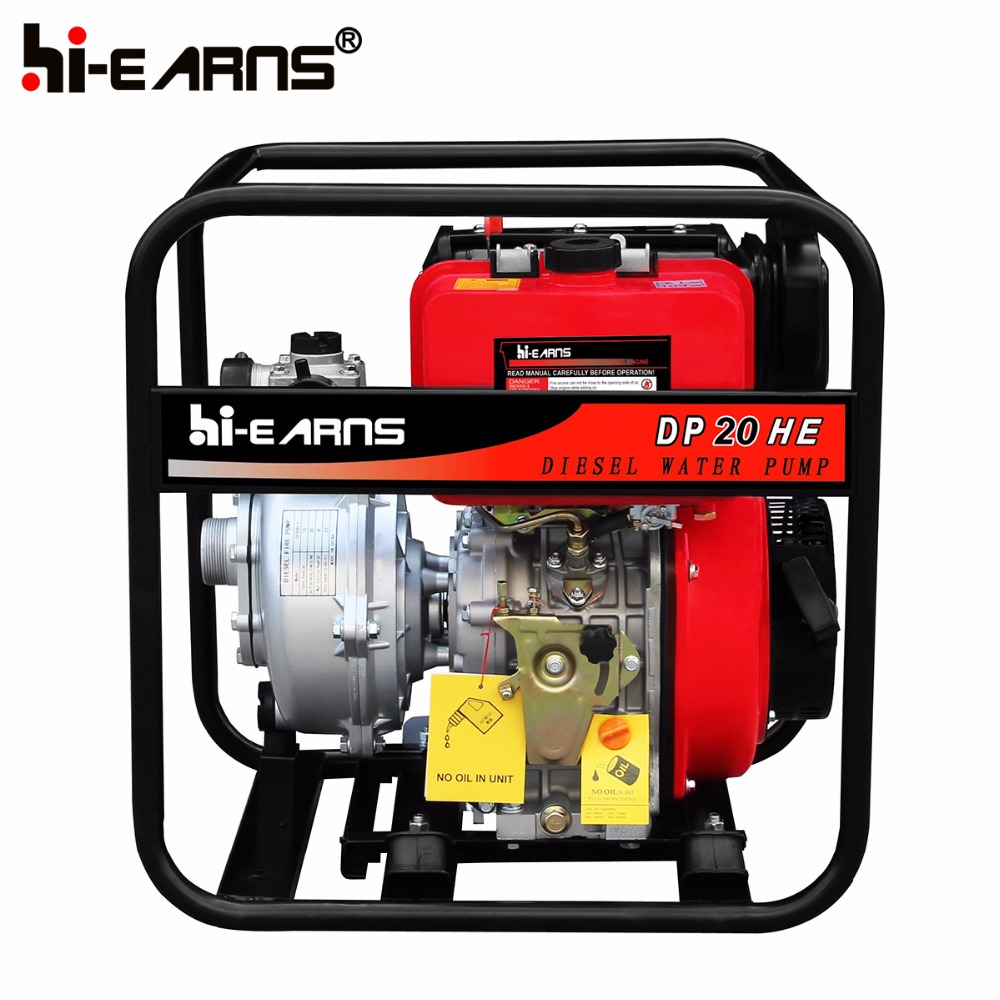

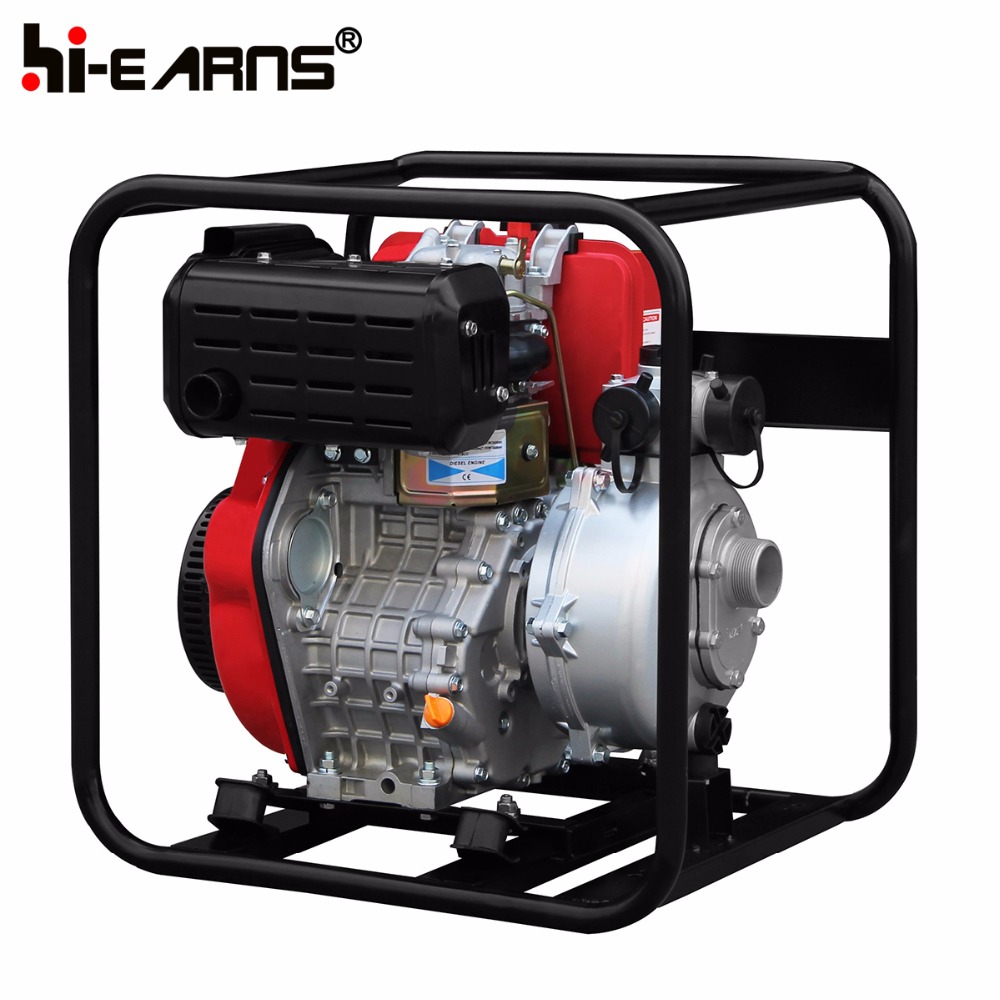

2 inch high pressure water pump 50m head DP20H
| WATER PUMP | Model | DP20H | |
| Suction,discharge port diameter[mm(in)] | 50(2") | ||
| Cont.head(m) | 50 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 23 | ||
| ENGINE | Engine model | HR186Fa | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 285 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86*72 | ||
Starting system | Recoil | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 595×475×585 | |
| Net weight(kg) | 57 | ||
| 20FT | 126 | ||
