Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SE
- Rated Voltage:
- 110,220,230,240V
- Rated Current:
- 21A
- Speed:
- 3000/3600RPM
- Frequency:
- 50HZ/60HZ
- Color:
- Green/White/black/Red/Blue
- Warranty:
- One Year
- Noise level:
- 68-72dB
- Certificate:
- CE/ISO9001
- Structure:
- Skylight/rings
- Type:
- Silent and electric
- Wheel:
- Solid rubber wheel /universal whee1
- Panel:
- Common/digital/ATS
- Design:
- New
- Engine type:
- HR186FA
Supply Ability
- Supply Ability:
- 200 Set/Sets per Day
Packaging & Delivery
- Packaging Details
- 1.Carton with plywood plate
2.One 20ft can load 72pcs, one 40ft can load 144pcs
- Port
- Shanghia
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products
Product Description
1.silent, electric, with 30AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

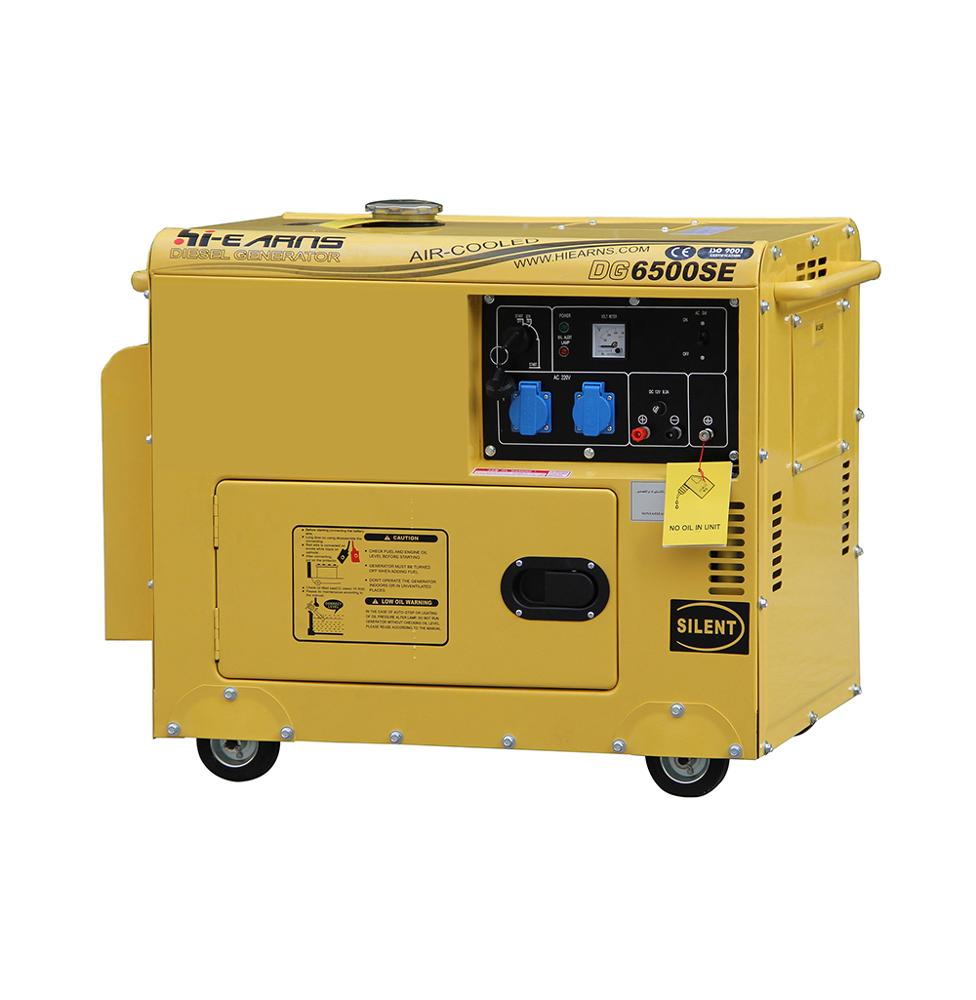

5KW electric silent air-cooled diesel generator
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5.0 | |
| Rated. AC voltage(v) | 120, 220, 230, 120/240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 925×525×680 | |
| Net weight(kg) | 155 | ||
| 20FT | 72 | ||
