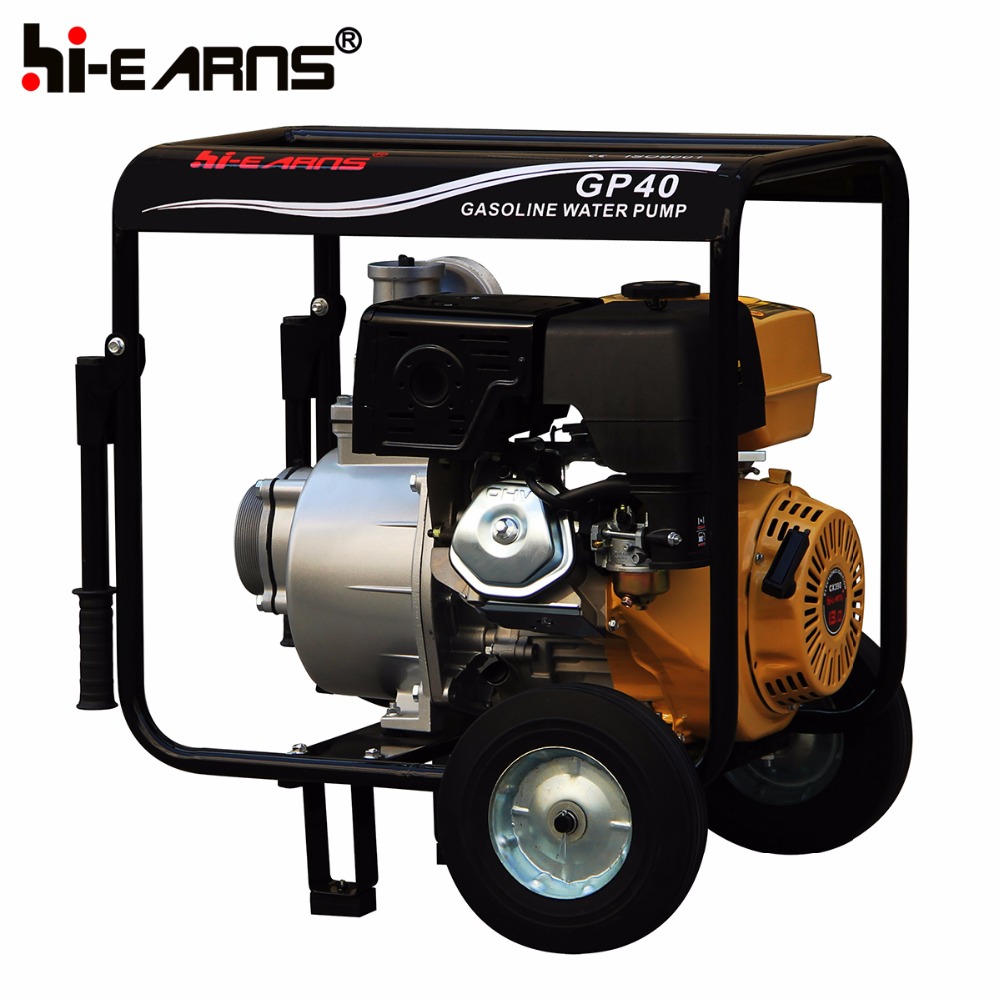

4 inch gasoline mobile water pump GP40
| WATER PUMP | Model | GP40 | |
| Suction,discharge port diameter[mm(in)] | 100(4") | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR240 | |
| Speed(rpm) | 3600 | ||
| Type | 4-stroke air-cooled OHV gasoline engine | ||
Displacement(cc) | 242 | ||
Bore*stroke(mm) | 73*58 | ||
Starting system | Recoil | ||
| Fuel tank capacity(L) | 6 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 625×455×535 | |
| Net weight(kg) | 45 | ||
| 20FT | 180 | ||
