Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP30HE
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- high pressure
- Wheel:
- Rubber solid wheel
- Design:
- New
- Noise:
- low
- Warranty:
- One Year
- Engine type:
- HR192FB
- Quality:
- Best
- Lifetime:
- Longer
- Price:
- More competitive
Supply Ability
- Supply Ability:
- 400 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:60.5X48.5X60cm
Delivery time: 20 days
One 20FT can load 120pcs.
- Port
- FOBshanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

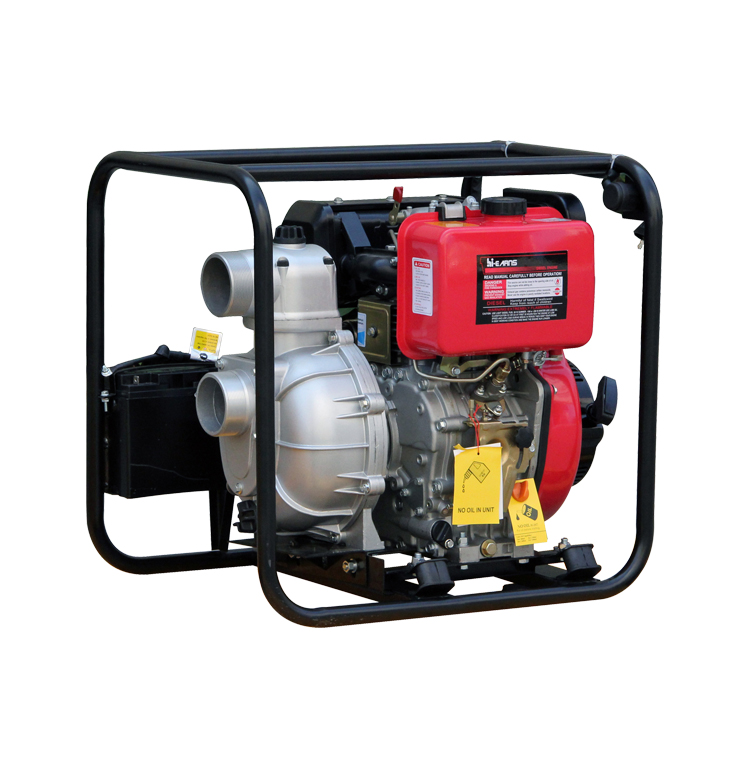

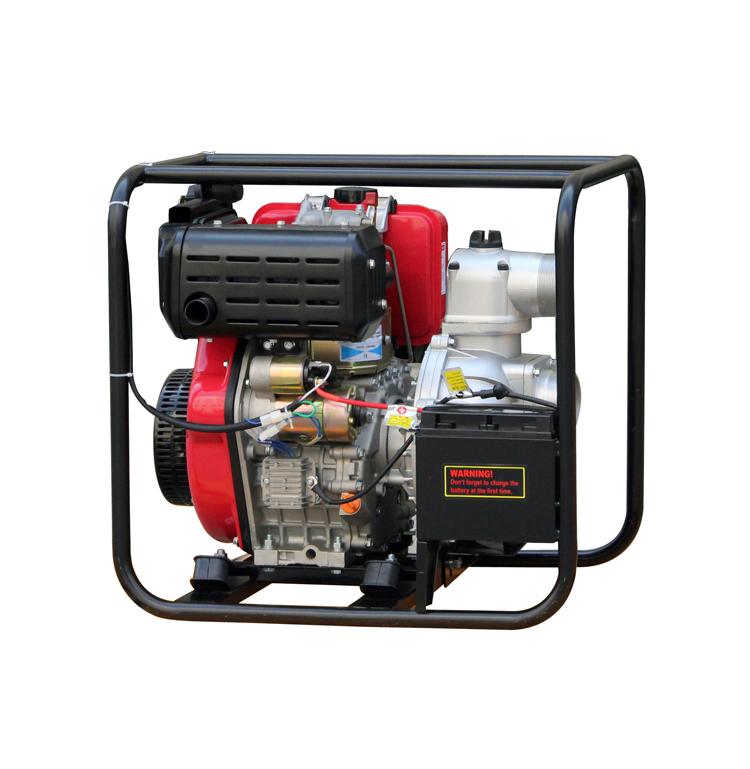

DP30HE 3inch high pressure Diesel water pump
| WATER PUMP | Model | DP30HE | |
| Suction,discharge port diameter[mm(in)] | 80(3inch) | ||
| Cont.head(m) | 70 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 38 | ||
| ENGINE | Engine model | HR192FD | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 605×485×600 | |
| Net weight(kg) | 59 | ||
| 20FT | 120 | ||
