Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP60E
- Structure:
- centrifugal
- Usage:
- Water
- Application:
- agricultural
- Power:
- Electric
- Fuel:
- Diesel, diesel
- Pressure:
- Low Pressure
- Brand name:
- Hiearns
- Engine:
- 192F
- engine type:
- 4 stroke air-cooled diesel engine
- Material:
- Aluminum
- Color:
- optional
- OEM:
- Avaliable
- starting system:
- electric
- Certificate:
- CE, ISO
- Warranty:
- 1 year
- Theory:
- Centrifugal Pump
- Standard or Nonstandard:
- Standard
Product Certification Verified
- CE Certified.
- Valid from 2014-01-08 until 2025-09-08
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 78X54X84 cm
- Single gross weight:
- 140.0 kg
- Package Type:
- CARTON BOX
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 15 20 To be negotiated

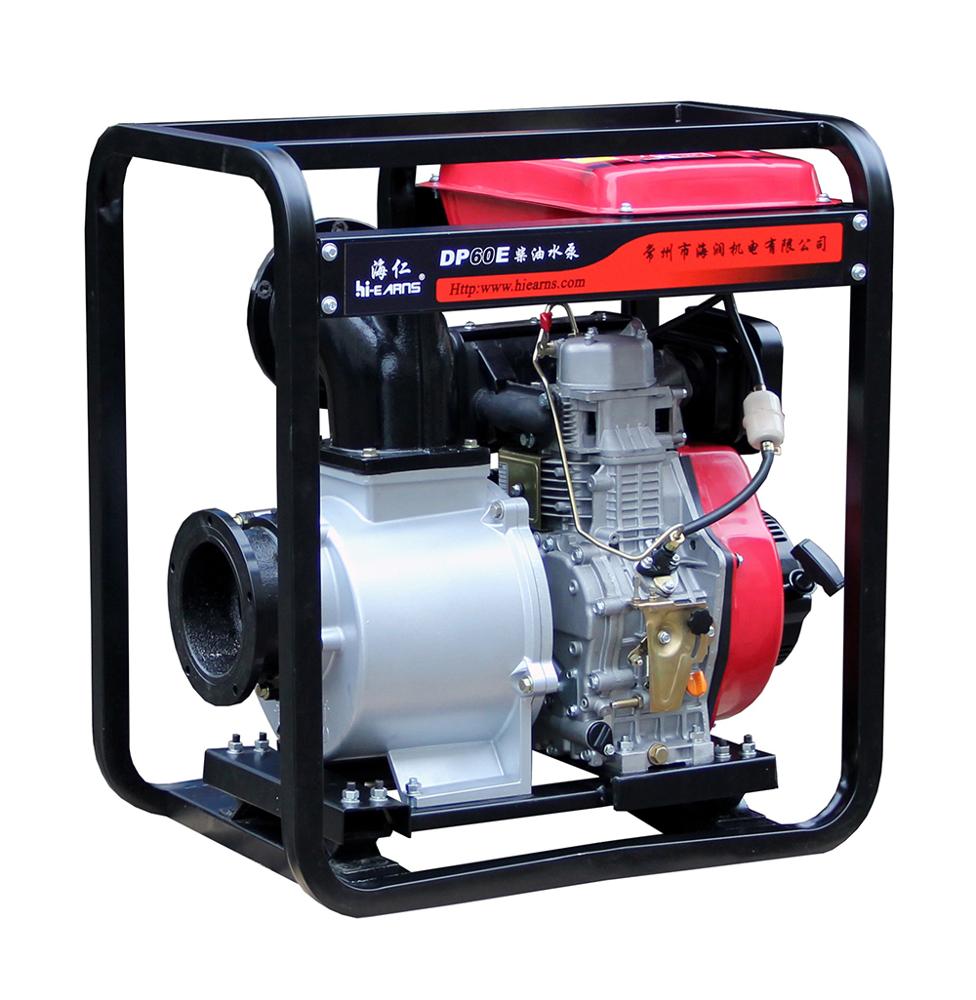

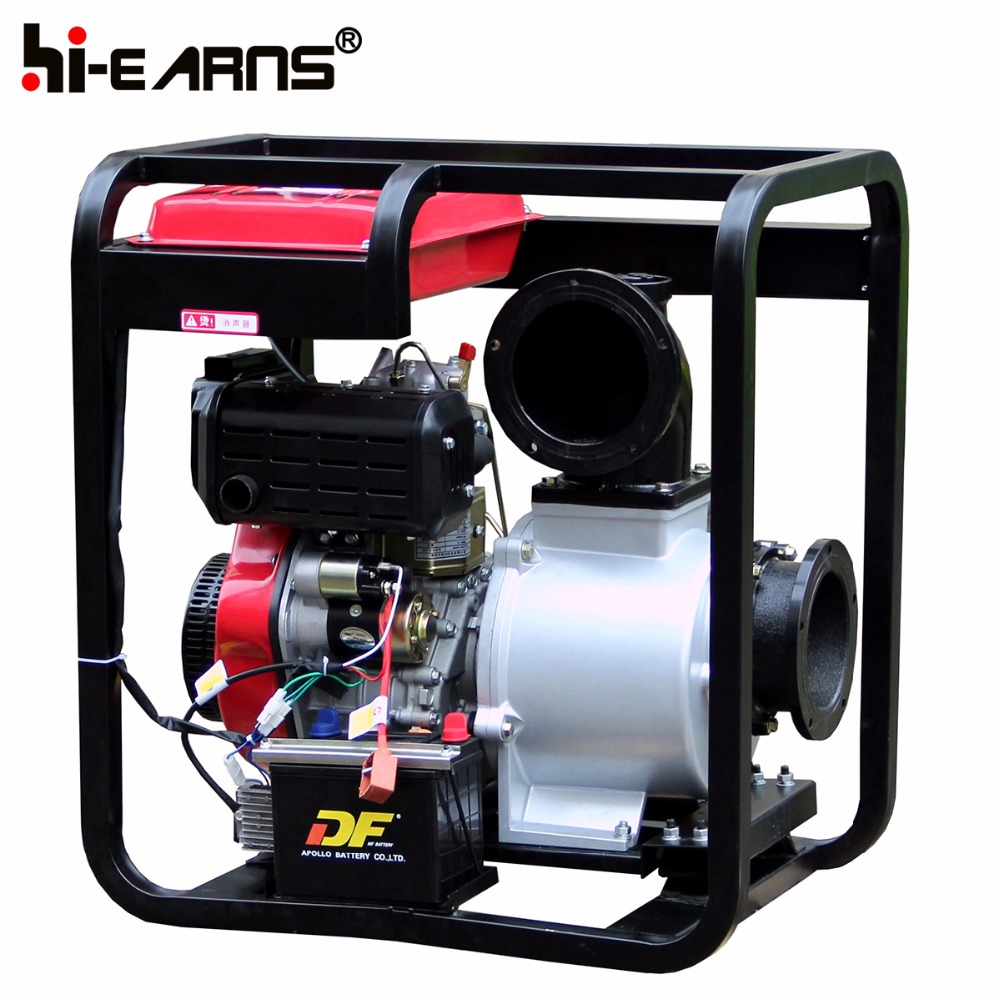

6 inch diesel farm irrigation water pump machine DP60E
| WATER PUMP | Model | DP60E | |
| Suction,discharge port diameter[mm(in)] | 150(6"") | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR192F | |
| Speed(rpm) | 3200 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 790×560×870 | |
| Net weight(kg) | 120 | ||
Advantages
1.We are manufactory covering diesel and gasoline engine, diesel generator from
2-500KW, water pump, trash pump, construction machinery like vibrator rammer,
compactor, concrete cutter, power trowel, farm machinery and so on
2.Use famous brand spare parts
3.ISO, CE, GS approved supplier
4.One year warranty, complete spare parts for after-sales services
5.Low price with good quality, reliable performance
6.Easy to start and operate, convenient to move
7.Low fuel consumption, easy maintenance
