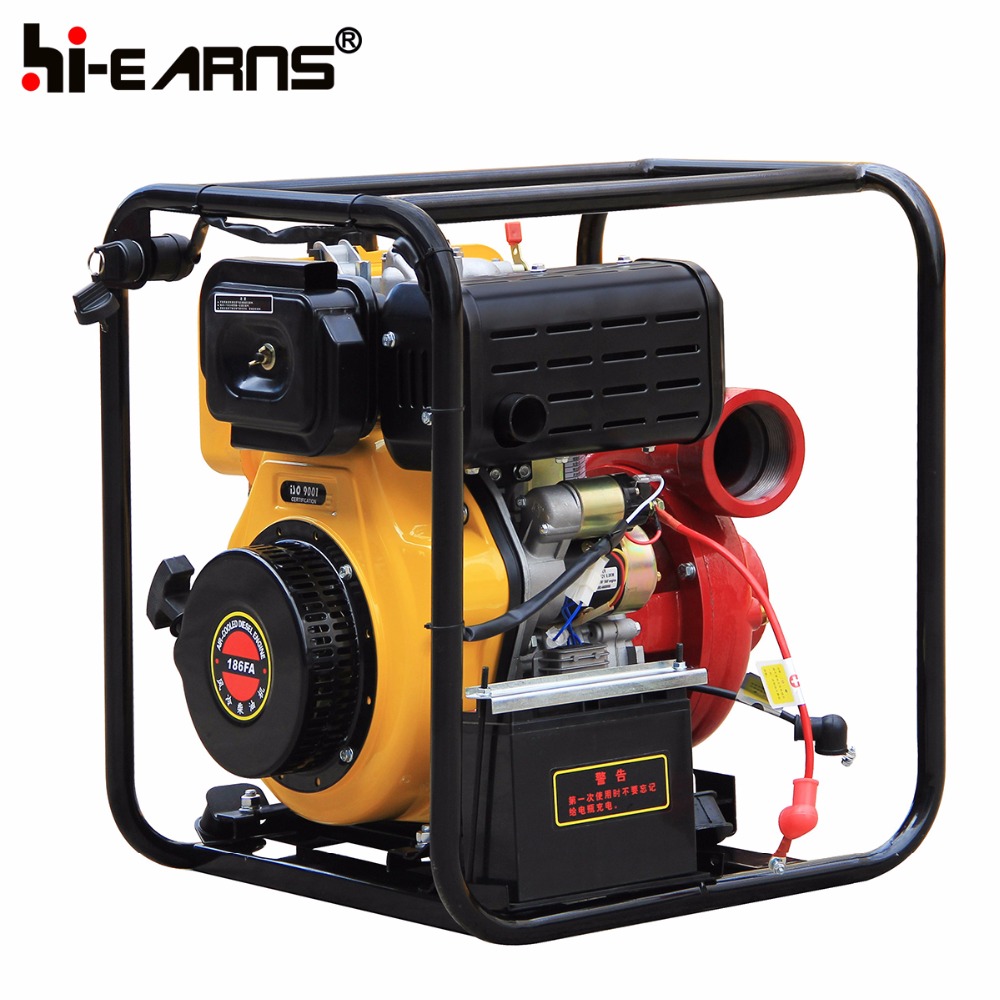

3 inch iron cast high pressure water pump for car wash DP30HCIE
| WATER PUMP | Model | DP30HCI | |
| Suction,discharge port diameter[mm(in)] | 80(3") | ||
| Cont.head(m) | 75 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 47 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86 × 72 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 540×485×615 | |
| Net weight(kg) | 82 | ||
