Home > Products > 5KW portable silent diesel generator with four side wheels and digital panel

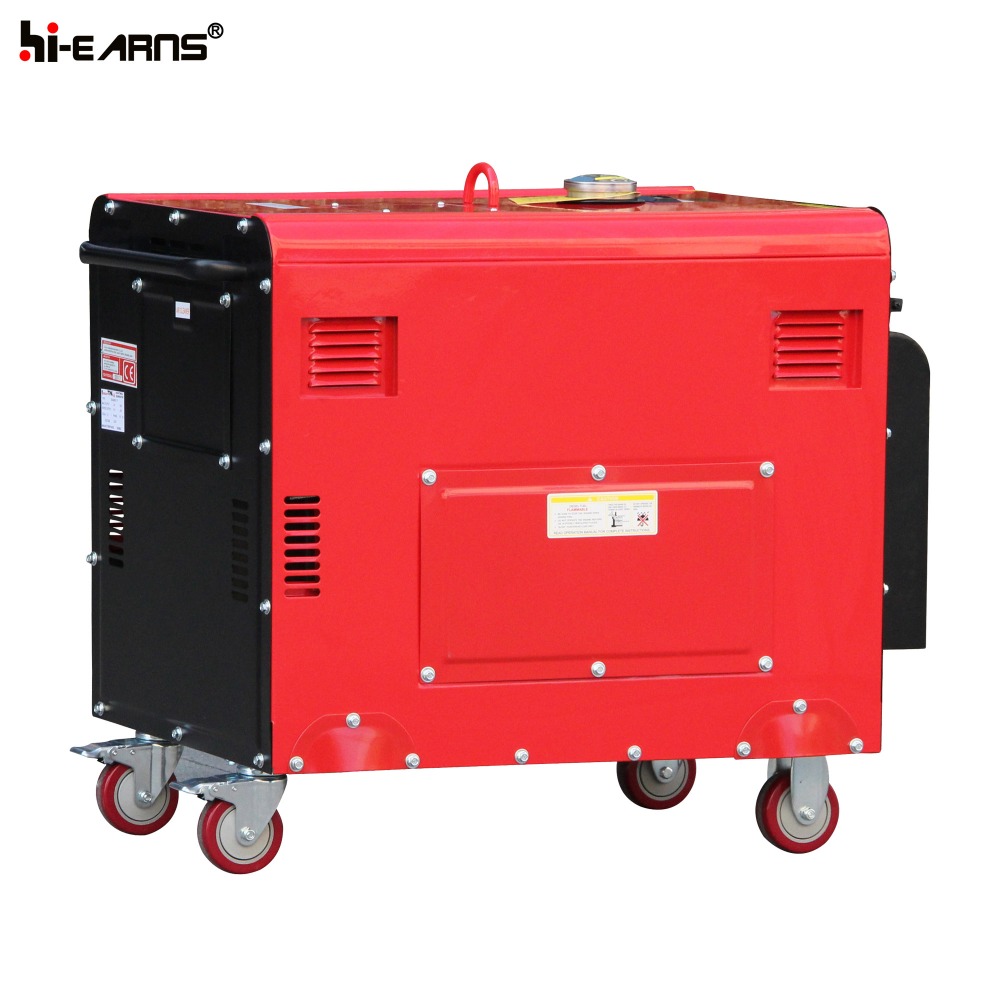

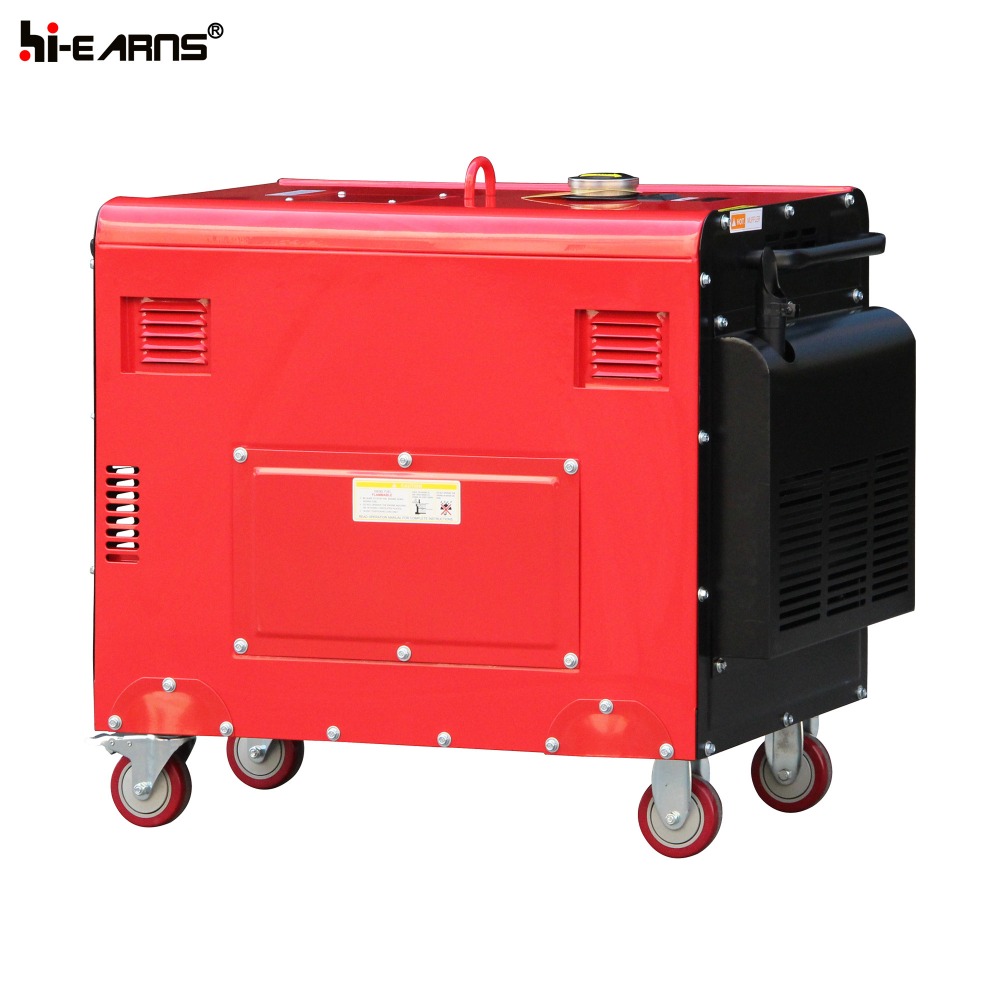

5KW portable silent diesel generator with four side wheels and digital panel

Click on the image to view the original image

Product：	views：35KW portable silent diesel generator with four side wheels and digital panel
Branch：	Hi-earns or OEM
Size：	95X56X86 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Lead Time:

Quantity(Set)	1 - 5	6 - 20	>20
Est. Time(days)	15	25	To be negotiated

5KW portable silent diesel generator with four side wheels and digital panel

Related Products

Model		DG6500SE
GENERATOR	Frequency (HZ)	50/60HZ
	Max.output (KW)	5/5.5
	Rated output(KW)	4.6/5
	Rated AC Voltage(V)	120,220,230,120/240,220/380
	Power Factor	1
	DC output (V)	12V/8.3A
	Phase	Single Phase
	Alternator Type	Self-excited,2-pole, Single alternator
	Starting System	electric
	Noise Level (Dba/7m)	68-72 Db
	Fuel Tank Capacity (L)	16
	Continuous Running Time (hr)	8.5/7.8
ENGINE	Engine Model	HR186FA
	Engine Type	single-cylinder, vertical,4-stroke air-cooled diesel engine
	Bore×Stroke	86×72
	Fuel Consumption rate g/kw/h	≤280
	Fuel	0# or -10# light diesel oil
	Lubrication Oil Volume (L)	1.65
	Combustion System	Direct Injection
STANDARD FEATURES	Voltmeter	YES
	AC Output Socket	2
	AC Circuit Breaker	YES
	Oil warning Light	YES
	Oil Alert	YES
OPTIONAL FEATURES	Dccircuit breaker	OPTIONAL
	Calculagraph	OPTIONAL
	Big wheel	OPTIONAL
	Three phase voltage	Yes
	Current meter	Yse
	ATS	OPTIONAL
	Remote control	Yes
	Welding	NO
DIMENSIONS	Dimention(LxWxH)(cm)	955676
	Net Weight(kgs)	160
	20FT loading pcs	72
