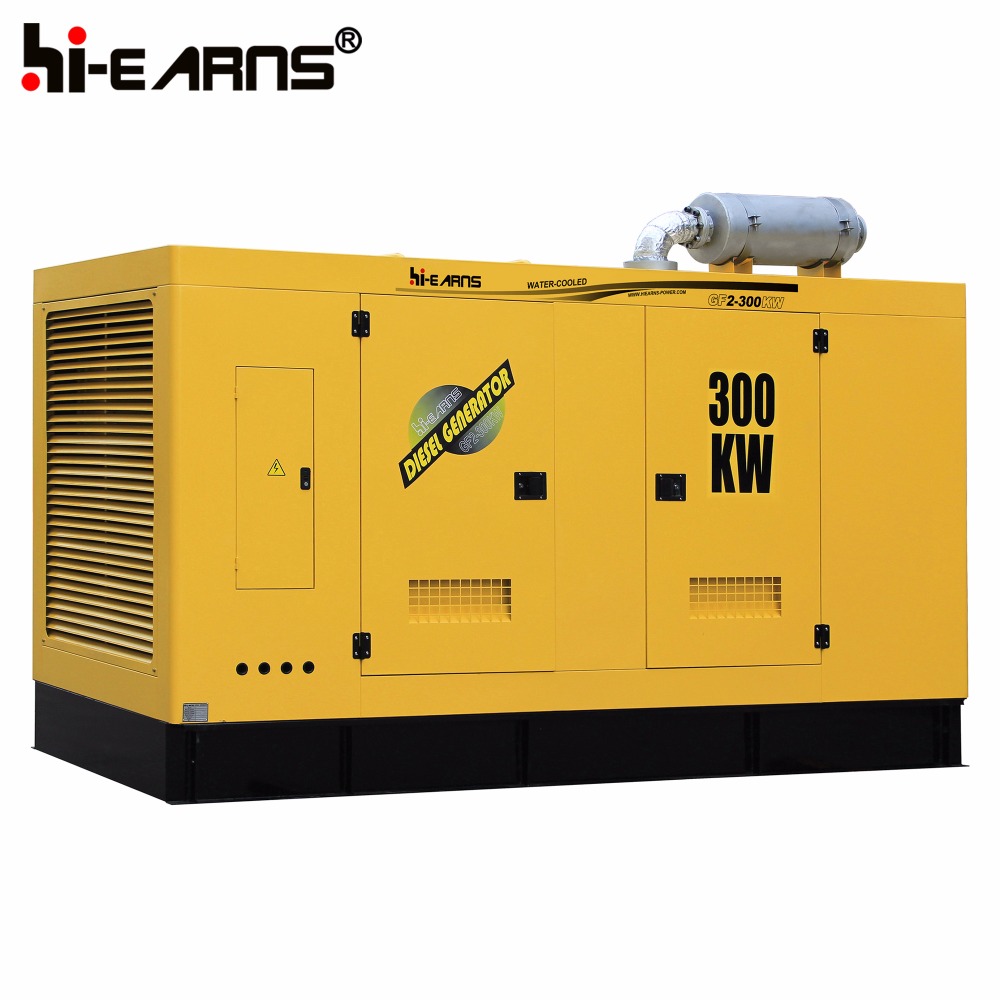

Water-cooled silent type diesel generator set(GF2- 400KVA )
| MODEL | GF2- 400KVA | |||||
| Standby Power(50HZ ) | 312KW / 390KVA | |||||
| Prime Power(50HZ ) | 300KW / 375KVA | |||||
| ENGINE DATA | ||||||
| Model | SC15G500D2 | |||||
| Diesel Generator Type | Direct injection,Direct line,Four stroke,Water-cooled | |||||
| Cylinder Number | 12 | |||||
| Bore×Stroke(mm) | 135×150 | |||||
| Compression Rate | 16:1 | |||||
| Total Displacement (L) | 25.8 | |||||
| Rated Fuel Consumption (g/kW·h) | 220 | |||||
| Timing Method | Mechanical Governor | |||||
| Rated RPM (r/min) | 1500 | |||||
| Cooling System | Fan,Water tank enforce cooling | |||||
| Start Method | Electric Start | |||||
| ALTERNATOR DATA | ||||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤630 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature(℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation | 5% | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size (mm):3150×1400×1540 | Overall Size (mm):3600×1500×1640 | |||||
| Weight :2380kg | Weight :2460kg | |||||
