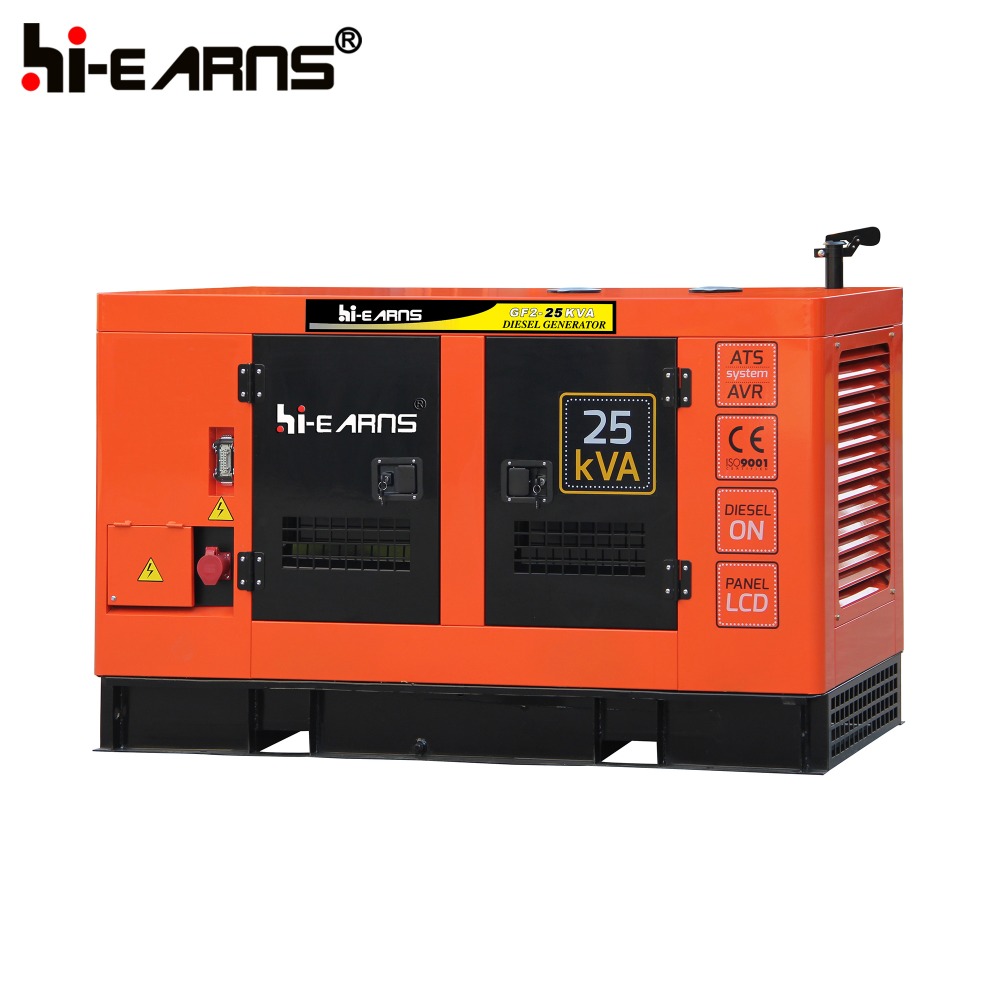

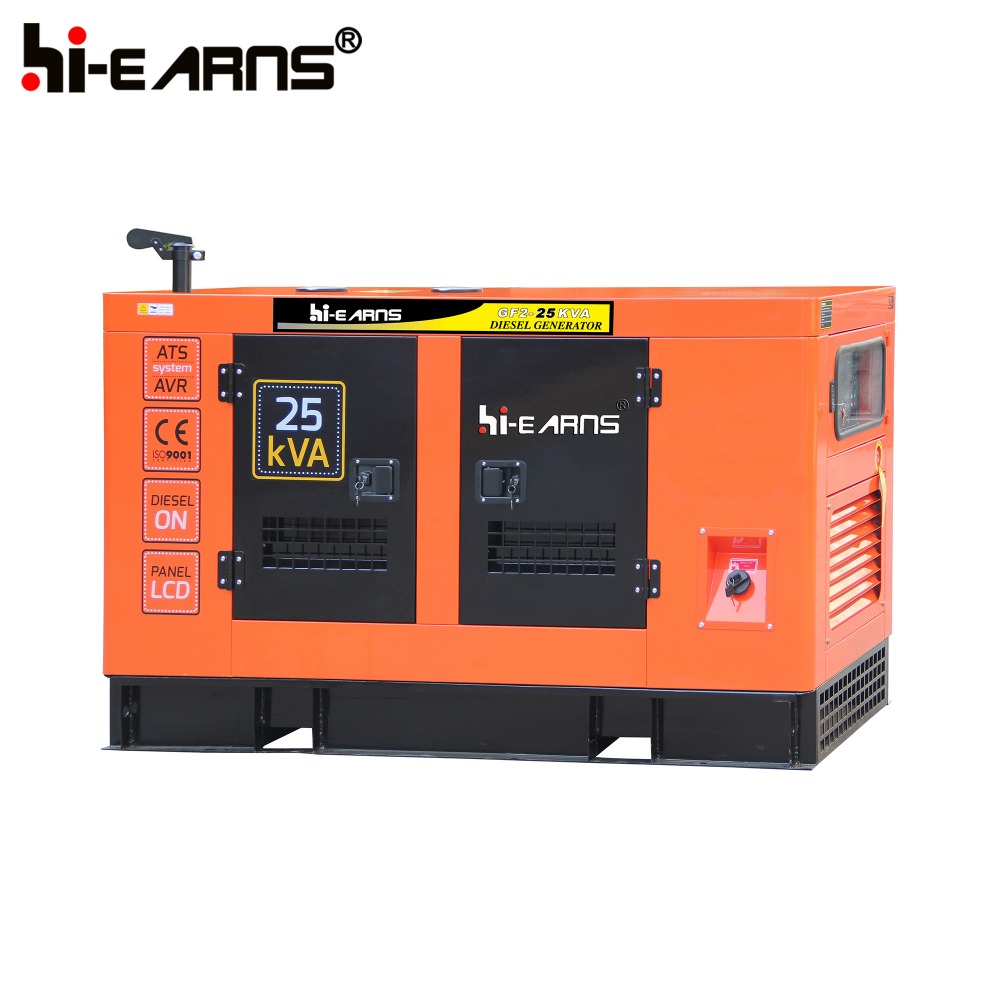

20KW silent water cooled diesel generator price
Click on the image to view the original image
Product： views：320KW silent water cooled diesel generator price
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-25KVA
Rated Power:
20KW
Output Type:
AC Three Phase
Rated Voltage:
220V/380,230/400V
Rated Current:
38A
Speed:
1500RPM
Frequency:
50HZ
type:
portable silent generator
engine:
Cummins 4B3.9-G1
alternator:
100% copper brushless
Color:
Yello, white and so on
Certificate:
CE/ISO9001
Control panel:
Smargen
Warranty:
One Year
Fuel tank:
35L
Running time:
8h
Cooling Type:
Water cooled
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Packing way: wooden box.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 15-25days.
Port
shanghai

20KW silent water cooled diesel generator



MODEL   GF2- 25KVA
Standby Power(50HZ ) 22KW / 28KVA
Prime Power(50HZ )20KW / 25KVA
ENGINE DATA
Manufacturer/Model:DCEC Cummins 4B3.9-G1,4-cycle
Air Intake System: Air natural cooled
Fuel System:A model fuel pump
Cylinder Arrangement:4 in line
Displacement:3.9L
Bore and Stroke: 102×120(mm)
Compression Ratio:16.5:1
Rated RPM:1500rpm
Max.Standby Power at Rated RPM:            27KW / 36.7HP
Governor Type:RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow:4.27m3/min
Exhaust Temperature:410°C
Max Back Pressure:10kPa
Air Intake System
Max Intake Restriction: 5kPa
Buring Capacity:1.98m3/min
Intake Flow:136m3/min
Fuel System
100%(Prime Power) Load:228 g/Kw.h
75%(Prime Power) Load:229 g/Kw.h
75%(Prime Power) Load:240 g/Kw.h
Oil System
Total Oil Capacity:11L
Oil Consumption:≤4g/kwh
Engine Oil Tank Capacity:9.5L
Oil Pressure at Rated RPM:345kPa
Cooling System
Total Coolant Capacity:21L
Thermostat:82-95°C
Max Water Temperature:104°C
Open Type Soundproof Type
Overall Size:1800(mm)×750(mm)×1350(mm)   Overall Size:2200(mm)×1000(mm)×1450(mm)
Weight:876kgWeight:1300kg







Advantages

♦ Economic and practical products from hi-earns,reliable performance.

♦ Choose hi-earns,choose a rest assured.

♦ Advanced production lines and test rooms.

♦ Complete system of IQC.

♦ Perfect QCP.





IQC

♦ Strict spare parts IQC system,to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.









Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.

♦ Test engine at least twice before ex-factory.





Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦  7 layer corrugated carton or wooden box packagine for products.







Company Information

♦ We are manufactory covering diesel and gasoline engine,diesel generator from 2-1000KW,water pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power trowel,farm machinery,high pressure washer and so on.

♦ Modern office building,we warmly welcome your visiting.

♦ We attend exhibitions domestic and overseas.Rich activities to improve work enthusiasm.

♦ ISO,CE,GS,Rohs certificates.We have been making good progress.
